Qualcast GT2826 Instruction Manual

430w grass trimmer
Hide thumbs

Advertisement

Quick Links

x
Download this manual
8
Parts
13
Lengthening the Cutting Lines
16
Replacing the Line Spool
16
Exchanging the Line Spool
Qualcast
430W Grass Trimmer
Instruction Manual
Important
- Please read these instructions fully before starting assembly
These instructions contain important information that will help you get the best from
your mower, ensuring it is assembled correctly and safely.
If you need help or have damaged or missing parts, call the Customer Helpline
on 0845 077 8888.
(Model: GT2826)
After Sales Support
UK/Ireland
Republic of Ireland
Web
www.homebasespares.co.uk
0845 077 8888
0124 77708
Nov 2012

Advertisement

loading

  Related Manuals for Qualcast GT2826

  Summary of Contents for Qualcast GT2826

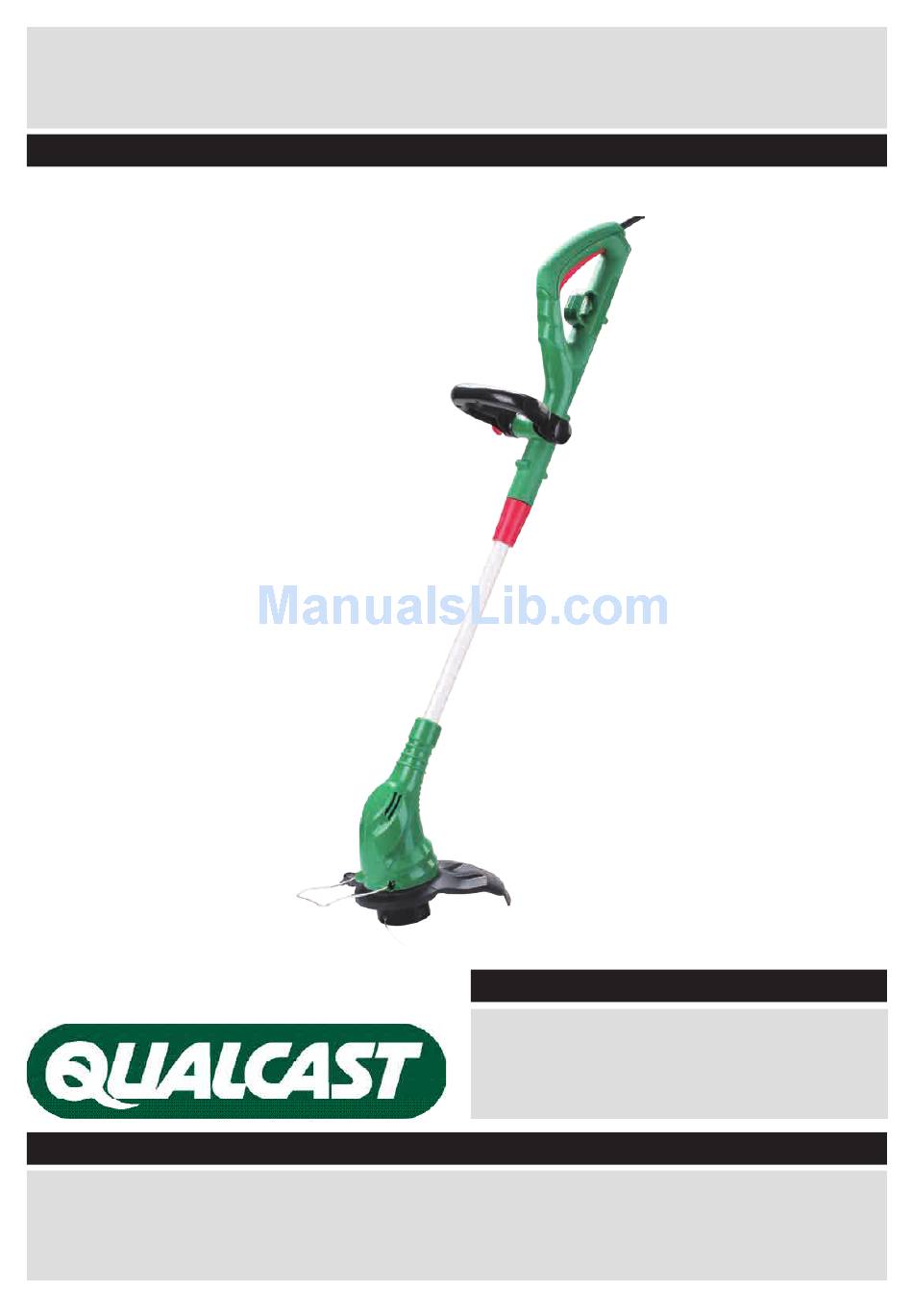

  • Page 1 Qualcast 430W Grass Trimmer (Model: GT2826) Instruction Manual After Sales Support UK/Ireland 0845 077 8888 Republic of Ireland 0124 77708 www.homebasespares.co.uk Important - Please read these instructions fully before starting assembly These instructions contain important information that will help you get the best from your mower, ensuring it is assembled correctly and safely.

  • Page 2: Table Of Contents

    Contents Safety Information ............................3 Warnings Symbols ............................3 Safety Warning .............................4 Precautionary Measures ..........................6 In the Box .................................8 Parts ................................8 Assembly ................................9 Step 1 - Assembling the Housing and Handle ...................9 Step 2 - Fitting the Guard ..........................9 Step 3 - Assembling the Additional Handle .....................10 Operating Instructions &...

  • Page 3: Safety Information

    Safety Information Important - Please read these instructions fully before starting assembly Warnings Symbols The following warning symbols appear throughout this assembly manual and indicate the appropriate safety measures you should take when assembly and operating the trimmer. Take extra care, beware of hazards. Read instruction manual.

  • Page 4: Safety Warning

    Safety Information Important - Please read these instructions fully before starting assembly Warnings Symbols (continued) IMPORTANT! When using this equipment, the following safety precautions must be followed to avoid injuries and damage. • Read all operating instructions carefully and comply with them. It is important to understand these instructions and to acquaint yourself with the machine, its correct usage and all safety requirements.
  • Page 5 Safety Information Important - Please read these instructions fully before starting assembly Safety Warning (continued) • Take care against injury from the line cutter on the grass guard for controlling the cutting line length. After adjusting or extending new cutter line, always return the trimmer to its normal operating position before switching on.

  • Page 6: Precautionary Measures

    Safety Information Important - Please read these instructions fully before starting assembly Precautionary Measures Work area • Do not expose the appliance to rain. Do not use the appliance in damp or wet conditions. • Only use the appliance in daylight or good artificial light. Personal protection •...
  • Page 7 Safety Information Important - Please read these instructions fully before starting assembly Precautionary Measures (continued) • Never use the appliance when any guard or housing element is damaged or not in place. • Ensure that the appliance will operate properly and perform its intended function. •...

  • Page 8: In The Box

    In the Box Parts line spool Power cable ON / OFF switch Aluminium shaft Line cutter Upper handle Wing nut and screw Motor head Protective cover Cable strain relief Helper handle Flower guard hook Cutting head with Locking sleeve Customer Helpline 0845 077 8888...

  • Page 9: Assembly

    Assembly Step 1 - Assembling the Housing and Handle WARNING! Before assembly, make sure that the tool is switched off and unplugged. Push the aluminium shaft into the plastic housing assembly and tighten the locking sleeve. Step 2 - Fitting the Guard Mount the protective cover by sliding it into position then use 3 screws to lock it into place.

  • Page 10: Step 3 - Assembling The Additional Handle

    Assembly Step 3 - Assembling the Additional Handle • Pull the ends of the helper handle apart and slide it over the handle seat • Attach the helper handle bolt and wing fastener Customer Helpline 0845 077 8888...

  • Page 11: Operating Instructions & Tips

    Operating Instructions & Tips Switching ON and OFF • Form a loop in the end of the extension cable, hook it through the cable strain relif hook • Connect the trimmer to the mains socket. • Ensure you have a firm footing and hold on to the trimmer with both hands. Do not rest the cutting head on the ground.

  • Page 12: Adjusting The Additional Handle

    Operating Instructions & Tips Adjusting the Additional Handle The additional handle can be set in different positions. Set the handle in such a manner that the cutting head is slightly tilting forwards when in the working position. • Loosen the wing nut and adjust the helper handle to the required position.

  • Page 13: Lengthening The Cutting Lines

    Operating Instructions & Tips Lengthening the Cutting Lines Cutting will be poor with short or worn out lines. Check whether the line spool still holds sufficient lines when the cutting performance declines. Always disconnect the plug from the mains socket beforehand! Line spool changing is described in “Replacing the line spool” in the chapter on cleaning and maintenance.

  • Page 14: Cutting Grass

    Operating Instructions & Tips Cutting grass Cut the grass by swaying the trimmer sideways to the right and left. • Cut tall grass by a series of levels from top to bottom. Vertical Cut / Lawn Edge Trimming For edging, release the locking sleeve in an clockwise direction.

  • Page 15: Maintenance

    Maintenance Cleaning and Maintenance Always disconnect the plug from the mains socket before working on the trimmer. Any work that is not described in these Instructions must be carried out by a competent repair shop. Only use original parts and be very careful with the line cutter during installation work.

  • Page 16: Replacing The Line Spool

    Maintenance Replacing the Line Spool • Disconnect the plug from the mains socket. • Turn over the trimmer so that the cutting head (11) is facing upwards. • Simultaneously press the two retaining tabs on either side of the cover (11) and remove the cover (17).

  • Page 17: Troubleshooting

    Troubleshooting General Troubleshooting If you feel that your trimmer is not working correctly, follow the instruction below. If this does not solve the problems, please contact a competent repair agent. WARNING! Before proceeding, switch off and unplug. Check that the spool housing can rotate freely. Carefully clean it if necessary. Check that the cutting line does not protrude more than 8cm from the spool housing.
