Energy SD300

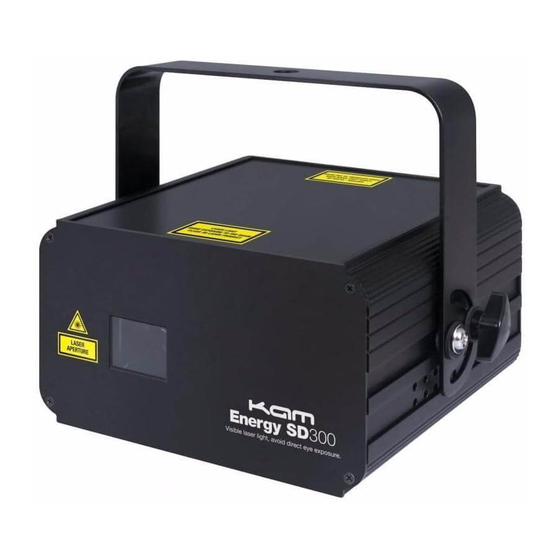

Multicolour animation laser with SD card input for shows
M
A
N
U
A
L
V
E
R
S
I
O
N
1
.
0
0 9 - 1 6
For the latest instruction manual updates and information on the entire Kam range visit:
www.kam.co.uk
Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ
Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com
If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.
Due to continuous product development, specifications and appearance are subject to change.
© Copyright Lamba plc. E&OE.
Advertisement
Related Manuals for KAM Energy SD300
Summary of Contents for KAM Energy SD300
- Page 1 For the latest instruction manual updates and information on the entire Kam range visit: www.kam.co.uk Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.
- Page 2 Thank you for purchasing this Kam product, we are sure that it will serve you for many years to come. To optimise it’s performance, please read these instructions carefully to familiarise yourself with the basic operations of the unit. Please retain them for future reference.This unit has been tested at the factory before being shipped to you. To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.
- Page 3 Laser safety warnings… Potential laser injury hazard exists with this product! Please read these instructions carefully, which include important information about installation, safe use and service! Caution Avoid direct eye contact with laser light. Never intentionally expose your eyes or others to direct laser radiation. Caution It is illegal and dangerous to shine any laser at aircraft.
- Page 4 What is included in the package 1 x Kam Energy SD300 laser unit 1 x IEC power cable 1 x safety key 1 x remote interlock key 1 x user manual Front and Rear panels...
-
Page 5: Audio Mode
Front panel features Number Feature Function Laser aperture The laser light is emitted from here. Never look directly into the hole when the unit is on Rear panel features Number Feature Function Key lock Supplied key switches the unit on and off Remote interlock key Safety feature - removal of remote interlock key shuts down all of the laser diodes DMX out... - Page 6 Micro SD card operation If a micro SD card is inserted into the laser’s SD card slot, the following 2 modes will appear in the projected menu: PRG MODE - program mode This will play whatever ILD files are on the SD card (inside the first folder) in a rotation. To ‘move up’...
-
Page 7: Value Description
DMX address setting When controlling lasers with a DMX controller, each unit must be set with a specific DMX address. When the laser receives a signal, it will receive the channel control signal from the DMX512 controller. You can choose to set multiple units with the same DMX address or you can set every unit with its own DMX address. If multiple units are set with the same DMX address, they will receive DMX signal from this DMX address. - Page 8 0-125 Manually adjust Y position 126-185 Moves circle from up to down automatically Y position 186-255 Jumps circle from down to up automatically (ensure CH1 is set to Manual DMX mode) 226-245 Auto jumping 246-255 Sound activated jumping 0-10 No change 11-87 Manually adjust size Zoom +/-...
