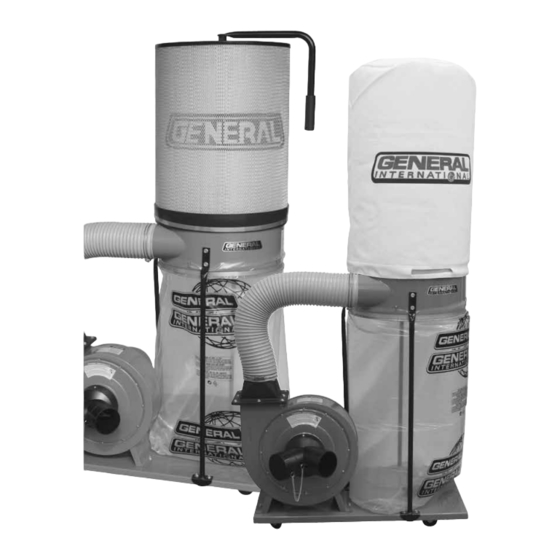

SETUP & OPERATION MANUAL
FEATURES
Totally enclosed, fan cooled, permanently
lubricated motor. Designed for industrial
applications with a continuous duty rating.
Heavy-duty construction, mounted on four
swivel casters, allowing total mobility and
stability.
Safety switch with key. Unit cannot be start-
ed when key is removed from the switch.
Precision spin-balanced impeller for
smooth operation and minimal noise.
Re-usable clear plastic collector bag for
improved dust collection efficiency.
5" heavy-duty PVC hose between body of
fan and collector.
Collector body mounted on 3 heavy-duty
rods.
Equipped with 2 micron filter bag. (Not
included on "CF" canister filter model)
Quick-release bag clamps with metal
straps.
Intake screen prevents larger pieces from
jamming in the impeller.
SPECIFICATIONS
INLET DIAMETERS
(1) 6"
(152 mm)
Y FITTING INLET
(2) 4"
(102 mm)
AIRFLOW CAPACITY
1250 CFM
BLOWER WHEEL DIAMETER
12-3⁄4"
(323 mm)
SOUND RATING
80 TO 85 dB
BAG DIAMETER
20"
(508 mm)
BAG CAPACITY
42 GAL
(190.9 L)
STATIC PRESSURE
9" OF WATER
MOTOR
5
20
1.
HP, 1
V, 1 Ph, 14 A
OVERALL DIMENSIONS (L x W x H)
38" x 31 1/2" x 76"
(970 x 800 x 1930 mm) -
#10-105 M1
38" x 31 1/2" x 71"
(970 x 800 x 1800 mm) -
#10-105CF M1
WEIGHT
106 LBS (48 kg)
-
#10-105 M1
130 LBS
(59 kg) -
#10-105CF M1
1.5 HP DUST COLLECTOR
MODEL
#10-105 M1
#10-105CF M1
VERSION 2_REVISION 1 - January 2015
© COPYRIGHT GENERAL INTERNATIONAL
Advertisement
Related Manuals for General 10-105 M
Summary of Contents for General 10-105 M
- Page 1 #10-105 M1 38” x 31 1/2” x 71” (970 x 800 x 1800 mm) - #10-105CF M1 WEIGHT 106 LBS (48 kg) #10-105 M1 130 LBS (59 kg) - #10-105CF M1 VERSION 2_REVISION 1 - January 2015 © COPYRIGHT GENERAL INTERNATIONAL...
- Page 2 GENERAL® INTERNATIONAL 8360 Champ-d’Eau, Montreal (Quebec) Canada H1P 1Y3 Telephone (514) 326-1161 • Fax (514) 326-5555 • www.general.ca THANK YOU for choosing this General International 10-105 M1 or 10-105CF ® M1 1 1⁄2 HP Dust Collector. This dust collector has been carefully tested and inspected before shipment and if properly used and maintained, will provide you with years of reliable service.
- Page 3 2 years (24 months) from the date of purchase. General® International agrees to repair or replace any part or component which upon examination, proves to be defective in either workmanship or mate- rial to the original purchaser during this 2-year warranty period, subject to the “conditions and...
- Page 4 To help ensure safe operation, please take a moment to learn the machine’s applications and limita- tions, as well as potential hazards. General® International disclaims any real or implied warranty and holds itself harmless for any injury that may result from improper use of its equipment.
- Page 5 ELECTRICAL REQUIREMENTS BEFORE CONNECTING THE MACHINE TO THE POWER SOURCE, VERIFY THAT THE VOLTAGE OF YOUR POWER SUPPLY CORRE- SPONDS WITH THE VOLTAGE SPECIFIED ON THE MOTOR I.D. NAMEPLATE. A POWER SOURCE WITH GREATER VOLTAGE THAN NEEDED CAN RESULT IN SERIOUS INJURY TO THE USER AS WELL AS DAMAGE TO THE MACHINE. IF IN DOUBT, CONTACT A QUALIFIED ELECTRICIAN BEFORE CONNECTING TO THE POWER SOURCE.
-
Page 6: Fan/Motor Assembly
1 1/2 HP DUST COLLECTOR 10-105 M1 or 10-105CF M1 IDENTIFICATION OF MAIN PARTS AND COMPONENTS A- HOSE G- FILTER BAG (10-105 M1 ONLY) B- DRUM H- CANISTER FILTER (10-105CF M1 ONLY) C- FAN/MOTOR ASSEMBLY COLLECTOR BAG D- BASE J- BELT CLAMP E- VERTICAL SUPPORT RODS K- HOSE CLAMP F- HOSE INLET (“Y”... -
Page 7: Table Of Contents
Carefully unpack and remove the unit and its components from its shipping container and check for missing or damaged items as per the list of contents below. NOTE: Please report any damaged or missing items to your GENERAL® INTERNATIONAL distributor immediately. LIST OF CONTENTS DRUM ................ - Page 8 SHOP PLACEMENT / SPACE CONSIDERATIONS Because each shop situation is unique, the following fac- Consider the space requirements for the unit and its use tors should be taken into consideration when determining when deciding where to install your dust collector in your shop.
- Page 9 ASSEMBLY INSTRUCTIONS • SERIOUS PERSONAL INJURY COULD OCCUR IF YOU CONNECT THE MACHINE TO THE POWER SOURCE BEFORE YOUR HAVE COMPLETED THE SET UP PROCESS. DO NOT HOOK-UP THE MACHINE TO A POWER SOURCE UNTIL INSTRUCTED TO DO SO. • BE SURE TO READ AND UNDERSTAND THIS ENTIRE MANUAL. •...
- Page 10 STEP 5 - ATTACH THE BAG HANGER TO THE DRUM STEP 6 - ATTACH THE GASKET AND DUST OUTLET TO FAN/ MOTOR ASSEMBLY – MODEL 10-105 M1 only Note: Do not overtighten the bolts or the threaded holes in the base will strip and/or the gasket will squeeze out and the outlet will crack.
- Page 11 STEP 11 - FIT THE CANISTER FILTER ONTO THE DRUM STEP 12 - INSTALL FOAM GASKET (IF NEEDED) – MODEL 10-105CF M1 ONLY If you have model 10-105 M1 with filter bag skip ahead to Basic assembly is now complete and your dust col- step #12.
- Page 12 Periodically inspect the power cord and plug for damage. If necessary replace the power cord and plug at the first signs of visible damage. • Use only recommended parts and accessories. The use of parts or accessories NOT recommended by GENERAL® INTERNATIONAL may result in a risk of injury or damage to the machine.
- Page 13 CLEANING OR REPLACING THE FILTER BAGS (10-105 M1 only) TURN THE SWITCH TO THE “OFF” POSITION AND UNPLUG THE UNIT FROM THE POWER SOURCE BEFORE CLEANING OR REPLACING FILTER BAGS OR BEFORE PERFORMING ANY MAINTENANCE. Tip/Hint: To avoid potentially costly down-time, consider keeping a spare filter bag on-hand and nearby for use if needed. After a period of time depending on the frequency of use, the filter bag may become clogged and affect airflow as well the overall efficiency of the unit.
-
Page 14: Collector Bag
RECOMMENDED OPTIONAL ACCESSORIES We offer a large variety of products for increased convenience, productivity, accuracy and safety when using your dust collector. Here’s a small sampling of optional accessories available from your local General International dealer. For more information about our products, please visit our website at www.general.ca 4”... - Page 15 * Not supplied/required for model # 10-105CF M1...
-
Page 16: Gasket
PARTS LIST 10-105 M1/10-105CF M1 PART N0. DESCRIPTION SPECIFICATIONS 10105-01 CASTER 10105-02A BASE PLATE 10105-03 FLANGE BOLT 5/16” X 1/2” 10105-05A FAN HOUSING 10105-06A ALUMINUM IMPELLER 10105-07 IMPELLER WASHER 10105-08A CAP SCREW M6 X 30 (LH) 10105-09A 6” INLET COVER 3/16”... - Page 17 Canister supplied on Model 10-105CF M1 PARTS LIST 10-106C PART # DESCRIPTION SPEC. PART # DESCRIPTION SPEC. 10106C-25 CANISTER FILTER DIA.500MM 10106C-38 ROUND HEAD SCREW M5X6 10106C-26 5/16” 10106C-39 FIXING PLATE 10106C-40 BOTTON FIXING PLATE 10106C-27 SET SCREW 5/16”X3/4” 10106C-41 PHILLIPS HEAD SCREW M5X15 10106C-28...
- Page 18 Models 10-105 M1 & 10-105CF M1 8360 Champ-d’Eau, Montreal (Quebec) Canada H1P 1Y3 Tel.: (514) 326-1161 Fax: (514) 326-5565 - Fax: (514) 326-5555 - Parts & Service / Order Desk orderdesk@general.ca www.general.ca Follow us:...
