T&S B-3990 Series Installation And Maintenance Instructions Manual

Modular waste drain

Advertisement

Quick Links

Limited One Year Warranty
T&S warrants to the original purchaser (other
than for purposes of resale) that such product is
free from defects in material and workmanship for
a period of one (1) year from the date of purchase.
During this one-year warranty period, if the product
is found to be defective, T&S shall, at its options,
repair and/or replace it. To obtain warranty service,
products must be returned to...
T&S Brass and Bronze Works, Inc.
Attn: Warranty Repair Department
2 Saddleback Cove
Travelers Rest, SC 29690
Shipping, freight, insurance, and other
transportation charges of the product to T&S and
the return of repaired or replaced product to the
purchaser are the responsibility of the purchaser.
Repair and/or replacement shall be made within a
reasonable time after receipt by T&S of the returned
product. This warranty does not cover Items which
have received secondary fi nishing or have been
altered or modifi ed after purchase, or for defects
caused by physical abuse to or misuse of the
product, or shipment of the products.
Any express warranty not provided herein, and
any remedy for Breach of Contract which might
arise, is hereby excluded and disclaimed. Any
implied warranties of merchantability or fi tness
for a particular purpose are limited to one year in
duration. Under no circumstances shall T&S be
liable for loss of use or any special consequential
costs, expenses or damages.
Some states do not allow limitations on how
long and implied warranty lasts or the exclusion or
limitation of incidental or consequential damages,
so the above limitations or exclusions may not apply
to you. Specifi c rights under this warranty and other
rights vary from state to state.
P/N: 098-017918-45
Date: 04-01-10
Drawn: TEH
Checked: GEF 04-09-10
Approved: JHB 04-20-10

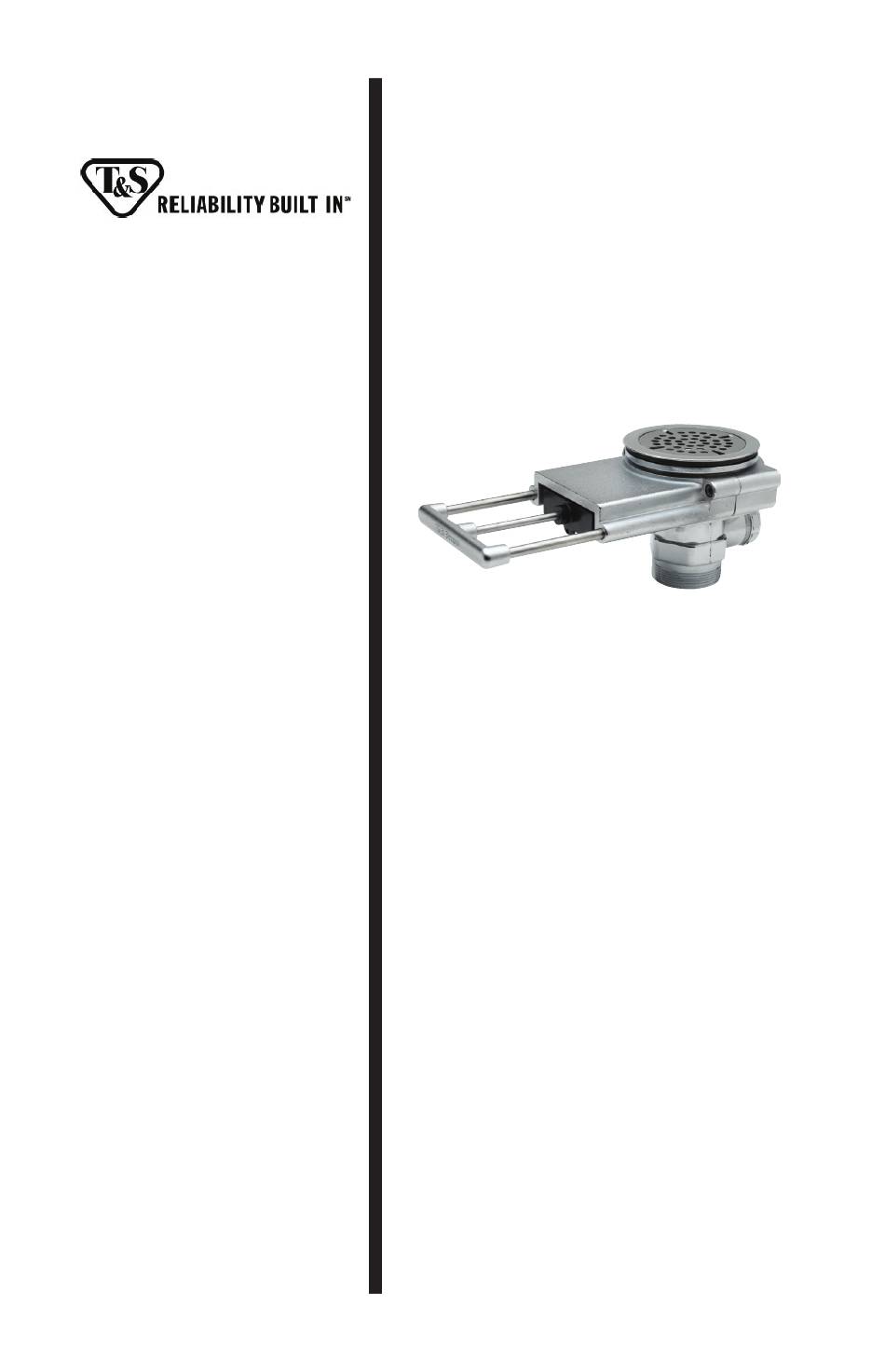

Installation and
Maintenance
Instructions
B-3990 Series
Modular Waste Drain
(PATENTS PENDING)

Advertisement

loading

Summary of Contents for T&S B-3990 Series

  • Page 1 This warranty does not cover Items which have received secondary fi nishing or have been altered or modifi ed after purchase, or for defects B-3990 Series caused by physical abuse to or misuse of the product, or shipment of the products.
  • Page 2 Exploded View 13-A 13-B...
  • Page 3 Part Number Guide B-3990 Series Modular Waste Drain Replacement Parts Head Asm, Overfl ow Tube 011356-45 Tube, Overfl ow Elbow 011355-45 Nut, Coupling for Overfl ow Tube Connection 010391-45 Ferrule, Overfl ow Tube 010390-45 Strainer, 3-1/2” Snap-In Removable 010386-45 Vandal Resistant Screw, 8-32 x 1/4” S.S.
  • Page 4: Installation

    General Instructions Introduction The Series B-3990 Modular Waste Drains are designed to fi t sinks with a 3-1/2” drain opening. Versions with and without overfl ow tubes and various outlets adapters are available. Series B-3990 Waste Drains operate by a push/pull motion of the handle to close and open the drain.
  • Page 5 General Instructions 1. Remove the Snap-in Strainer and unscrew the Sink Flange Assembly from the Waste Drain Assembly. Apply a bead of Plumber’s Putty to the bottom of the Sink Flange Assembly where it contacts the sink bowl. (Keep the Drain Guard installed in the Sink Flange Assembly at all times.
  • Page 6: Maintenance

    Figure 4 Cap Screws Under normal operation, the anticipated service parts of a B-3990 Series waste drain are the Valve Body Assembly and/or Valve Body Seals. These parts can usually be ser- viced or replaced without removing the waste drain from the sink or disconnecting the drain line from the waste drain.
  • Page 7 T&S logo visible from below. Install the new seals and assemble as in step 8. Clearing a clogged drain line thru a B-3990 Series waste drain Eff orts should be made to clear clogged drain lines thru clean-out ports in the drain system.
  • Page 8 RELATED T&S BRASS PRODUCT LINE B-3940 Series B-3950 Series Rotary Waste Valve Rotary Waste Valve 3” Sink Opening 3-1/2” Sink Opening B-3960 Series B-3970 Series Waste Drain Valve Waste Drain Valve 3” Sink Opening 3-1/2” Sink Opening T&S BRASS AND BRONZE WORKS, INC. A fi...

This manual is also suitable for:

B-3940 seriesB-3950 seriesB-3960 seriesB-3970 series
