Limited One Year Warranty
T&S warrants to the original purchaser (other
than for purposes of resale) that such product
is free from defects in material and workman-
ship for a period of one (1) year from the date
of purchase. During this one-year warranty pe-
riod, if the product is found to be defective, T&S
shall, at its options, repair and/or replace it. To
obtain warranty service, products must be re-
turned to...
T&S Brass and Bronze Works, Inc.
Attn: Warranty Repair Department
2 Saddleback Cove
Travelers Rest, SC 29690
Shipping, freight, insurance, and other trans-
portation charges of the product to T&S and
the return of repaired or replaced product to the
purchaser are the responsibility of the pur-
chaser. Repair and/or replacement shall be
made within a reasonable time after receipt by
T&S of the returned product. This warranty does
not cover Items which have received second-
ary finishing or have been altered or modified
after purchase, or for defects caused by physi-
cal abuse to or misuse of the product, or ship-
ment of the products.
Any express warranty not provided herein,
and any remedy for Breach of Contract which
might arise, is hereby excluded and disclaimed.
Any implied warranties of merchantability or fit-
ness for a particular purpose are limited to one
year in duration. Under no circumstances shall
T&S be liable for loss of use or any special con-
sequential costs, expenses or damages.
Some states do not allow limitations on how
long and implied warranty lasts or the exclu-
sion or limitation of incidental or consequential
damages, so the above limitations or exclusions
may not apply to you. Specific rights under this
warranty and other rights vary from state to
state.
P/N:
098-003116-45 Rev 3
Date:
11-08-01
Drawn:
TEH
Checked:
DLT 11-27-01
Approved:
MVW 12-11-01

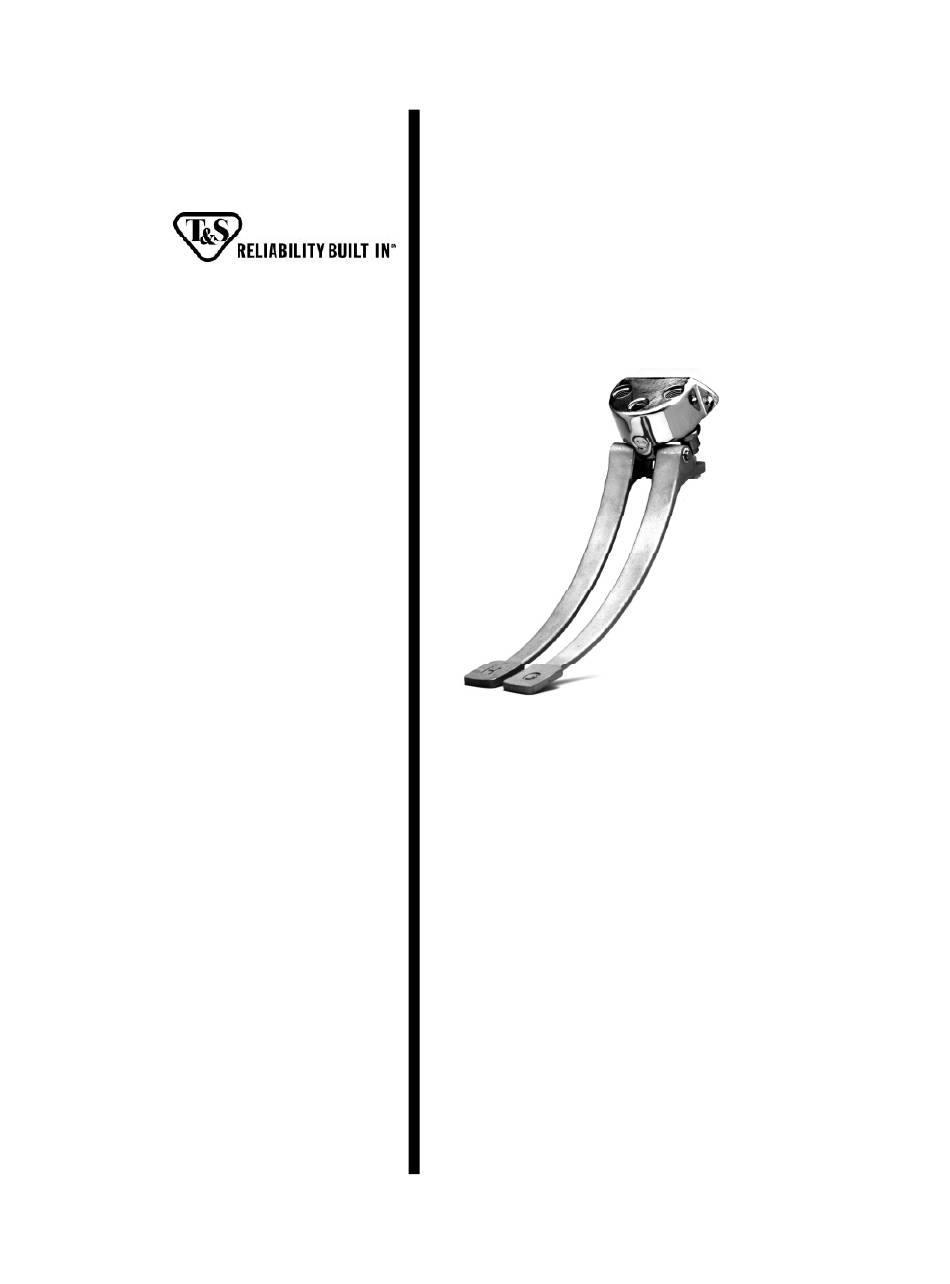

Installation and
Maintenance
Instructions

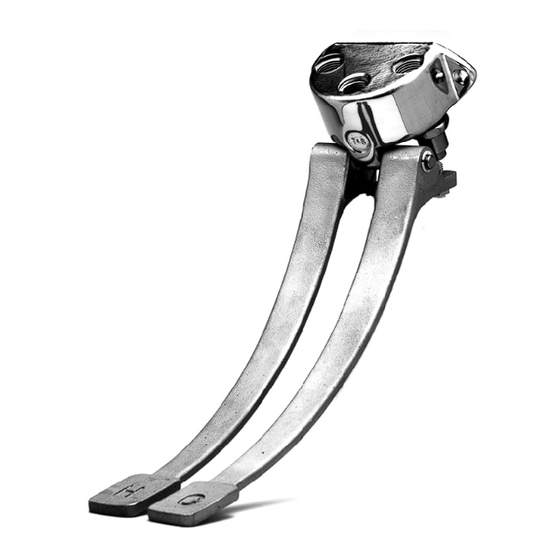

WALL MOUNTED
FOOT PEDAL VALVE
B-0504 and B-0508
Deutsch:
Installations- und
Wartungsanleitungen
Español:
la Instalación y las
Instrucciones de
Mantenimiento
Français:
les Instructions
d'Installation et
d'Entretien
Advertisement
Table of Contents
Related Manuals for T&S B-0504
Summary of Contents for T&S B-0504
- Page 1 FOOT PEDAL VALVE might arise, is hereby excluded and disclaimed. Any implied warranties of merchantability or fit- B-0504 and B-0508 ness for a particular purpose are limited to one year in duration. Under no circumstances shall T&S be liable for loss of use or any special con- sequential costs, expenses or damages.
-
Page 2: Exploded View
Exploded View * Some items are listed for instructional purposes and may not be sold as separate parts. - Page 3 Part Number Guide Double Pedal Valve Assembly Body, Double Pedal Shaft Socket Plug Screw, Mounting 003749-45 Screw, S.S. Pedal Spring Retain Spacer, Pedal Spring Spring, LH Pedal Hot 000886-45 Spring, RH Pedal Cold 000887-45 Pad, Nylon Screw, Nylon Pad 012523-45 Nut, Adjustable Screw Lock 000952-45 Set Screw, Adjustable...
-
Page 4: General Instructions
General Instructions Installation: 1. Shut off water supply and drain lines. 2. Mount no.1 assembly to wall with two no.4’s, no more than 8-7/8” [21 cm] from floor to center of mounting holes. (See illustration.) Note: It is strongly recommended that each supply line be equipped with a hammer arrester installed per manufacturer’s instructions. -
Page 5: Instrucciones Generales
Instrucciones Generales Instalación: 1. Cierre el surtido de agua y desagüe las tuberias. 2. Monte el ensamble No.1 a la pared con dos partes No.4, a una distancia de no más de 8-7/8” [21 cm] de el piso hasta el centro de los huecos de montadura. -
Page 6: Instructions Générales
Instructions Générales L’Installation: 1. Fermer la réserve de l’eau et égoutter la tuyauterie. 2. Monter l’assemblage Nº.1 au mur avec deux Nº.4’s, pas plus de 21cm du plancher au centre des trous montants. (Voir l’illustration). Noter: On lui recommande vivement que chaque canalisation d’alimentation devrait être équipée d’un “arrête-vibrations”. -
Page 7: Allgemeine Anleitungen
Allgemeine Anleitungen Installation: 1. Wasserzulauf absperren und Leitungen entleeren. 2. Garnitur Nr. 1 mit zwei Schrauben Nr. 4 nicht höher als 21 cm vom Fußboden bis zur Mitte der Montagelöcher entfernt anbringen (siehe Abbildung). Achtung: Es empfiehlt sich in jeder Wasserleitung einen Rückschlag Arrettierer einzubauen. - Page 8 RELATED T&S BRASS PRODUCT LINE B-0507 SINGLE PEDAL VALVE, FLOOR MOUNTED T&S BRASS AND BRONZE WORKS, INC. A firm commitment to application-engineered plumbing products 2 Saddleback Cove, P.O. Box 1088, T & S Brass-Europe Travelers Rest, SC 29690 ‘De Veenhoeve’ Phone: (864) 834-4102 Oude Nieuwveenseweg 84...
