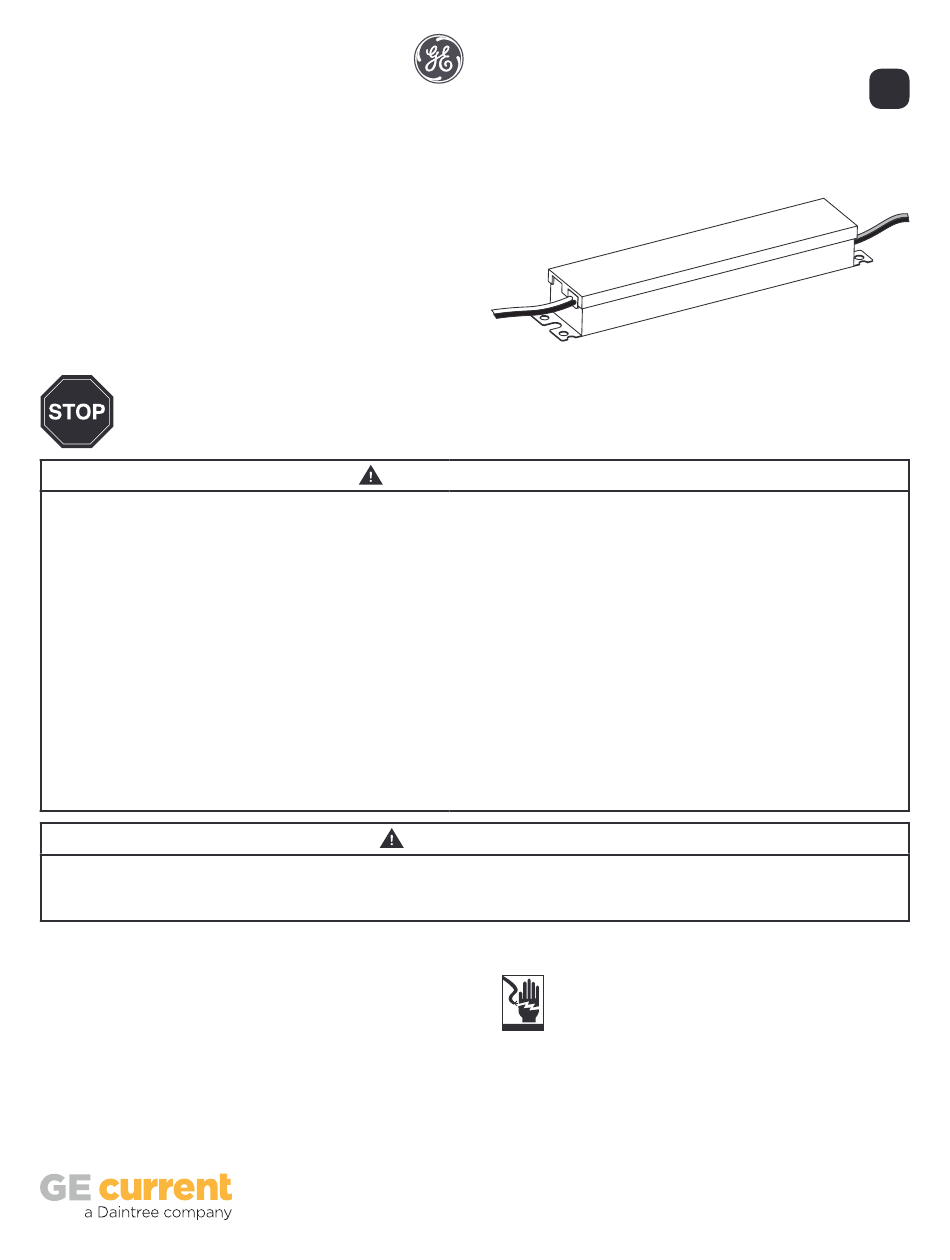

GE Tetra GEPS24-100U-NA Installation Manual

Led systems power supply, 120-277 vac input/24 vdc output/100w, 24 volt
Hide thumbs

Advertisement

Quick Links

Tetra
LED Systems
®

Power Supply

GEPS24-100U-NA

Power Supply Features

• Supports all 24 VDC Tetra Products
• Dry and Damp Locations Rated
• Class 2 Power Supply
• 120-277 VAC Input

BEFORE YOU BEGIN

Read these instructions completely and carefully.
RISK OF ELECTRIC SHOCK
• Disconnect power at fuse box or circuit breaker before servicing
or installing product.
• Properly ground Tetra
power supply.
®
• AC input connections shall be suitably enclosed. The power
supply shall be enclosed or made inaccessible to users during
normal use.
RISK OF FIRE
• Minimum power supply spacing to other power supply or other
heat producing component shall be at least 4" (101.6 mm) from
side to side and 1" (25.4mm) from end to end.
• Use only approved wire for input/output connection. Minimum
size 18 AWG (0.82 mm
).
2
• Follow all local codes.
• Application considerations potentially requiring additional
spacing include high ambient temperature seen by the
power supply, poor contact with a heat dissipating material,
inadequate ventilation, or direct exposure to sun.
RISK OF INJURY
• While performing installations described, gloves, safety
glasses or goggles should be worn.

Save These Instructions

Use only in the manner intended by the manufacturer.
If you have any questions, contact the manufacturer.
(
120-277
VAC input /
WARNING/AVERTISSEMENT
24
VDC output / 100W)
RISQUES DE DÉCHARGES ÉLECTRIQUES
• Coupez l'alimentation électrique à la boîte de fusibles ou au disjoncteur avant
l'entretien ou l'installation du produit.
• Assurez-vous de correctement mettre à terre le bloc d'alimentation Tetra
• Les connexions d'entrée CA doivent être convenablement enfermées. Le bloc
d'alimentation doit être enfermée ou rendue inaccessible aux utilisateurs
pendant l'utilisation normale.
RISQUES D'INCENDIE
• L'espacement minimal du bloc d'alimentation par rapport à un autre bloc
d'alimentation ou aux autres composants produisant de la chaleur doit
être au moins 4" (101,6 mm) de chaque côté et 1" (25,4 mm) de bout en
bout.
• N'utilisez que des fils approuvés pour les entrées/sorties de connexion.
Taille minimum 18 AWG (0.82 mm
• Respectez tous les codes locaux.
• Certaines applications pourraient requérir un espacement additionnel, p.
ex. une température ambiante élevée autour du bloc d'alimentation, un
mauvais contact avec une matière dissipatrice de chaleur, une ventilation
inadéquate ou une exposition directe au soleil.
CAUTION/ATTENTION
RISQUES DE BLESSURE
• Lors de l'exécution des installations décrites, des gants, des lunettes de
sécurité ou des lunettes de protection doivent être portées.
Prepare Electrical Wiring
Electrical Requirements
• Limited to use in dry and damp locations.
• The suitability of rain enclosure shall be determined if
intended for wet location.
• The grounding and bonding of the LED Driver shall be
done in accordance with National Electric Code (NEC)
Article 600.
• Follow all National Electric Codes (NEC) and local codes.
1

Installation Guide

).
2
24
Volt
.
®
