GE
Lighting Solutions
Tetra

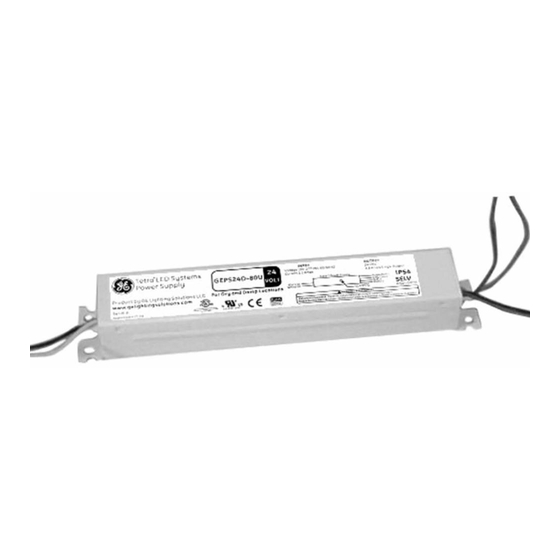

LED Systems Power Supply
®
(GEPS24D-80U)

Power Supply Features

• Supports Tetra PowerStrip DS, Tetra miniStrip DS, Tetra EdgeStrip,
Tetra Contour and Tetra Contour LS LED lighting systems
• Compatible with 0-10V Dimming controller
• Class 2 wiring per NEC Article 725
• Damp location rated
• IP66 rated: separate enclosure required

BEFORE YOU BEGIN

Read these instructions completely and carefully.
RISK OF ELECTRIC SHOCK:
• Disconnect power at fuse box or circuit breaker before servicing or
installing product.
• Properly ground Tetra
power supply.
®
RISK OF FIRE:
• Use only Tetra
supply wire to make connection from Tetra
®
supply to Tetra
LED strip.
®
• Use only approved wire for input/output connection.
Minimum size 18 AWG (0.82mm
• Follow all NEC and local codes.

Power Supply Installation

To Tetra LED System
Red (+)
To Dimming
controller
1
Connect the supply wire that
is attached to the Tetra LED
System to the red (+) and black (-)
output wires of the power supply
as outlined in the "Electrical
Connections" section of your LED
system's Installation Instructions.
imagination at work
WARNING/AVERTISSEMENT
®
)
2
Dimming
controller
Black (-)
Gray (-)
Output
wires
Gray (-)
To Tetra LED System
2
Connect the (+) purple and (-) gray
wires of the Tetra Dimming Power
Supply to the 0-10V dimming
controller. Refer to the dimming
controller installation instructions for
specific connection information.
RISQUES DE DÉCHARGES ÉLECTRIQUES
• Coupez l'alimentation électrique à la boîte de fusibles ou au
disjoncteur avant l'entretien ou l'installation du produit.
• Assurez-vous de correctement mettre à terre l'alimentation
électrique Tetra
RISQUES D'INCENDIE
power
• N'utilisez que le fil d'approvisionnement Tetra® pour faire la
connexion entre l'alimentation Tetra
• N'utilisez que des fils approuvés pour les entrées/sorties de
connexion. Taille minimum 18 AWG (0.82mm
• Respectez tous les codes NEC et codes locaux.
Purple (+)
Purple (+)

Installation Guide

.
®
et la bande DEL Tetra
®
).
2
White (neutral)
3
Connect the AC line to the black
(line) and white (neutral) input
wires of the power supply using
18-14 AWG (0.82-2.08 mm
or 18-10 AWG (0.82-5.26mm
twist-on wire connectors.
Properly ground power supply in
accordance with National Electric
Code (NEC) Article 600.
24
Volt
.
®
Black (line)
AC line
)
2
)
2
