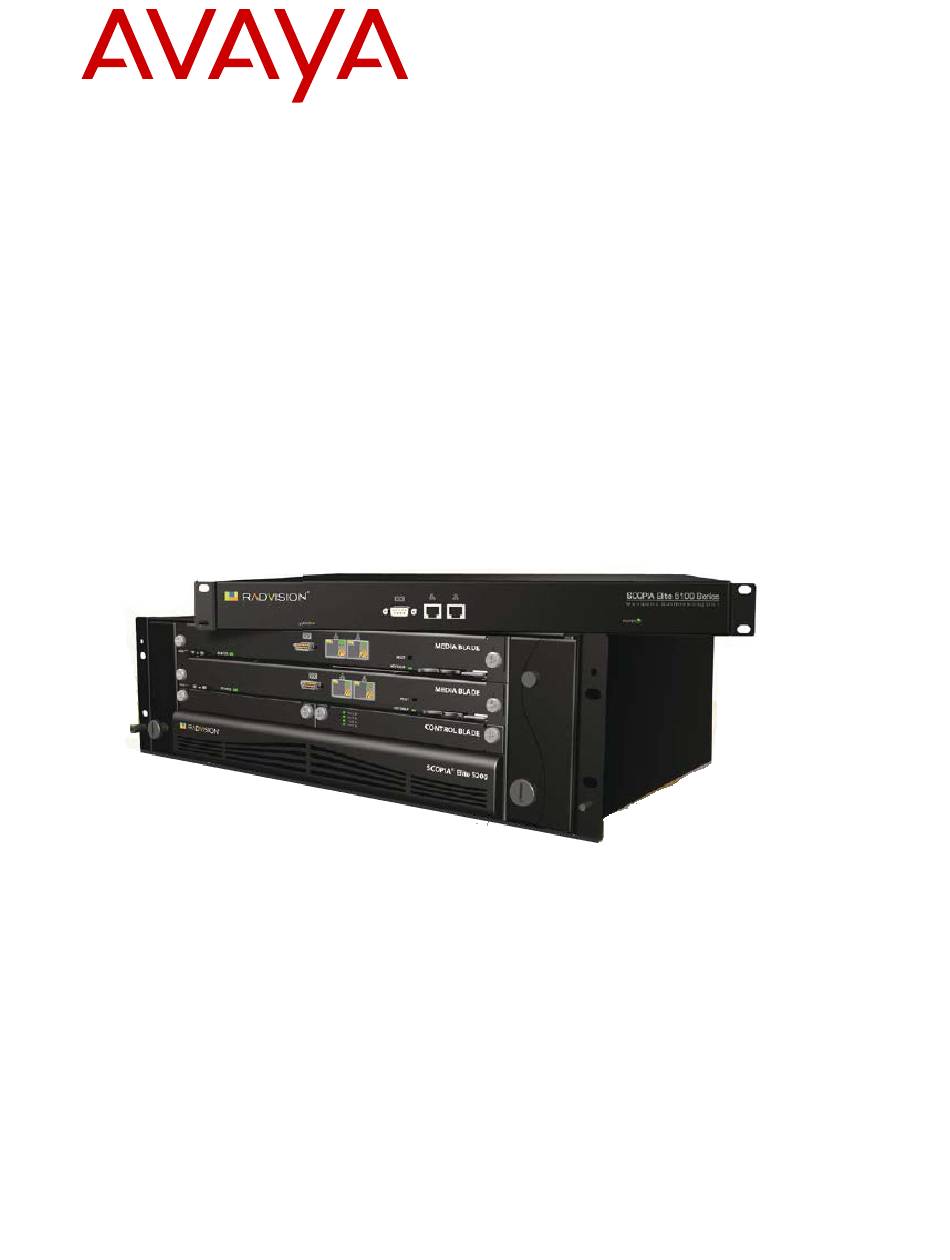

- Page 1 ® Platform Guide for Avaya Scopia Elite 5200 Series MCU Version 8.3 For Solution 8.3 October 2015...
- Page 2 Software at any given time. A “Unit” means the unit on which YOU ARE ACCEPTING THE TERMS OF USE ON BEHALF A Avaya, at its sole discretion, bases the pricing of its licenses and can COMPANY OR OTHER LEGAL ENTITY, YOU REPRESENT THAT...
- Page 3 Documentation, Hosted Service(s), and product(s) provided written consent of Avaya can be a criminal, as well as a civil offense by Avaya are the registered or unregistered Marks of Avaya, its under the applicable law.
-
Page 4: Table Of Contents
Related Documentation Feedback SCOPIA Elite MCU Platform Overview SCOPIA Elite 5200 Series MCU Chassis SCOPIA Elite 5200 Series MCU Chassis Main Features Front and Rear Views of the SCOPIA Elite MCU Chassis SCOPIA Elite Media Blade Panel Features Shelf Manager... - Page 5 Attaching the System Ground Cable Connections and Pin-outs 9-Pin Serial Port Terminal Cable RJ-45 8-Pin IP Network Port 100 Mbps Ethernet 1 Gbps Ethernet Safety Installation Safety Electrical Safety Grounding Power Supply DC Power ESD Procedures Operation Safety Compliance and Certifications Safety Compliance FCC Part 15 Notice Environmental Compliance...
-
Page 6: Related Documentation
ELATED The SCOPIA Elite 5200 Series MCU platform documentation set is available on the Avaya Utilities and Documentation CD-ROM supplied with the product OCUMENTATION and includes manuals in PDF format. - Page 7 viPlatform Guide for SCOPIA Elite MCU 5200 Series MCU Release 7.1...
-
Page 8: Scopia Elite Mcu Platform Overview
Front and Rear Views of the SCOPIA Elite MCU Chassis on page 3 HASSIS SCOPIA E 5200 LITE The SCOPIA Elite 5200 Series MCU chassis is a 3U chassis which can hold two ERIES SCOPIA Elite Media Blades and a shelf manager. HASSIS EATURES SCOPIA Elite MCU Platform Overview... - Page 9 SCOPIA Elite 5200 Series MCU Chassis The upper MCU functions as the master blade, providing the single management interface and controlling both blades in the chassis. The LAN connection is via the upper blade. The lower MCU functions as the slave.
-
Page 10: Front And Rear Views Of The Scopia Elite Mcu Chassis
SCOPIA Elite 5200 Series MCU Chassis Table 1-1 Chassis Main Features Field replaceable units (FRUs) All boards, Power Supply Units and fan drawers are field replaceable units Hot swap All FRUs are hot-swappable—removing or replacing an FRU (except a Power Supply Unit) does not affect the operation of other FRUs. -
Page 11: Scopia Elite Media Blade Panel Features
SCOPIA Elite Media Blade Panel Features MEDIA BLADE RESET HOT SWAP STATUS MEDIA BLADE RESET HOT SWAP STATUS STATUS CONTROL BLADE FAN ALARM-L FAN ALARM-R PWR ALARM Elite 5200 Figure 1-2 Chassis Rear Panel SCOPIA E LITE Figure 1-3 SCOPIA Elite Media Blade Front Panel EDIA LADE ANEL... -
Page 12: Shelf Manager
Shelf manager functionality includes: Monitoring chassis temperature Controlling fan speed Providing alarm indications to the upper SCOPIA Elite Media Blade over the Ethernet via the SCOPIA Elite 5200 Series MCU chassis backplane SCOPIA Elite MCU Platform Overview... -
Page 13: Shelf Manager Panel Features
Shelf Manager HELF ANAGER Figure 1-4 Shelf Manager Front Panel ANEL EATURES MEDIA BLADE RESET HOT SWAP STATUS STATUS FAN ALARM-L CONTROL BLADE FAN ALARM-R PWR ALARM Table 1-3 Shelf Manager Panel Features Component Description STATUS LED Lights green to indicate normal operation. FAN ALARM - L LED Lights red if the tacho-speed in one or more fans in the left fan tray falls below... -
Page 14: Rack Mounting The Scopia Elite Mcu
SCOPIA E OUNTING THE LITE This section describes how to mount a SCOPIA Elite MCU onto a 19-inch rack.Before you can rack-mount a MCU chassis, you need to install brackets that form a shelf on which to place it. The brackets and screws are supplied in the SCOPIA Elite MCU Rack Mounting Kit. - Page 15 Mount Kit Description Avoid placing the MCU in an overly congested rack or directly next to another equipment rack. Otherwise, the heated exhaust air from other equipment can enter the inlet air vents and cause the MCU to overheat. The height of the chassis is 5.25 inches (13.34 cm). Maintain a minimum clearance of 3 inches (7.62 cm) on the left and right of the chassis for the cooling air inlet and exhaust vents.
-
Page 16: How To Install The Brackets
How to Install the Brackets Figure 2-1 The SCOPIA Elite MCU Rack Mounting Kit Table 2-1 Rack-Mount Parts Item Quantity Part Description Right Mounting Bracket Left Mounting Bracket Hexagon socket cap screw M6x10 (Din 7984) Cage nut M6 Allen wrench (4mm) OW TO NSTALL Rack Attachment Location... -
Page 17: Rack Attachment Location
How to Install the Brackets Adjusting the Bracket Length on page 11 Installing the Brackets on page 12 TTACHMENT After you have decided where to mount the SCOPIA Elite MCU chassis on the OCATION rack, you need to locate the corresponding holes in the mounting strips that are connected to the rack posts, as shown in Figure 2-2. -
Page 18: Adjusting The Bracket Length
How to Install the Brackets Figure 2-3 Rack Mounting Brackets DJUSTING THE You must adjust the length of each bracket to correspond with the depth of your RACKET ENGTH rack. Each bracket has two pieces that slide one inside the other, with three elliptic hole settings for adjusting the length, as shown in Figure 2-4. -
Page 19: Installing The Brackets
How to Install the Brackets Figure 2-4 Adjusting Bracket Length - Open View Bracket part that attaches to the rear post Bracket part that attaches to the front post Allen screw - threee elliptic hole options for adjusting the length To adjust the bracket length to correspond with the rack’s depth, from the mounting kit, you need: Both left and right brackets... -
Page 20: How To Rack Mount The Mcu
How to Rack Mount the MCU Located the front and rear side of each bracket. Adjusted the length according to the rack depth. Adjusted the length according to the rack depth. To attach the brackets, you need all the parts from the Mounting Kit, including: The right and left brackets, pre-adjusted to the rack’s depth, as explained Adjusting the Bracket Length on page 11... -
Page 21: Safety Guidelines
How to Rack Mount the MCU AFETY UIDELINES Only trained and qualified personnel should be allowed to install, Warning replace, or service this equipment. Follow these basic guidelines when working with any electrical equipment: Before beginning any procedures requiring access to the chassis interior, locate the emergency power-off switch for the room in which you are working. -
Page 22: Rack Mounting The Scopia Elite Mcu
How to Rack Mount the MCU Figure 2-5 shows how to lift the SCOPIA Elite MCU chassis. Figure 2-5 How to lift the SCOPIA Elite MCU OUNTING THE After you have installed the brackets to form a shelf, you can now mount the SCOPIA E LITE SCOPIA Elite MCU chassis. -
Page 23: Attaching The System Ground
How to Rack Mount the MCU Figure 2-6 SCOPIA Elite MCU Chassis Procedure Lift the SCOPIA Elite MCU chassis according to the instructions in the Chassis Lifting Guidelines section on page 14 Ensure the front of the chassis faces front and place the chassis on the shelf brackets. -
Page 24: Cable Connections And Pin-Outs
ABLE ONNECTIONS AND OUTS 9-Pin Serial Port Terminal Cable on page 17 RJ-45 8-Pin IP Network Port on page 18 ERIAL Table 3-1 describes the pin-to-pin configuration of the RS-232 terminal cable provided with the SCOPIA Elite MCU. ERMINAL ABLE Cable Connections and Pin-outs... -
Page 25: 8-Pin Ip Network Port
RJ-45 8-Pin IP Network Port Table 3-1 RS-232 9-pin D-Type Serial Port Pin-out Function Input Output RJ-45 8-P 100 Mbps Ethernet on page 18 ETWORK 1 Gbps Ethernet on page 19 100 M Table 3-2 describes the pin-out configuration of the 100 Mbps RJ-45 Ethernet THERNET connector. -
Page 26: Gbps Ethernet
RJ-45 8-Pin IP Network Port Connector Function TXD+ Output TXD+ Output RXD+ Input RXD- Input THERNET Table 3-3 describes the pin-out configuration of the 1 Gbps RJ-45 Ethernet connector. Cable Connections and Pin-outs... - Page 27 RJ-45 8-Pin IP Network Port Table 3-3 Pin-out Configuration of the 1 Gbps RJ-45 IP Ethernet Connector Name Function BI_DA+ Bi-directional pair A + I/O BI_DA- Bi-directional pair A - BI_DB+ Bi-directional pair B + I/O BI_DC+ Bi-directional pair C + I/O BI_DC- Bi-directional pair C - BI_DB-...
-
Page 28: Safety
AFETY source. To avoid an electric shock or damage to the SCOPIA Elite 5200 Series MCU platform, servicing should be performed by qualified service personnel only. Do not operate without covers. To avoid electric shock or fire hazard, do not operate this product with any removed enclosure covers or panels. -
Page 29: Grounding
(grounding) or disconnect any of the protective earth terminals. The SCOPIA Elite 5200 Series MCU platform must be installed according to the latest version of the country national electrical codes. For North America, equipment must be installed in accordance to the applicable requirements in the US National Electrical Code and the Canadian Electrical Code. -
Page 30: Power Supply
Electrical Safety The power cable of the SCOPIA Elite 5200 Series MCU platform should only be connected to a power outlet that has a protective earth contact. Do not use an extension cord that does not have a protective conductor (ground). - Page 31 Electrical Safety Do not install equipment that appears to be damaged. Use these basic guidelines when working with any electrical equipment: Locate the emergency power-off switch for the room in which you are working before beginning any procedures requiring access to the chassis interior.
-
Page 32: Dc Power
The Shelf can be powered using a regular telecommunication power supply of -48 VDC / -60 VDC with a voltage return. The specified voltage range is from -40.5 VDC to -72 VDC. To prevent damage to Avaya element boards by random electrostatic ESD P ROCEDURES discharge (ESD), the use of wrist straps is highly recommended. -
Page 33: Operation Safety
Operation Safety PERATION Warning To prevent the SCOPIA Elite 5200 Series MCU platform from overheating, do not operate it in an area that exceeds the maximum recommended AFETY ambient temperature of 113°F (45°C). To prevent airflow restriction, allow at least 3 inches (7.6 cm) of clearance around the ventilation openings. -
Page 34: Compliance And Certifications
27 on page 27 Environmental Compliance on page 28 AFETY This section lists the safety standards supported by the SCOPIA Elite 5200 Series OMPLIANCE MCU platform. IEC 60950-1 2nd Edition UL 60950-1 2nd Edition CAN/CSA C22.2 No. 60950-1 2nd Edition... -
Page 35: Fcc Part 15 Notice
Warning Changes or modifications to the device that are not approved by the party responsible for compliance could void the user’s authority to operate the equipment. Avaya NVIRONMENTAL complies with the following EU Directives: OMPLIANCE Restrictions on the Use of Hazardous Substances (RoHS) Directive...
