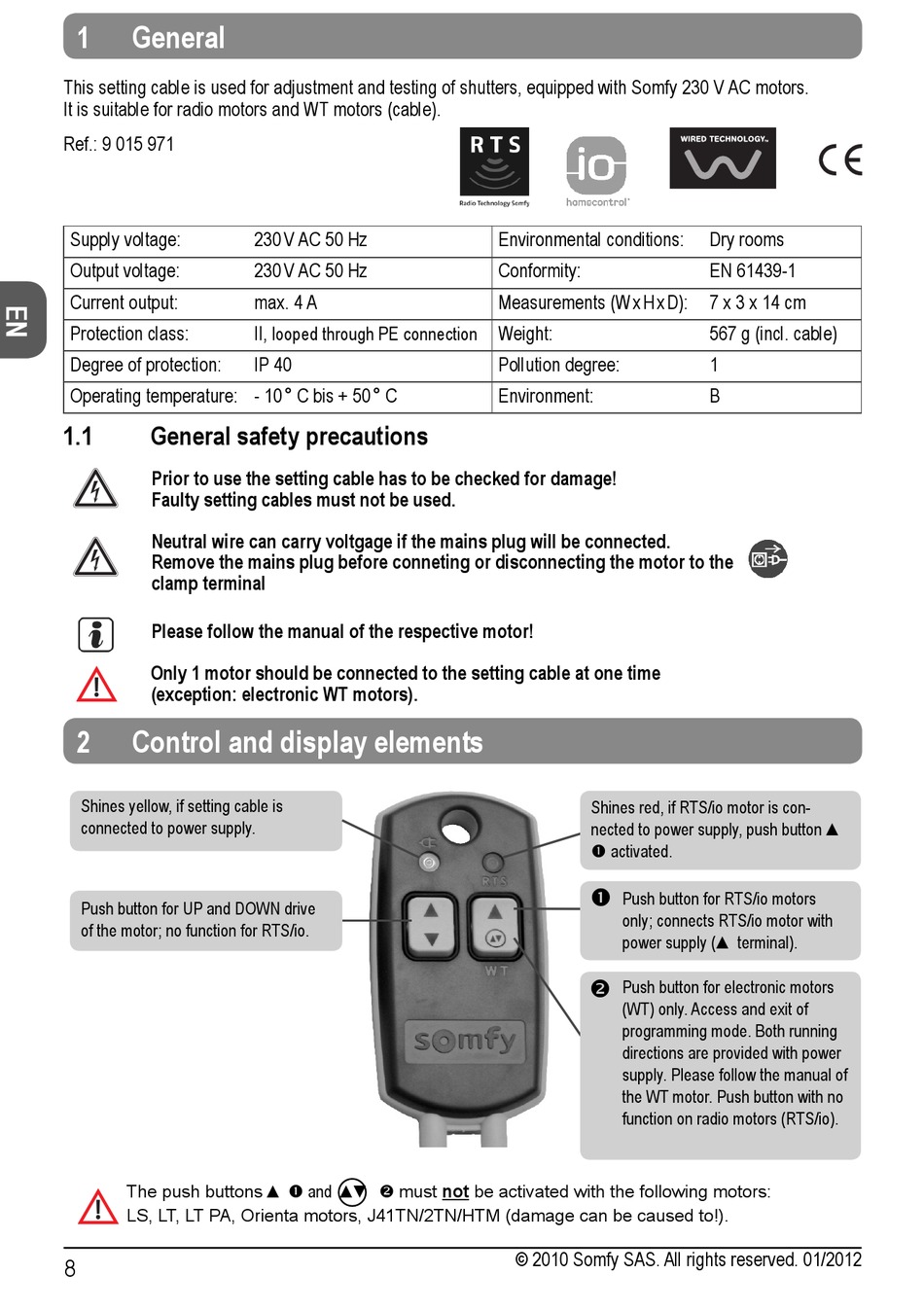

General

This setting cable is used for adjustment and testing of shutters, equipped with Somfy 230 V AC motors.
It is suitable for radio motors and WT motors (cable).
Ref.: 9 015 971
Supply voltage:
Output voltage:
Current output:
Protection class:
Degree of protection:
Operating temperature: - 10 ° C bis + 50 ° C
1.1

General safety precautions

Prior to use the setting cable has to be checked for damage!
Faulty setting cables must not be used.
Neutral wire can carry voltgage if the mains plug will be connected.
Remove the mains plug before conneting or disconnecting the motor to the
clamp terminal
Please follow the manual of the respective motor!
Only 1 motor should be connected to the setting cable at one time
(exception: electronic WT motors).
2

Control and display elements

Shines yellow, if setting cable is
connected to power supply.
Push button for UP and DOWN drive
of the motor; no function for RTS/io.
The push buttons ▲  and ▲ ▼  must not be activated with the following motors:
LS, LT, LT PA, Orienta motors, J41TN/2TN/HTM (damage can be caused to!).
8
230 V AC 50 Hz
230 V AC 50 Hz
max. 4 A
II,
looped through PE connection
IP 40
Environmental conditions:
Conformity:
Measurements (W x H x D):
Weight:
Pollution degree:
Environment:
Shines red, if RTS/io motor is con-
nected to power supply, push button ▲
 activated.

Push button for RTS/io motors
only; connects RTS/io motor with
power supply (▲ terminal).
 Push button for electronic motors
(WT) only. Access and exit of
programming mode. Both running
directions are provided with power
supply. Please follow the manual of
the WT motor. Push button with no
function on radio motors (RTS/io).
© 2010 Somfy SAS. All rights reserved. 01/2012
Dry rooms
EN 61439-1
7 x 3 x 14 cm
567 g (incl. cable)
1
B
