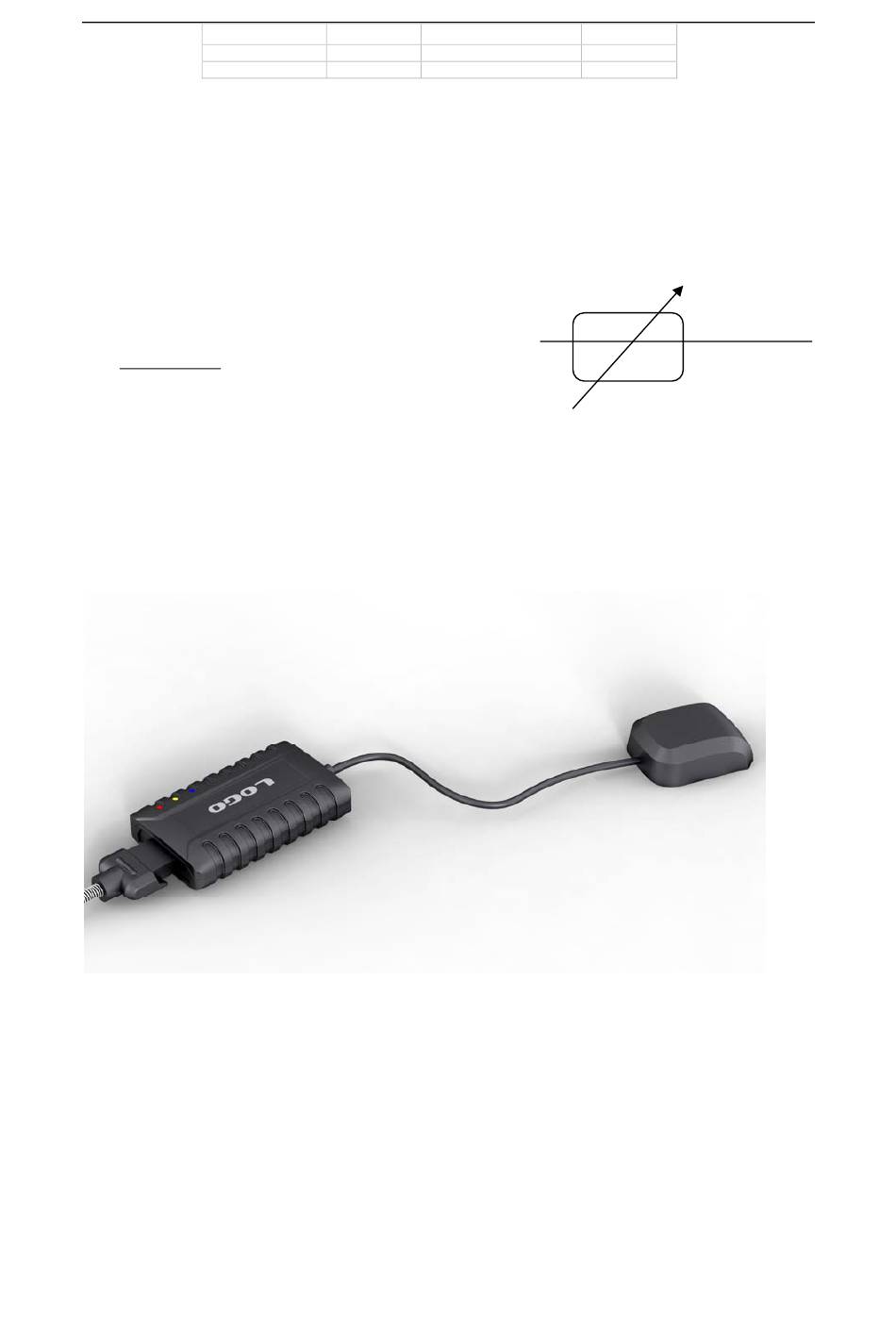

- Page 1 User Manual of Tracker Version Number Modified by Change Content Type Date V1.0 Moot create 2012.11.05 V1.1 Modify 2014.05.19 Vehicle and Personal Multi-purpose Positioning Tracker _______________________________________ User Manual V1.1...
-
Page 2: Table Of Contents
User Manual of XT007 Contents Products Overview....................... - 1 - For Your Safety ........................- 2 - Tracker Characteristics......................- 2 - Getting Started ........................- 3 - 4.1 Hardware and Accessories ..................... - 3 - 4.2 Function key and Interfaces ................... - 4 - 4.3 First Start........................ - Page 3 User Manual of XT007 Output Control ......................- 17 - 18.1 Output Command ....................... - 17 - 18.2 Application Examples for Outputs ................- 18 - Problems & Diagnostics..................... - 18 -...
-
Page 4: Products Overview
User Manual - 1 - 1. Products Overview Thanks for purchasing our product！ It is a vehicle and personal multi-purpose positioning tracker. Tracker has built-in terminals of GPS (global positioning system) module and GSM communication module, which are used for getting the location data and send it to authorized phone number via SMS, and tracking through free maps Google Earth or Google Map;... -
Page 5: For Your Safety
User Manual - 2 - 2. For Your Safety Read these simple guidelines. Not following them may damage to the tracker or not perform proper function of application. Correct Connection When connecting with other tracker, read carefully its manual so as to carry out correct installation. Do not connect it to other incompatible trackers. -
Page 6: Getting Started
User Manual - 3 - Hot Start 3 sec., average Cold(warm) Start 39 sec., average Altitude Limit 18,000 meters (60,000 feet) max. Velocity Limit 515 meters/second (1000 knots) max. Acceleration Limit Less than 4g 3 LED lights to show power (red), GPS (yellow), GSM (blue). -
Page 7: Function Key And Interfaces
User Manual - 4 - Magnet (Optional) USB cable DC charger cable 4.2 Function key and Interfaces USB & external GPS antenna port GPS LED GSM LED Power LED I/O interfaces USB & external antenna Micro USB port port: External antenna connector I/O port: I/O port... - Page 8 User Manual - 5 - Power switch Built-in SIM card holder I/O connector SOS button LED- Power Always on Charging 1s on and 3s off Normally work Blue LED- GSM 0.3s on and 0.3s off GSM module is initializing Always on Failed to registered network 1s on and 3s off GSM module is registered network...
-
Page 9: First Start
User Manual - 6 - SIM Card Holder (Inside) Insert SIM card here Mini USB Port Used for charging, firmware update, configuration on PC Input/Output Interface Distinguish the inputs and outputs from color Color Function DC In (power input) Input voltage: 7.5V ~ 24V/3A Black Ground Green... - Page 10 User Manual - 7 - - Open the SIM holder and insert the SIM card, and turn on the power switch, see pictures below: Insert SIM card： Lock SIM holder Open SIM holder Insert SIM card Turn on power： Power off Power on Power switch - Put back the cover and screw it up tightly.
-
Page 11: Parameter Configuration
User Manual - 8 - - If users choose to external antenna, firstly unscrew the top cover and take off the cover, then screw the customized external antenna to the tracker. See picture below: Note: External GPS antenna is directive antenna. It is better to fix it to face the sky directly(to be placed under the windshield is recommended) and flat side down, black side up, and use double-side tape to keep the antenna to avoid effecting the GPS signal. -
Page 12: Set By Gprs
User Manual - 9 - 5.3 Set by GPRS. GPRS Server Tracker Users can set the parameter of tracker by server, see <command list> from the <Communication protocol>. 6. Change Password Command: M******,00,###### Description: Change user’s password. Note: ALL ENGLISH LETTERS IN THE COMMAND MUST BE IN CAPITAL LETTER! 1. -
Page 13: Tracking Via Sms
User Manual - 10 - E: Low battery alarm F: No GPS signal alarm G: Geo-fence alarm H: Over speed alarm I: Surveillance mode J: Vibration alarm K: Remove off tracker alarm (1: enable alarm, 0: disable alarm) Example: Preset the authorized phone number 13800000000, and just enable SOS alarm. M000000,01,1,13800000000,10000000000 9. -
Page 14: Tracking By Calling
User Manual - 11 - M000000,10,1 9.3 Tracking By Calling Description: Any authorized number makes a call to the tracker for location and the tracker will send its longitude and latitude by SMS. If tracker does not get GPS signal successfully, it will reply a Google link to the authorized phone. Note: please confirm the <call for location>... -
Page 15: Apn Setting
User Manual - 12 - Example: M000000,22,123456789 10.3 APN Setting Command: M000000,23,APN,Username,Password Description: Set APN parameters for the tracker Note: 1. APN username and password are optional. If no APN username and password are required, just input APN only; 2. APN + username + password should not over 64 characters. Example: M000000,23,CMNET 10.4 IP and Port Setting... -
Page 16: Gprs Corner Sending Setting
User Manual - 13 - 10.7 GPRS Corner Sending Setting Command: M000000,27,X Description: Set the smallest angle for sending GPRS packets. If the angle difference measured by GPS is greater than or equal to the preset angle, the tracker will send the GPRS data to server no matter what time and distance interval set. -
Page 17: Geo-Fence Alarm
User Manual - 14 - 11.3 Geo-fence Alarm Command: M000000,32,NO.,name,lat,lng,radius Description: Turn on Geo-fence alarm. When the tracker moves in/out the preset geo-fence, it will send a SMS alarm to the authorized phone number and send this alarm to server via GPRS. Note: please confirm the <geo-fence alarm>... -
Page 18: Sos Emergency Calling
User Manual - 15 - Note: please confirm <No GPS signal alarm> is enabled to the specific authorized number (see 8.Authorization). SOS Emergency Calling Command: M000000,06,X,Num. Description: If press SOS button 3 seconds, tracker will call the SOS phone number. Note: X=1 means setting SOS number Num: SOS phone number (max. -
Page 19: Working Mode
User Manual - 16 - Working Mode Command: M000000,07,X Description: Set the work mode of the tracker (mode 1 :normal vehicle & personal mode; mode 2: personal long standby mode) A: If the tracker is applied to vehicle, it is better to set it to be mode 1. In mode 1: tracker will not consider saving power, all functions will normally work. -
Page 20: Fuel Detection
User Manual - 17 - 17.2 Fuel Detection AIN1 Analog input1 (AIN1) can be used for fuel detection. The remaining-fuel-percent will be sent to the server via GPRS. Please refer to <GPRS Communication Protocol> for more information. Output Control 18.1 Output Command Command: M000000,50,NO.,X Description: This command is to enable/disable the status of tracker. -
Page 21: Application Examples For Outputs
User Manual - 18 - 18.2 Application Examples for Outputs +12V DC White Relay Relay Green OUT1/OUT2 Yellow Power ignition Car Battery Engine ignition loop Normally two green wires are connected solidly (P1 and P2 are normally close in relay), when output is open, two green wires will disconnect so that the engine is cut. - Page 22 User Manual - 19 - GSM network is busy Please wait a moment. Tracker maybe not react instantly when GSM network is busy or tracker is in failure. Wrong password in your SMS or wrong Write correct password or SMS format. SMS format The SIM card has run out of credit Replace or recharge value of the SIM card.
