Summary of Contents for MEGASTEK MT-200
- Page 1 Waterproof MINI Tracker MINI ___________________________ User Manual V1.0...
-
Page 2: Table Of Contents
Contents Waterproof notices and disclaimers ····················································· 1 Products overview ··············································································· 1 Specifications ······················································································ 2 Overview ····························································································· 2 4.1. What is in the package ·································································· 2 4.2. How to use the belt ·············································· 错误！未定义书签。 4.3. View ······························································································ 3 4.4. LED status, ports and buttons description ······································ 3 4.5. -
Page 3: Waterproof Notices And Disclaimers
User manual of tracker 1. Waterproof notices and disclaimers Do not let the tracker stay in the water too long, taken out the tracker in time if it falls into the water, and then siphoning off the water with a towel or paper towel. The structural design of the our products fully comply with the requirements of waterproof rating, in no event shall our company be liable for direct, indirect, special, incidental, or consequential damages (including but not limited to economic loss, personal injury, and... -
Page 4: Specifications
User manual of tracker ◆ Support up to 5 authorized cell phone numbers ◆ Real time tracking ◆ SOS emergency calling ◆ Geo-fence alarm ◆ Over speed alarm ◆ Low battery alarm ◆ Vibration alarm ◆ Data Logger in no GSM signal area using Micro SD card (Max: 2GB) 3. -
Page 5: View

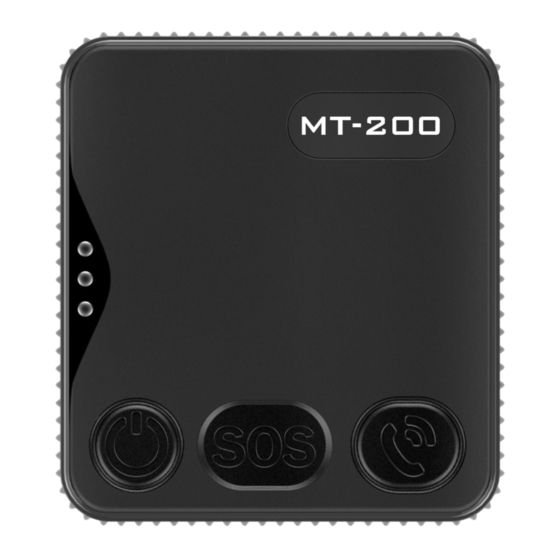

User manual of tracker Screw driver 4.2. View Front View Side View Back View 4.3. LED status, ports and buttons description Power LED Soft switch button GSM LED GPS LED SOS button CALL button Speaker Charging port - 3 -... -
Page 6: Getting Started
User manual of tracker Blue LED — GSM LED Blue LED flashing 0.5s on & 0.5s off Initializing Blue LED flashing 1s on & 3s off Registered to GSM network /Yellow LED — Power LED The red LED is always on Charging The red LED turn Yellow Fully charged... - Page 7 User manual of tracker - Switch on the main power switch, insert a SIM card, and micro SD card (optional), and switch off the main power switch, then close the cover, as follow: - Close the cover and seal it up with the screw 4.5.3 SIM card SD card...
-
Page 8: Instruction And Function Applications
User manual of tracker Make sure that tracker front side is up to the open sky when the main power switched on. -- If the tracker operates normally and positioning successfully, the blue LED flashes 1s on & 3s off; the green GSM LED flashes 1s on & 3s off. 5. -
Page 9: Working Mode
User manual of tracker any alarm SMS (but you still can receive alarms through GPRS, if set) and cannot call out. Advice: set the authorized number first when you first use! Command: FACID,123456,AUTHORIZE,1=13145826121,2=13145826122,3=13145826123,4=1314 5826124,5=13145826125 SMS reply: FACID authorize ok! It means that set tracker success. This command also can set 1 or 2 authorized number only, just don’t fill in behind. -
Page 10: Tracking By Calling
User manual of tracker FACID,123456,MODE,MONITOR SMS reply: FACID mode ok! When in this mode the tracker will answer incoming call from an authorized number automatically without vibration or sound signal and you can monitor surroundings. speaker mute automatically surveillance mode. Long time standby mode Tracker do not set up any work tasks;... -
Page 11: Real Time Tracking
User manual of tracker Tracker will hand up the phone when authorized number call and it will send a SMS with LBS Google link positioning immediately, if there is no GPS signal at the real ti For example: http://maps.google.com/maps?f=q&hl=en&q=loc:22.637118,114.032055&SP:1.55 21/0 3/14 17:35 BAT=100% SGL:LAST GNS:0GPS:5-LBS At the same time, the tracker starting to search satellite. -
Page 12: Reset Remote
User manual of tracker NAME: access Point’s user name. PASS: access point’s password. APN: network service access point. ID: device number. MODE: communication mode, 0 means that TCP, 1 means that UDP. HBE: 1 or 0 enable/disable heartbeat function. HBN: text message of heartbeat. HBI: heartbeat transmission time interval. -
Page 13: Tracking Regularly Via Sms
User manual of tracker Tracking regularly via SMS Function: tracker will send the SMS to authorized number by timing. Set the upload regularly and the upload number of times. FACID,123456,LOC,I=60,T=20,L=45 Reply: FACID loc ok! LOC: means that the command name with positioning regularly. I=60: means that the location regularly is 60s, range of: 10-65535. -
Page 14: Set The Time Zone
User manual of tracker 5.11 Set the time zone GMT+8, Function: default is set the time zone of your place so SMS time consistent with local time. For example: FACID,123456,TIME ZONE,V=+9 Reply: FACID time zone ok! （ -12,-11,-10,-9,-8,-7,-6,-5,-4.5,-4,-3.5,-3,-2,-1,0,+1,+2,+3,+3.5,+4,+4.5,+5,+5.5,+ 6.5,+6,+7,+8,+9,+9.5,+10,+11,+12,+13） 5.12 SD card test If the tracker insert SD card and it can not receive the GSM signal, the GPRS location data will be save to the SD... -
Page 15: Geo-Fence Alarm
User manual of tracker 5.14 Geo-fence alarm Function: if already set a Geo-fence, when the tracker is get into or out of the Geo-fence area, it will send an alarm message. For example: FACID,123456,GEOFENCE,A1=113.000000e/22.400000n,A2=114.800000e/22.600000n, B1=113.000000e/22.400000n,B2=114.800000e/22.600000n,C1=113.000000e/22.4000 00n,C2=114.800000e/22.600000n,D1=113.000000e/22.400000n,D2=114.800000e/22. 600000n,E1=113.000000e/22.400000n,E2=114.800000e/22.600000n Reply: FACID geofence ok! Note: A1, B1, C1, D1, E1 for the preset range of the longitude and latitude in the upper left corner, and A2, B2, C2, D2, E2 is preset in the low right corner of the latitude and longitude... -
Page 16: Low Battery Alarm
User manual of tracker Reply: FACID vib ok! Also can set 3G sensor with this function: FACID,123456,GSensor,L=40 Reply: FACID gsensor ok! 3G sensor’s sensitivity level: 0~50 (max: 50). Cancel this function: FACID,123456,GSensor Replay: FACID gsensor ok! 5.17 Low battery alarm When the battery level is lower than 30%, Function: tracker will send a low battery alarm message to remind users to charge in time. -
Page 17: Attachment 1：Sms Data Format
User manual of tracker Problem: Tracker will not reply with SMS Possible cause Resolution Can not registered to the GSM network Make sure the GSM signal is good (LED flash 0.5 second on and 0.5 Check the SIM card, Inspect SIM card again second off) If re-inserting does not help, try another one GSM network is slow... - Page 18 User manual of tracker There are three kinds of SMS data formats: LBS Google link format, Latitude and longitude format and Google link format. LBS Google link format： http://maps.google.com/maps?f=q&hl=en&q=loc:22.633141,114.031213&SP:3.05 04/0 5/14 19:00 BAT=100% SGL:LAST help GNS:0GPS:8-LBS Data analysis: For example Explain http://maps.google.com/maps?f=q&hl=en&q Google link...
- Page 19 User manual of tracker SGL:CUR SGL:CUR Real time positioning success SGL:LAST Last valid data LowBattery Alarm information, as follow: Alarm type Explain Move in Tracker gets into preset warning area. Move out Tracker out of the preset warning area. Tracker gets into the preset Geo in(A,B,C,D,E) Geo-fence area.
- Page 20 User manual of tracker Data analysis: For example Explain http://maps.google.com/maps? Google link f=q&hl=en&q=loc:22.637118,1 14.032055&SP:1.55 21/03/14 17:35 Date BAT=100% State Of Charge SGL:LAST SGL:CUR Real time positioning success SGL:LAST Last valid data Alarm information, as follow: LowBattery Alarm type Explain Move in Tracker gets into preset warning area.
