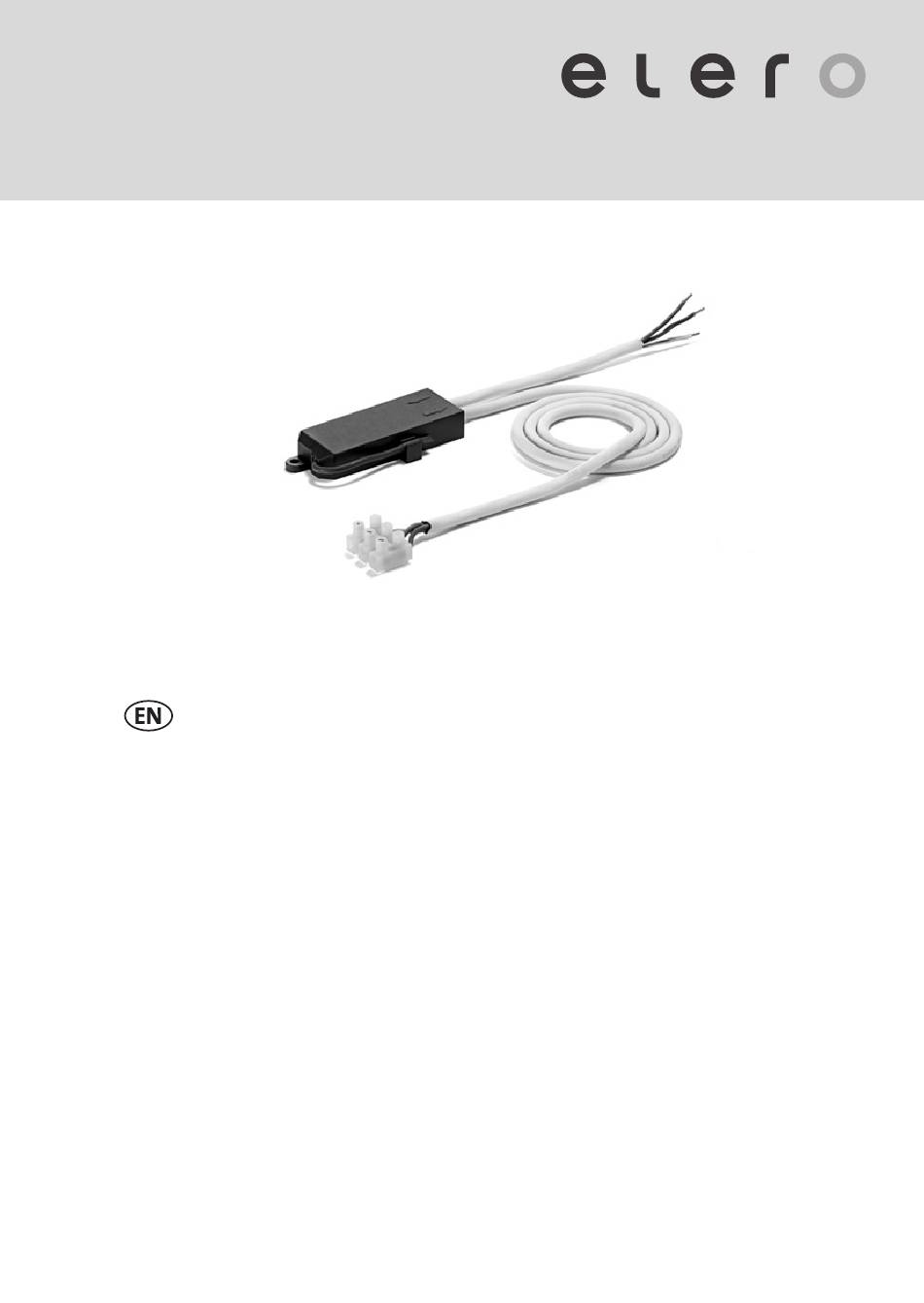

- Page 1 Combio-868 LI 285630006 Information for use Keep for future use. 181110703_EN_0319...
- Page 2 Translation from the original German version. All other documents in diff erent languages are transla- tions of the original version. All rights reserved in the event case of patent, utility model or design registrations. Ⓒ elero GmbH 2 | EN...
-
Page 3: Table Of Contents
General control options Adapting an illuminant Deleting the programmed handheld/ wall-mounted transmitter Servicing Cleaning Maintenance General notes on troubleshooting Repairs Decommissioning and disposal Disassembly Disposal Certifi cation and imprint EU Declaration of Conformity Legal Disclosure Ⓒ elero GmbH EN | 3... -
Page 4: Introduction
• LED light bulbs with a suitable electronic dimmer (ECG, electronic control gear) An elero handheld/wall-mounted transmitter (at least 1) is also required. The Combio-868 LI can be controlled by several transmitters. Follow the instructions in these manuals to ensure proper and safe use. -
Page 5: Symbols And Warnings
The Combio-868 LI is designed for installation in dry cavities in buildings. Do not perform any modifi cations to the device. The manufacturer will not assume liability for damage caused by the above. -
Page 6: Warranty
Warranty • The warranty period for Combio-868 LI is in accordance with the legal regulations. Damages caused due to improper use are excluded. • Never open the device without authorisation. Opening the housing renders the warranty null and void. • No warranty claims may be made for damage caused... -
Page 7: Terminal Connection Diagram
Combio-868 LI brown L blue (N) antenna green- electronic yellow control gear The Combio-868 LI is supplied with 230V AC via spring clips. Designation Assignment Exterior conductor (brown) R, C Neutral conductor (blue) Protective conductor (yellow/green) The illuminants that are connected are powered and activated via suitable clips by means of same-coloured connections. -
Page 8: Technical Data
Dimensions of housing (L x W x H) 98 x 41 x 16 mm Weight with cable approx. 350 g Type of mounting Screws / glued Conformity CE (FCC / IC) Item number 285630006 Ⓒ elero GmbH 8 | EN... -
Page 9: Preparation
The equipment is set via the elero handheld/wall-moun- ted transmitter following the electrical connection. Connection and installation WARNING Risk of injury, damage to the Combio-868 LI and its surrounding area due to improper electrical connections. Ⓒ elero GmbH EN | 9... - Page 10 Take care to ensure correct, securely affi xed • connections. • The Combio-868 LI must be installed in a dust-free and dry environment. • Screw the Combio-868 LI to the surface by means of the ring lug using a suitable screw.
-
Page 11: Commissioning
The elero handheld/wall-mounted transmitter has to be programmed to the Combio-868 LI radio receiver. The functions of the Combio-868 LI are controlled using the buttons [OPEN ▲], [STOP ■], [DOWN/CLOSE ▼], programming button [P] and the slider of the handheld/ wall-mounted transmitter. -
Page 12: Asynchronous Programming Mode (Standard)
Ready to receive the the buttons [OPEN ▲] + programming button [P]. [DOWN/CLOSE ▼] + [P] simultaneously and hold them down for 3 seconds on a transmitter that has already been programmed. Ⓒ elero GmbH 12 | EN... - Page 13 Asynchronous programming mode (standard) Start programming mode: Combio-868 LI changes Press the [P] programming to asynchronous program- button for approx. 1 second. ming mode and the light source begins to change intensity (between 100% and 30%) periodically. Set fi rst hit:...
-
Page 14: Synchronous Programming Mode
As a result, the hits for all participating receivers can be set simultaneously. Synchronous programming mode is suitable for • programming an additional transmitter • programming several receivers simultaneously to one transmitter or one channel. Ⓒ elero GmbH 14 | EN... - Page 15 [P]. that has already been pro- grammed and hold them down for 3 seconds. Start programming mode: Combio-868 LI changes to Press the [P] programming synchronous programming button for approx. 1 second. mode and the light source begins to change intensity (between 100% and 30%) periodically.
- Page 16 Once programming is complete, group programming mode has to be terminated manually in ■ the transmitter by pressing the [STOP ] button for at least 6 seconds. Ⓒ elero GmbH 16 | EN...
-
Page 17: General Control Options
[UP ▲] + [STOP ■] Save current brightness Short value as the maximum user-defi ned brightness value [UP ▲] + [STOP ■] Longer Delete maximum user-de- than 6 fi ned brightness value and seconds restore standard value Ⓒ elero GmbH EN | 17... -
Page 18: Adapting An Illuminant
When adapting an illuminant, the absolute lower dimming limit can be set or this can be reset to the factory setting (10%). In addition the Combio-868 LI can also be confi gured as a light switch. Ⓒ elero GmbH 18 | EN... - Page 19 Requirement for adapting an illuminant Operating procedure Result Activate adaptation Combio-868 LI changes to of illuminant: illuminant adaptation mode Switch the mains voltage off for 5 minutes. Within this and on again or press the time, settings can be made ■...
-
Page 20: Deleting The Programmed Handheld/ Wall-Mounted Transmitter
Confi guring the Combio-868 LI as a light switch Operating procedure Result Press the buttons The illuminant lights up. The [OPEN ▲] + [DOWN/ absolute lower dimming limit CLOSE ▼] for 3 seconds. is set to 100%. Combio-868 LI now functions as a light switch. -
Page 21: Servicing
LED lights up red. All transmitters are deleted from the Combio-868 LI. Servicing Cleaning The components of the Combio-868 LI do not require any special cleaning providing they are protected inside an installation box against dirt. Maintenance The Combio-868 LI is maintenance-free. - Page 22 1. Change the trans- reacting only reception mitter's position. intermittently Change the positi- on of the receiver's aerial 2. Infl uence 2. Localise the from faulty or source of the non-approved interference and radio systems rectify malfunction. Ⓒ elero GmbH 22 | EN...
-
Page 23: Repairs
Ensure that any connecting cables that have been • removed are not left unprotected (insulate). If intending to remove the Combio-868 LI, proceed as follows: 1. Switch off the power supply. 2. If the components have been installed in an installation box, remove them. -
Page 24: Disposal
Disposal The Combio-868 LI must be disposed of in accordance with the legal regulations for electronic devices. The packaging must be disposed of separately in accordance with the applicable rules for cardboard and plastic. Certifi cation and imprint EU Declaration of Conformity elero GmbH hereby declares that the Combio-868 LI is in compliance with Directive 2014/53/EU.
