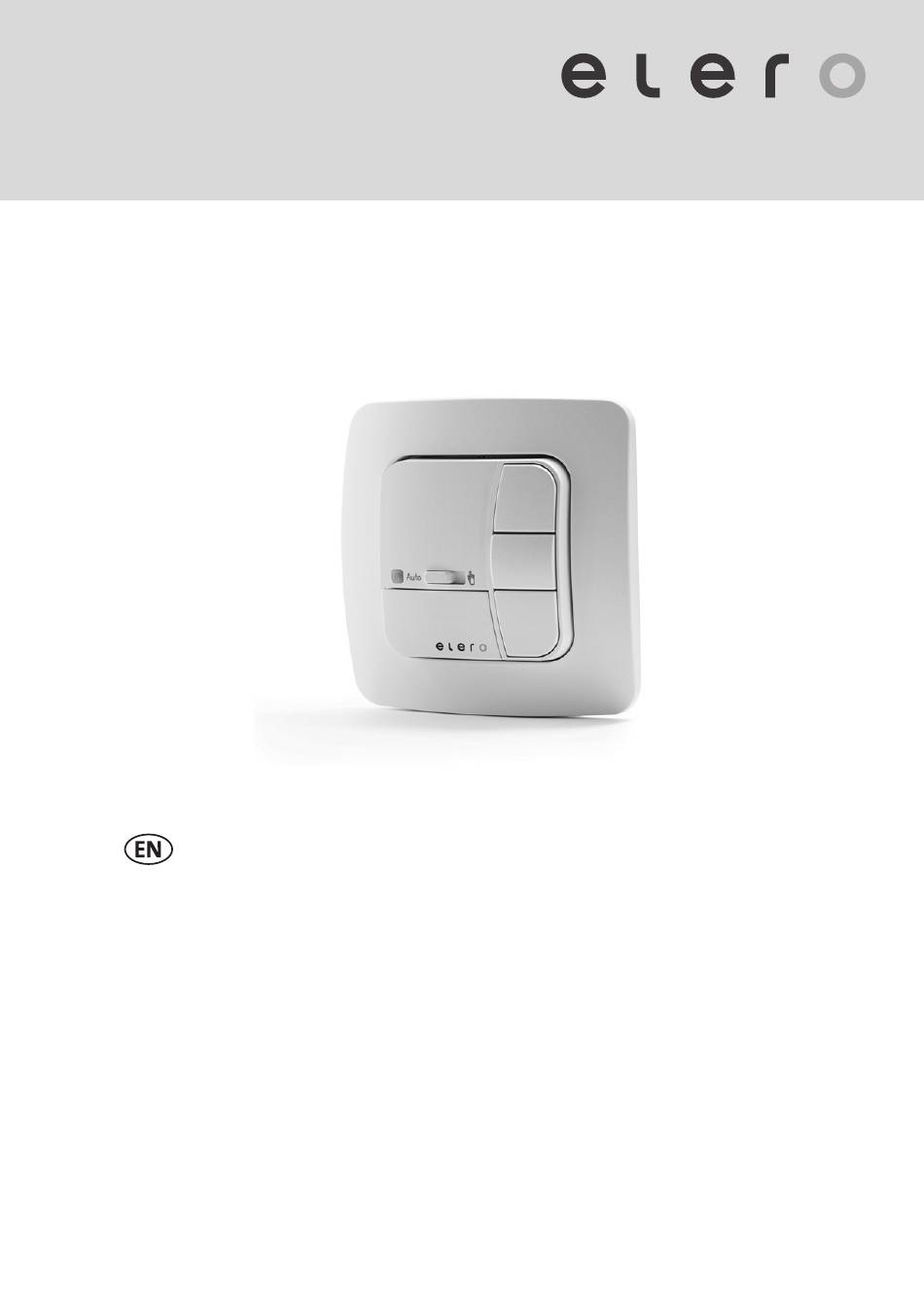

- Page 1 VarioTec-868 DC 28 345.0006 Operating Instructions Keep the operating instructions in a safe place! 181234001_EN_0918...
- Page 2 Translation from the original German version. All other documents in diff erent languages are translations of the original version. All patent registration, working models, or design patents rights reserved. Ⓒ elero GmbH 2 | EN...
-
Page 3: Table Of Contents
Description of the device and operation Connection and initial start-up Radio systems Programming Technical specifi cations Cleaning and maintaining the device EC declaration of conformity Troubleshooting Repair Manufacturer's address Disposal / Notes on protection of the environment Ⓒ elero GmbH EN | 3... -
Page 4: General Information
Notes on the operating instructions The content structure is based on the life cycles of the re- ceiver VarioTec-868 DC (hereinafter referred to as "device"). The manufacturer reserves the right to make changes to the specifi cations stated in these operating instructions at any time. -
Page 5: Intended Use
ProLine 2 radio transmitters as well as a wired controller for roller shutters and sun protection. The device may be used only as a elero ProLine or Pro- Line 2 radio control in conjunction with elero drive motors (blind systems, awnings, and roller blinds systems). -
Page 6: Warranty And Liability
The address for shipping to customer service can be found in Chapter 9, Manufacturer's Address. If you have not purchased the product directly from elero, please contact the supplier of the device. Ⓒ elero GmbH... -
Page 7: Safety
Accidents or near accidents when using the device, resulting, or potentially resulting, in personal injury and/or damage to the environment, shall be reported immediately to the manufacturers directly. Ⓒ elero GmbH EN | 7... -
Page 8: Requirements For Personnel
Children may not play with the product. Ⓒ elero GmbH 8 | EN... -
Page 9: Safety Instructions For Technical Condition

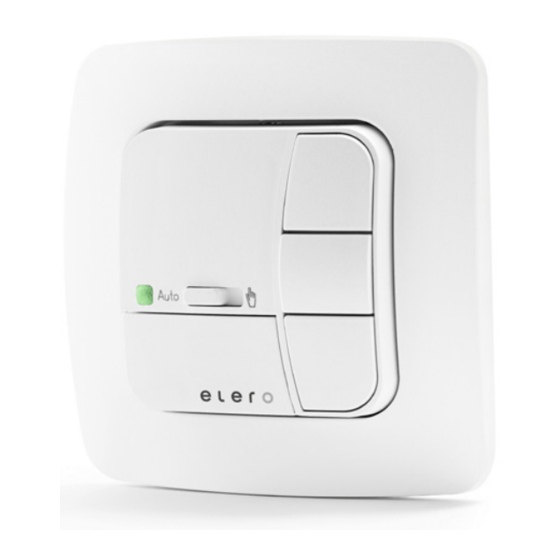

The operator is responsible for the verifi cation before initial operation. Product description The VarioTec-868 DC is not only an easy-to-use radio receiver, but also a wired controller for roller shutters and sun protection. The data communication is unidirectional or bidirectional (compatible with the elero ProLine 2 product line). -
Page 10: Scope Of Delivery
Operating unit General view Manual/Automatic UP button closed STOP button Alarm signal DOWN button Cover Operating unit Reset button Detail view button Reset under the cover fl ap VarioTec-868 JA/RM P button button Ⓒ elero GmbH 10 | EN... - Page 11 Button Pos Down arrow (under the cover fl ap): Programming an Intermediate Position, Deleting an Intermediate Position. Button Pos Up arrow (under the cover fl ap): Programming a Ventilation/Turning Position, Deleting a Ventilation/Turning Position. Ⓒ elero GmbH EN | 11...
-
Page 12: Connection And Initial Start-Up
In a junction box or a metal case. In the immediate vicinity of large metal objects. On the ground (or close to the ground). The minimum distance to other elero radio transmitters or radio receivers must be 20 cm. Ⓒ elero GmbH... - Page 13 • Connect the power supply and the devices to be controlled according to the wiring plan (see Chapters 3.3.4 and 3.3.5). • Risk of damage or destruction of VarioTec-868 DC or any other existing control units by faulty control. • Damage to the blind from incorrect running direction: The assignment of the running direction UP/DOWN must be verifi...
- Page 14 For the connection with other control units, use a shielded control cable, 0.8 mm, or a telephone cable, JY-ST 0.6 mm, for both connection types. The design for an elero control unit can be found in the elero controller catalog. • Disconnect power supply •...
- Page 15 3.3.4 Connection as a drive control unit • Code switch 2 in bottom position: Standard connection type with factory preset • The drive is connected directly to the device • Use enclosed cable bridge according to wiring diagram Ⓒ elero GmbH EN | 15...
- Page 16 3.3.5 Connection as a group control unit • Code switch 2 in top position • Control multiple drives at the same time • Additional group control units and drive control units may be connected (see examples in elero Control Catalog) Mains 12 V DC Output...
- Page 17 (if switch signal is present on at least one central control input for more than 5 seconds) lights orange Wind alarm active Glass breakage (signal from elero Lumo) lights up red When voltage is apllied fi rst, then green Fig. 5 Explanation of LED display Ⓒ...
-
Page 18: Radio Systems
1. After a power interruption or if the P button is pressed on the VarioTec-868 DC, it is ready to programmed for 5 minutes. The LED fl ashes green once. 2. Program individual transmitters to the VarioTec-868 DC according to the transmitter instructions. - Page 19 Ventilation position when using roller shutters: Vents open Turn position when using blinds: Turns the blind slats by brief travel in the opposite direc- tion Fabric stretching position when using awnings: Fabric taut Ⓒ elero GmbH EN | 19...
- Page 20 The ventilation position / turn position / fabric stretching position is now saved. The LED fl ashes green three times. You can also program the ventilation position / turn positi- on / fabric stretching position with a programmed hand-held transmitter. Ⓒ elero GmbH 20 | EN...
- Page 21 1. Press the UP button twice briefl y. The blind travels to the stored turning position. You can also approach the ventilation position / turn positi- on / fabric stretching position with a programmed hand-held transmitter. Ⓒ elero GmbH EN | 21...
-
Page 22: Technical Specifi Cations
Technical specifi cations All the information in this chapter refers to an ambient tem- perature of 20 °C (± 5 °C). Technical specifi cations VarioTec-868 DC Power supply 12 V DC SELV Power supply to the control 5 V DC unit via power supply unit max. - Page 23 58 mm wall installation surface-mounted in corres- ponding AP housing Weight [g] Dimensions (WxHxD) [mm] 85 x 85 x 53 Maximum number of transmitters Conformity Article number 28 345.0006 Fig. 6 Technical Specifi cations VarioTec-868 DC Ⓒ elero GmbH EN | 23...
-
Page 24: Cleaning And Maintaining The Device
Keep device away from magnets or magnetic fi elds. EC declaration of conformity elero hereby declares that radio system VarioTec-868 DC is in compliance with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following Internet address: www.elero.de/downloads-service/... -
Page 25: Troubleshooting
Fig. 7 Troubleshooting VarioTec-868 DC Repair Please contact your dealer if you have any questions. Please always provide the following information: Article number and article description on the type plate Type of fault ... -
Page 26: Manufacturer's Address
The symbol on the product, the operating instructions or the package serves as an alert to these provisions. By recycling, material recycling or other forms of utilizing of old devices or batteries, you make an important contribution to protecting our environment. Ⓒ elero GmbH 26 | EN...
