VarioTel 2 867/868/915 MHz
28245.0001, 28246.0001,
28247.0001, 28245.0901,
28246.0901, 28247.0901
0682
Operating instructions (translation)
181220201_EN_0513
Table of
Contents
Previous
Page
Next
Page
1
2
3
4
5
Advertisement
Table of Contents
Related Manuals for elero VarioTel 2
Receiver elero VarioTec-868 DC Operating Instructions Manual
(26 pages)
Receiver elero VarioTec-915 Operating Instructions Manual
(15 pages)
Receiver elero MonoTel 2 Operating Instructions Manual
867/868/915 mhz (13 pages)
Receiver elero Combio-868/-915 Series Operating Instructions Manual
(9 pages)
Receiver elero Revio-868 Operating Instructions Manual
(9 pages)
Receiver elero Combio-868 LI Information For Use
(24 pages)
Summary of Contents for elero VarioTel 2
Page 1

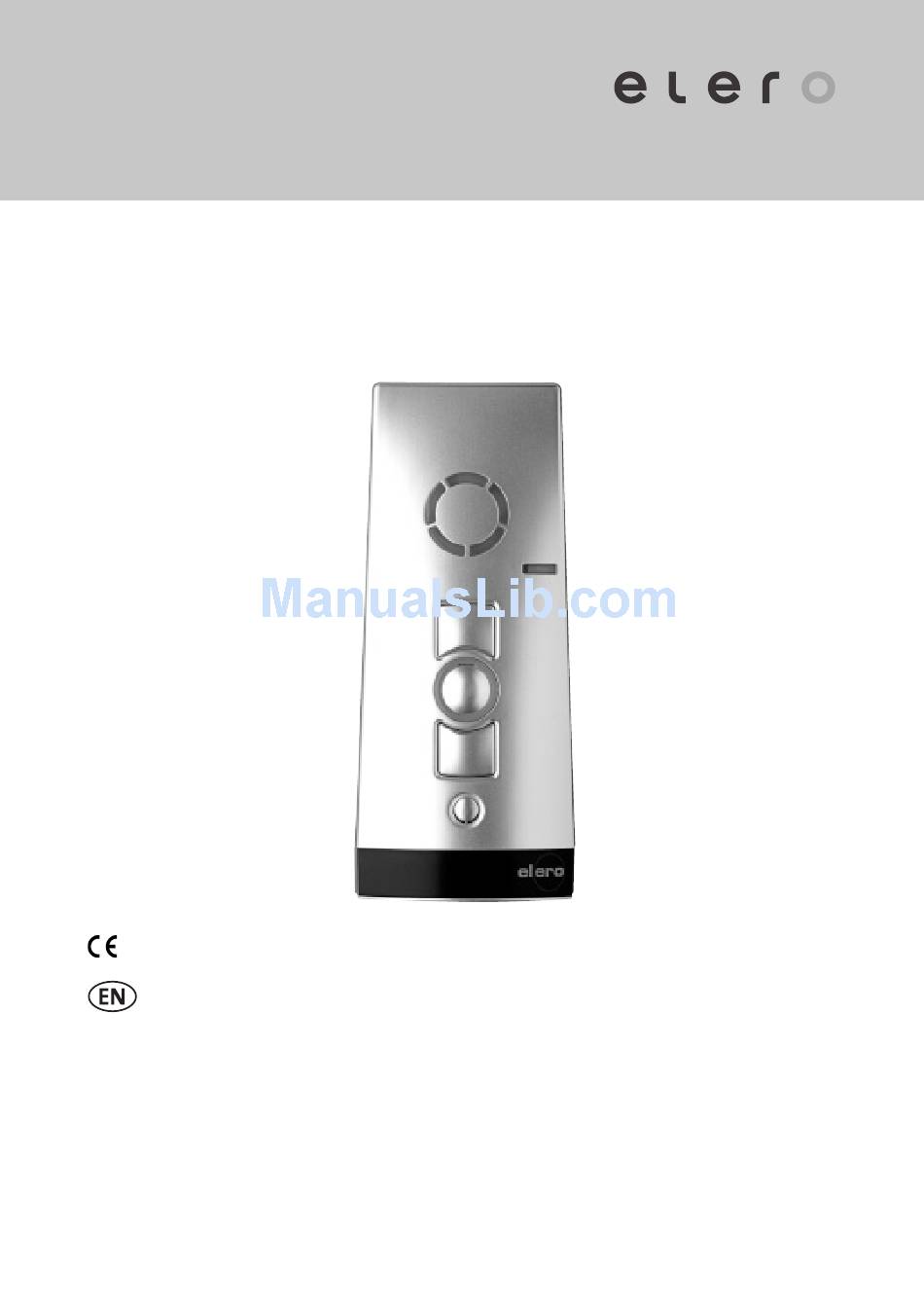

VarioTel 2 867/868/915 MHz 28245.0001, 28246.0001, 28247.0001, 28245.0901, 28246.0901, 28247.0901 0682 Operating instructions (translation) 181220201_EN_0513...
Page 2: Table Of Contents
EC Declaration of conformity ....20 Installation • Observe all regulations during installation. 2 | EN © elero GmbH © elero GmbH EN | 3...
Page 3: Safety Instructions
Venetian blinds and sun protection systems Operation which are fi tted with elero-radio receivers. Other use, or use going • Use only in dry rooms. beyond this is not considered to be use for the intended purpose.
Page 4: Mounting Of Wall Bracket
5 Status indicator 6 DOWN button 7 Select button Rear of unit 8 Learn button P Only for experts: 9 DIP switch 1 10 DIP switch 2 6 | EN © elero GmbH © elero GmbH EN | 7...
Page 5: Explanation Of Functions
(bidirec- unidirectional mode. Press and hold the STOP and P buttons tional) simultaneously for 6 seconds until the status display lights up. Flashing red Batteries weak 8 | EN © elero GmbH © elero GmbH EN | 9...
Page 6: Programming The Transmitter
STOP button for unidirectional channels. The operating mode indicator lights up 6 seconds. 10 | EN © elero GmbH © elero GmbH EN | 11...
Page 7: Programming Additional Transmitters
4. Immediately (within no more than 1 second) after down travel has started, press the DOWN button. The status display lights briefl y. The blind stops. The transmitter channel is programmed. 12 | EN © elero GmbH © elero GmbH EN | 13...
Page 8: Stopping Programming Mode (Bidirectional) In The Transmitter
Combio Pulse) and the blind moves a short distance and stops the ventilation gaps open or the slats turn. Keep the UP button again. pressed during the movement. 14 | EN © elero GmbH © elero GmbH EN | 15...
Page 9: Operation Of The Transmitter With Combio Ja Pulse
6 seconds. The drive begins to move in short pulses. As soon 6 seconds: fi rst green briefl y twice and then red. as the curtain has covered the desired distance, release the UP 16 | EN © elero GmbH © elero GmbH EN | 17...
Page 10: Battery Replacement
• Unusual events occurring prior to fault Disposal • Accompanying conditions • Own suspicion After the end of its service life, dispose of the unit in accordance with the relevant regulations. 18 | EN © elero GmbH © elero GmbH EN | 19...
Page 11: Ec Declaration Of Conformity
GmbH info@elero.de Antriebstechnik www.elero.com Linsenhofer Straße 65 72660 Beuren Deutschland / Germany Please visit our website if Tel: +49 (0) 7025 13-01 you require a contact outside Fax: +49 (0) 7025 13-212 Germany. 20 | EN © elero GmbH...
