  • Page 3 NO WEB ACCESS If you do not have access to the Web. Kindly register by completing the warranty registration form and fax it to the ANVIL office in the country of purchase. Failure to do so will invalidate your warranty.

  • Page 4: Electric Oven

    UNPACKING Unpack the product and check for any damage incurred during transit. This should be reported to the responsible carrier, railway or postal authority, and a request for a damage report should be made. THESE INSTRUCTIONS MUST BE FOLLOWED FOR US TO GUARANTEE OUR FULL SUPPORT OF YOUR CLAIM FOR PROTECTING AGAINST LOSS FROM CONCEALED DAMAGE.

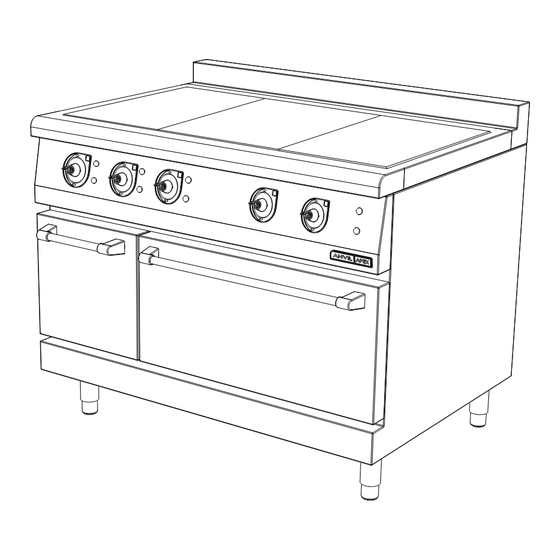

  • Page 5 MODEL 3 PLATE SOLID TOP ELECTRIC OVEN Warming – Set temperatures around 80ºC. MODEL CODE : COA4003 10. Re-heating – If food is frozen, cook longer at lower temperatres. Part Description This will ensure that food is heated evenly and prevent food fillings from being served too hot.
  • Page 6 Cooking is not an exact science. Due to many variables such as size 3 PLATE STOVE/ELECTRIC OVEN and quantity of food, temperature of food, etc. However, the COA4003 following tips may prove to be helpful: 1. As with any recipe, check the food about 5-10 minutes before the expected finish time.

  • Page 7: Electrical Safety

    LINE DIAGRAM ELECTRICAL SAFETY MODEL CODE: COA4003 When this unit is to be positioned in close proximity to a wall, partitions, kitchen furniture, decorative finishes, etc. it is recommended that they be made of non-combustible material. If not, they shall be clad with a suitable non-combustible heat insulating material, and the closest attention be paid to fire prevention regulations.

  • Page 8: Wiring Diagram Legend

    WIRING DIAGRAM WIRING DIAGRAM LEGEND MODEL CODE: COA4003 LEGEND DESCRIPTION PART NUMBER CONTROL THERMOSTAT 1-EGO-150 SAFETY CUT OUT 1-EGO-SAF-OVEN H1/H2 PILOT LIGHT 1-PL-GP C1 - C5 CONTACTOR 1-220V-CONT-40A MOTOR TIMER 1-TIM-COA4004 TIMER 1-2HR-COA1006 FAN MOTOR 1-MOT-COA4004 OVEN ELEMENT 4500W 380V...
