ES78
OWNERʼS MANUAL

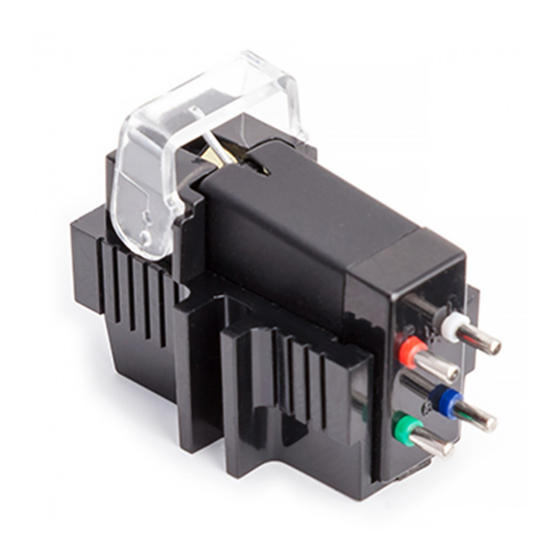

Thank you for your purchase of the ES78 stereo cartridge.
Read these Operating Instructions carefully before using your ES78 and keep it for future reference.
1. The Stylus is very delicate. Applying excessive force to the stylus, such as pressing with a finger can break it. Handle the
cartridge with the utmost care.
2. A powerful magnet is used in the cartridge. Note that carelessly bringing a steel screwdriver or other such item near the
cartridge will result in it being attracted by the magnet and may result in damage to the stylus, so care must be taken.
Package Content
• Cartridge body
• Aluminium sets of head-shell fixing 2,5mm screws and bolts
• Ownerʼs Manual
Method of Use
1. Mounting the cartridge on the tone arm Head-Shell using
the supplied Allen Wrench and one set of the 2,5mm screws.
Adjust it to the stylus position specified for the turntable
system you are using mounting it properly without tilting or
turning it. (See Figure 1.)
• The output terminals are colours coded for identification
as illustrated in Figure 2.
Match the colors of the tone arm head-shell leads to the
terminals and connect each other properly.
NOTE:
When connecting the cartridge, be sure to use the tipped
leads and press them onto the terminals.
Applying heat to the output terminals of the cartridge, such
as in direct soldering, will cause internal damage to the coils.
GOLD NOTE
il suono italiano
Before Using
x2
BLUE (Left ch. -)
WHITE (Left ch. +)
Thank you for your purchase of the ES78 stereo cartridge.
Read these Operating Instructions carefully before using your ES78 and keep it for future reference.
1. The Stylus is very delicate. Applying excessive force to the stylus, such as pressing with a finger can break it. Handle the
cartridge with the utmost care.
2. A powerful magnet is used in the cartridge. Note that carelessly bringing a steel screwdriver or other such item near the
cartridge will result in it being attracted by the magnet and may result in damage to the stylus, so care must be taken.
Package Content
• Cartridge body
• Aluminium sets of head-shell fixing 2,5mm screws and bolts
• Ownerʼs Manual
Method of Use
1. Mounting the cartridge on the tone arm Head-Shell using
the supplied Allen Wrench and one set of the 2,5mm screws.
Adjust it to the stylus position specified for the turntable
system you are using mounting it properly without tilting or
turning it. (See Figure 1.)
• The output terminals are colours coded for identification
as illustrated in Figure 2.
Match the colors of the tone arm head-shell leads to the
Fig. 1
terminals and connect each other properly.
NOTE:
GREEN (right ch. -)
When connecting the cartridge, be sure to use the tipped
leads and press them onto the terminals.
Applying heat to the output terminals of the cartridge, such
as in direct soldering, will cause internal damage to the coils.
RED (right ch. +)
Fig. 2
ES78
GOLD NOTE
OWNERʼS MANUAL
Before Using
BLUE (Left ch. -)
WHITE (Left ch. +)
il suono italiano
x2
Fig. 1
GREEN (right ch. -)
RED (right ch. +)
Fig. 2
