2.5 Spinning disk box Plug IN/Plug OUT
The following procedure will allow to easily switch between different spinning disk boxes you may have. Be
sure that the system is disconnected from the power.

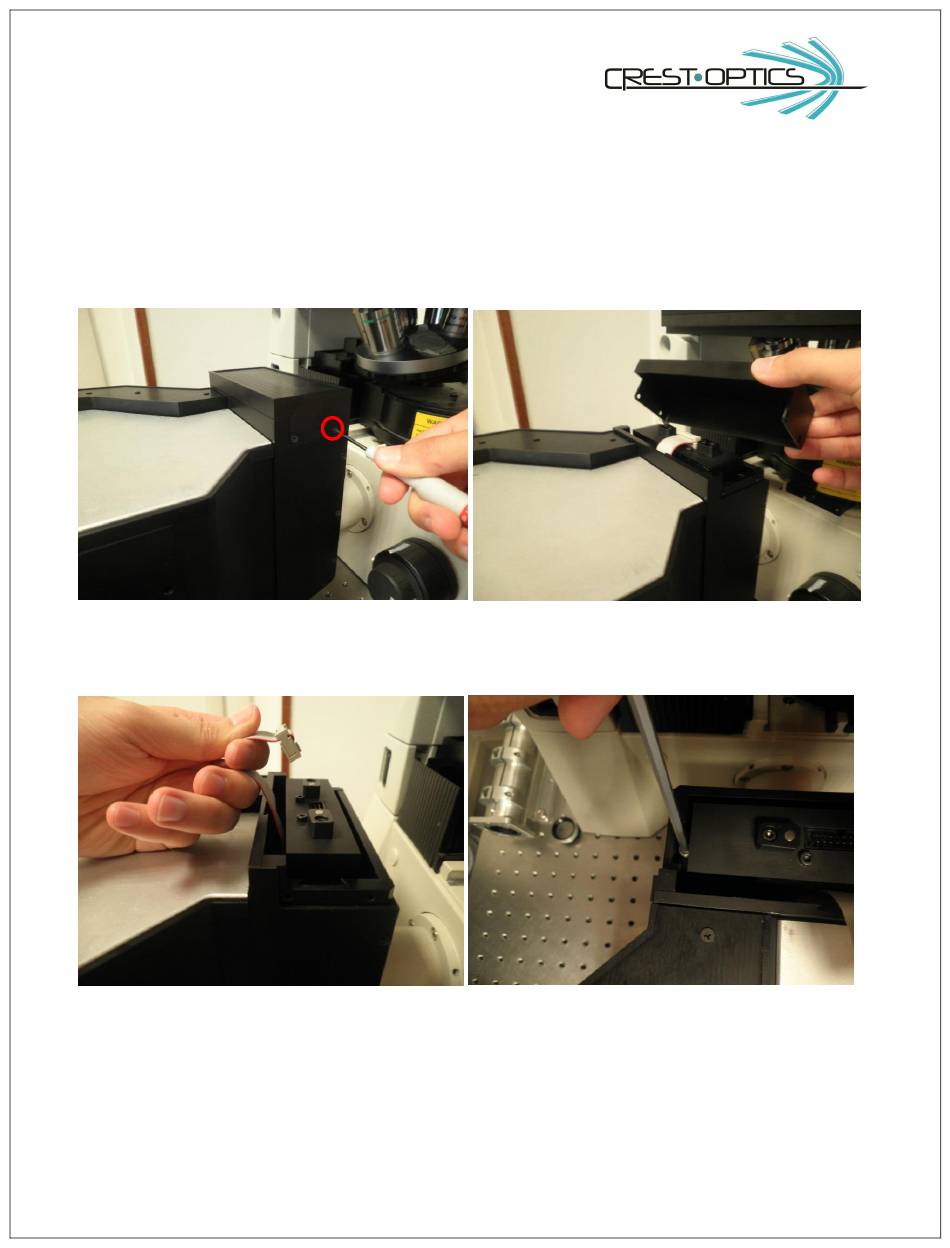

Unscrew the four screws on the top of the spinning box: two for each side and remove the cover
Disconnect the flat cable and unscrew the two hex screws that keep the disk blocked in the housing
25
