  • Page 1 Mini Bullet Camera Hardware Manual 2015/09/14...
  • Page 2: Table Of Contents

    How to Attach the RJ-45 Connector ..........22 Accessing the Camera Configure the IP Addresses ............24 Using DHCP Server to Assign IP Addresses ........ 24 Using the Default Camera IP Address .......... 26 Access the Camera ................. 28 www.acti.com...
  • Page 3: Precautions

    Every reasonable care has been taken during the writing of this manual. Please inform your local office if you find any inaccuracies or omissions. ACTi will not be held responsible for any typographical or technical errors and reserves the right to make changes to the product and manuals without prior notice.
  • Page 4 This product has been tested and found to comply with the limits for Class B Information Technology Equipment according to European Standard EN 55022 and EN 55024. In a domestic environment, this product may cause radio interference in which cause the user may be required to take adequate measures. www.acti.com...
  • Page 5: Safety Instructions

    Safety Check Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine if the product is in proper operating condition. www.acti.com...
  • Page 6: Introduction

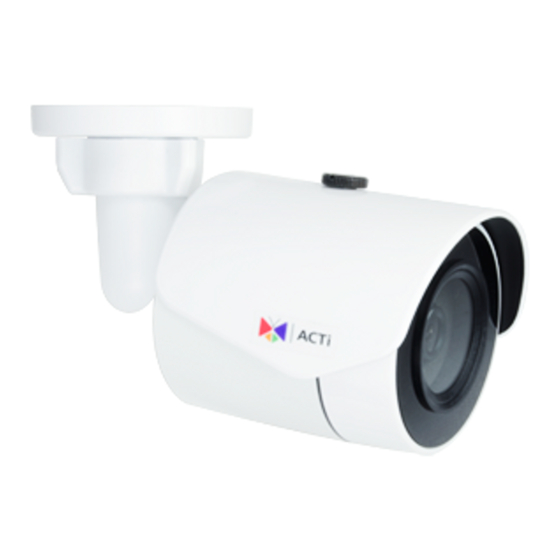

    Hardware Manual Introduction List of Models This hardware manual contains the following models: 2MP Mini Bullet with D/N, Adaptive IR, Extreme WDR, SLLS, Fixed lens www.acti.com...
  • Page 7: Package Contents

    Hardware Manual Package Contents Camera Mounting Screw Kit Drill Template Drill Template Cable Gland Washer Quick Installation Guide Warranty Card www.acti.com...
  • Page 8: Physical Description

    Connects to a network using a standard Ethernet cable. Reset Button Restores the factory default settings of the camera. Resetting the camera must be done while the power is on. See How to Reset the Camera on page 19 for more information. www.acti.com...
  • Page 9: Installation Procedures

    2. If the cable will pass through the surface, drill a Ø 22mm cable hole within the radius of the camera bracket. If the cable will be routed along the surface, route the cable through the gap on the bracket. 3. Mount the camera to the surface using the three (3) screws. www.acti.com...
  • Page 10 Hardware Manual 4. Loosen the knob to adjust the camera tilt and orientation. 5. Adjust the camera angle and orientation. Sample of Wall Installation Sample of Ceiling Installation 6. Tighten the knob to fix the tilt angle position. www.acti.com...
  • Page 11: Step 2: Connect And Manage The Cable

    Crimping Tool  Scissors Perform the following to waterproof the “pigtail” using the cable gland: 1. Attach the washer to the Ethernet connector of the camera. 2. Detach the clamping nut from the cable gland: Clamping Nut Gland Body www.acti.com...
  • Page 12 4. Insert the cable through the gland body. 5. Attach the RJ-45 connector to the cable. For pin mapping and detailed instructions, see How to Attach the RJ-45 Connector on page 22 for detailed information. 6. Connect the RJ-45 connector to the camera connector. www.acti.com...
  • Page 13 7. Attach the gland body to the camera connector. 8. Attach the clamping nut to the gland body to complete the cable solution. NOTE: Make sure the clamping nut is tightly attached to the cable gland body and the sealing insert is squeezed tightly. www.acti.com...
  • Page 14: Step 3: Connect To Network

    Step 4: Access the Camera Live View After making the connections, access the camera live view to adjust the viewing angle of the camera and configure the settings according to your preference. See Accessing the Camera on page 24 for more information. www.acti.com...
  • Page 15: Other Adjustments And Accessories

    There are three (3) holes in which to attach the set screw, use any one of them depending on the preferred viewing angle. The middle hole is used for horizontal view format and the two (2) others are for corridor format. www.acti.com...
  • Page 16: How To Install / Remove The Memory Card (Optional)

    Hardware Manual How to Install / Remove the Memory Card (Optional) 1. Remove the screw holding the sunshield. 2. Remove the sunshield. 3. Twist to open the front cover. www.acti.com...
  • Page 17 There are three (3) holes in which to attach the set screw, use any one of them depending on the preferred viewing angle. The middle hole is used for horizontal view format and the two (2) others are for corridor format. www.acti.com...
  • Page 18: How To Remove The Memory Card

    In case there is a need to remove the card, make sure to access the camera Web Configurator to safely “unmount” the card first (see the camera Firmware Manual for more information). Once unmounted from the firmware, simply pull the card from the slot. www.acti.com...
  • Page 19: How To Reset The Camera

    In case of IP address, mask, or allow/deny filter related issues, resulting with the inability to modify these settings  In case of connectivity issues or abnormal video quality Do the following procedures while the camera is powered on. 1. Remove the screw holding the sunshield. 2. Remove the sunshield. www.acti.com...
  • Page 20 4. Using a pointed object, press and hold the Reset button for at least five (5) seconds or until the Power LED lights up. NOTE: It is recommended to retain the silicon bag inside the cover. 5. Tightly close the camera front cover. www.acti.com...
  • Page 21 There are three (3) holes in which to attach the set screw, use any one of them depending on the preferred viewing angle. The middle hole is used for horizontal view format and the two (2) others are for corridor format. 7. Attach the set screw to secure the sunshield. www.acti.com...
  • Page 22: How To Attach The Rj-45 Connector

    3. Unwind the wires and arrange them according to the color sequence below. Stripe Orange Orange Stripe Green Blue Stripe Blue Green This side up Stripe Brown Brown 4. Straighten out the wires and use the scissors to make a straight cut ½ inch from the cut end. www.acti.com...
  • Page 23 5. With the RJ-45 connector tab facing down, push down the wires into the connector all the way to the end. 6. Place the connector into the crimping tool, and cinch down to secure the RJ-45 connector to the Ethernet cable. www.acti.com...
  • Page 24: Accessing The Camera

    Windows system – just by pressing the “Network” icon, all the cameras of the local area network will be discovered by Windows thanks to the UPnP function support of our cameras. In the example below, we successfully found the camera model that we had just connected to the network. www.acti.com...
  • Page 25 The IP Utility can be downloaded for free from http://www.acti.com/IP_Utility With just one click, you can launch the IP Utility and there will be an instant report as follows: You can quickly see the camera model in the list. Click on the IP address to automatically launch the default browser of the PC with the IP address of the target camera filled in the address bar of the browser already.
  • Page 26: Using The Default Camera Ip Address

    PC has to be configured to match the network segment of the camera. Manually adjust the IP address of the PC: In the following example, based on Windows 7, we will configure the IP address to 192.168.0.99 and set Subnet Mask to 255.255.255.0 by using the steps below: www.acti.com...
  • Page 27 In such case, please plug in only one camera at a time, and change its IP address by using the Web browser before plugging in the next one. This way, the Web browser will not be confused about two devices having the same IP address at the same time. www.acti.com...
  • Page 28: Access The Camera

    When using Internet Explorer browser, the ActiveX control for video stream management will be downloaded from the camera directly – the user just has to accept the use of such control when prompted so. No other third party utilities are required to be installed in such case. www.acti.com...
  • Page 29 HTTP port of the camera is 80, which can be omitted from the address for convenience. Before logging in, you need to know the factory default Account and Password of the camera. Account: Admin Password: 123456 www.acti.com...
