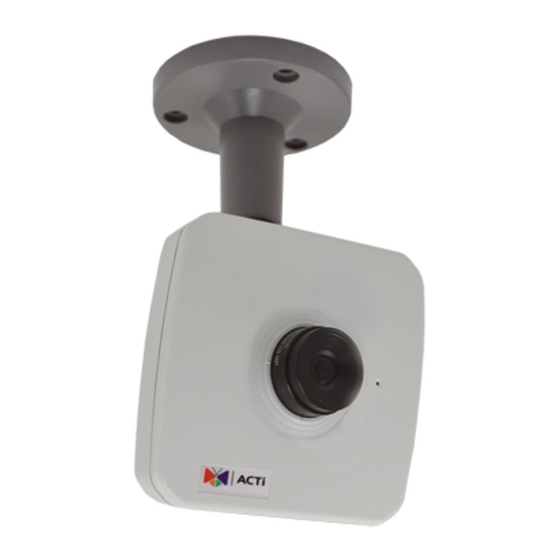

- Page 1 3MP Cube with Basic WDR, Fixed lens Hardware User’s Manual (PoE) Ver. 2012/10/22...
-
Page 2: Table Of Contents
E12 Hardware User’s Manual Table of Contents Precautions Introduction Package Contents ................4 Features and Benefits ..............5 Safety Instructions ................6 Physical description ................ 8 Basic Connections ................9 Product Specification ..............10 Accessing Camera If you have DHCP server / router in your network: ...... 11 If you do have DHCP server / router in your network: .. -
Page 3: Precautions
E12 Hardware User’s Manual 0. Precautions Read these instructions You should read all the safety and operating instructions before using this product. Heed all warnings You must adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instruction given may directly endanger people, cause damage to the system or to other equipment. -
Page 4: Introduction
E12 Hardware User’s Manual 1. Introduction Package Contents Camera Stand Accessories Warranty Card www.acti.com... -
Page 5: Features And Benefits
E12 Hardware User’s Manual Features and Benefits This is a cutting-edge digital video surveillance camera. It can compress and transmit real time images with outstanding image quality through a standard TCP/IP network. This camera is your best choice to build an intelligent IP surveillance system. -
Page 6: Safety Instructions
E12 Hardware User’s Manual Safety Instructions Don’t open the housing of the product Cleaning Disconnect this video product from the power supply before cleaning. Attachments Do not use attachments not recommended by the video product manufacturer as they may cause hazards. - Page 7 E12 Hardware User’s Manual Safety Check Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine if the video product is in proper operating condition. www.acti.com...
-
Page 8: Physical Description
E12 Hardware User’s Manual Physical description 1) Built-in Microphone 2) Audio Output The IP device supports audio output with earphone jack 3) Reset Button Step 1: Press and continue to hold the Reset Button for 15 seconds (with a sharp tipped object, like a pen.) after the unit has successfully completed the boot process. -
Page 9: Basic Connections
E12 Hardware User’s Manual Basic Connections Follow the procedures below to connect the IP device to the respective apparatuses. Please use a PoE (Power over Ethernet) supported switch or injector: 1) Connect your IP Camera to the PoE Switch / Injector by CAT5 or CAT6 cables with RJ45 connector. -
Page 10: Product Specification
E12 Hardware User’s Manual Product Specification • Device Device Type Cube Camera Image Sensor Progressive Scan CMOS Day / Night Minimum Illumination Color: 0.1 lux at F2.0 (30 IRE, 2400 °K) Mechanical IR Cut Filter IR Sensitivity Range Electronic Shutter 1/5 - 1/2,000 sec (Manual / Auto mode) •... -
Page 11: Accessing Camera
E12 Hardware User’s Manual 2. Accessing Camera If you have DHCP server / router in your network: Many network server / routers are able to automatically provide IP addresses through DHCP. If you are using such a network, just plug in your computer and IP Camera into the network and your IP device will acquire network address by itself. - Page 12 E12 Hardware User’s Manual Please set the settings as below. IP address: 192.168. 0.xxx Subnet mask: 255.255.255. (NOTE: xxx should be a number from 1 to 254 except 100, which is used by the IP device. Please also...
- Page 13 E12 Hardware User’s Manual 6. After logging in, you will see the video from camera. To go to the main menu, click the “Setup” button on the top left. If you are using a single camera, this is enough to access the device.
