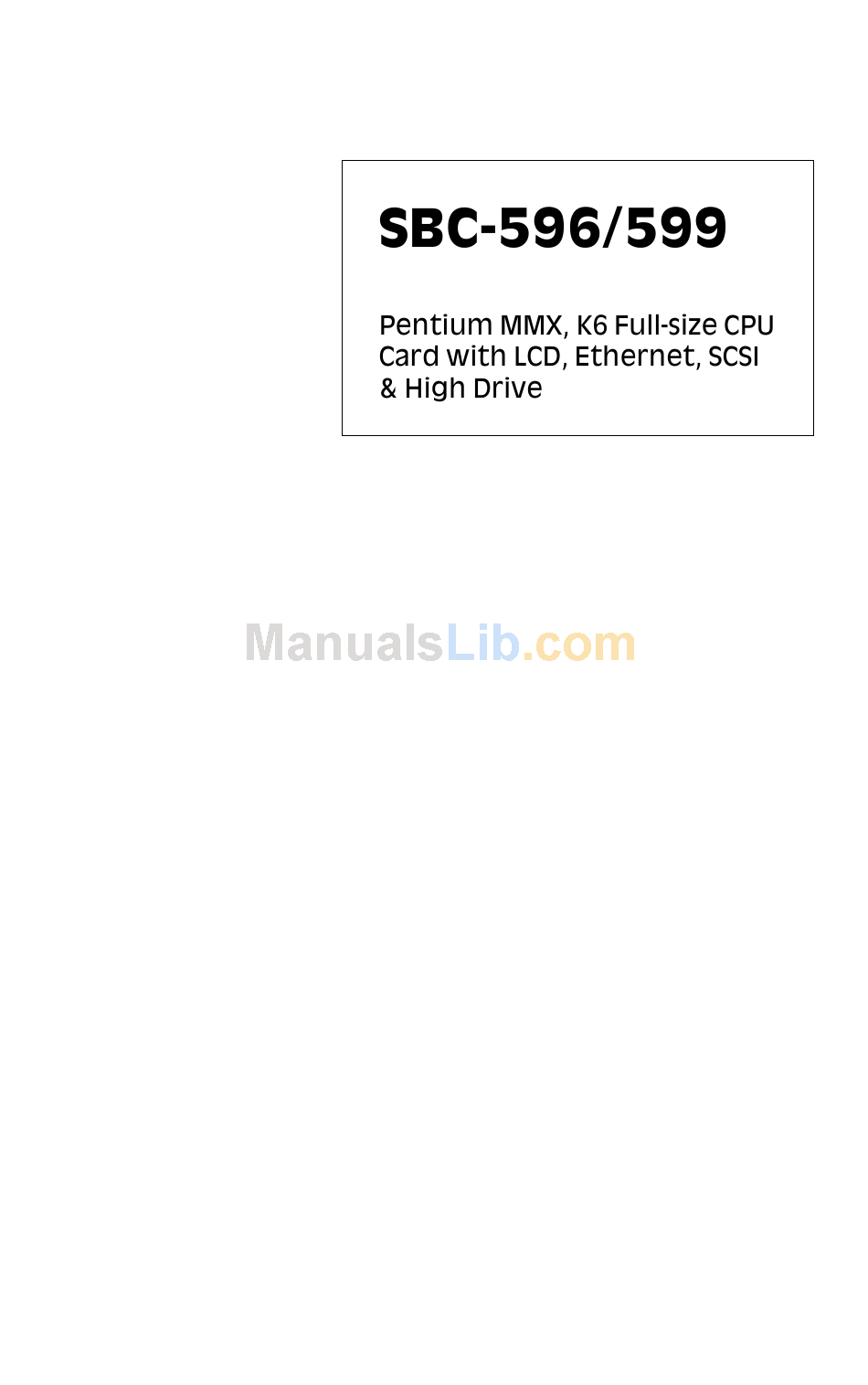

Adaptec SBC-596 Owner's Manual

Adaptec pentium mmx, k6 full-size cpu card with lcd, ethernet, scsi & high drive owner's manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Adaptec SBC-596

Summary of Contents for Adaptec SBC-596

  • Page 2 Adaptec, and EZ-SCSI are trademarks of Adaptec Inc. AMD is a trademark of Advanced Micro Devices, Inc. Award is a trademark of Award Software International, Inc.
  • Page 3 Seagate hard disk drives. Seagate promises to solve this issue in the new controller. Please check with Seagate for further informa- tion. We recommend users who plan to use the following Seagate hard disk drives models with the SBC-596/599 check with Seagate regarding the availability of a new controller: ST31277A 1.28 GB...
  • Page 4 SBC-596/599 series comparison table Refer to the SBC-596/599 features directly in the following manual & x x x x x x x x x x x x x x x x x x x x...
  • Page 5 Before you begin installing your card, please make sure that the following materials have been shipped: • 1 SBC-596/599 CPU Card • 1 Supporting CD-ROM • 1 IDE cables • 1 FDD cable • 1 PS/2 keyboard and mouse connector •...

  • Page 6: Table Of Contents

    Chapter 1 General Information ... 1 Introduction ... 2 Features ... 2 Specifications ... 3 Board layout and dimensions ... 5 Chapter 2 Installation Guide ... 7 Jumpers ... 8 Connectors ... 9 Locating jumpers ... 10 Locating connectors ... 11 Setting jumpers ...
  • Page 7 Reset connector (CN3) ... 20 Keyboard lock connector (CN4) ... 20 Fan power connector (CN5) ... 21 SCSI connectors (CN6, CN7) ... 21 IDE hard drive connectors (CN8, CN9) ... 21 Floppy connector (CN10) ... 22 Connecting the floppy drive ... 23 VGA interface connectors ...
  • Page 8 Chapter 4 Award BIOS Setup ... 39 System test and initialization ... 40 System configuration verification ... 40 AWARD BIOS setup ... 41 Entering setup ... 41 Standard CMOS setup ... 42 BIOS features setup ... 43 CHIPSET features setup ... 44 Power management setup ...
  • Page 9 Advanced host adapter settings ... 75 Using SCSISelect menus ... 77 Using the SCSI disk utilities ...78 Installing device drivers ... 79 Adaptec EZ-SCSI utility ... 80 Quick start instructions ... 80 Windows 95 or Windows NT ... 80 Windows/Windows for Workgroups 3.1X ... 81 DOS ...81...
  • Page 10 Appendix A Programming the Watchdog Timer ... 91 Programming the watchdog timer ... 92 Appendix B Pin Assignments ... 93 Speaker connector (CN1) ... 94 HDD LED connector (CN2) ... 94 Reset connector (CN3) ... 94 Power LED/keyboard lock connector (CN4) ... 95 Fan power connector (CN5) ...

  • Page 11: Chapter 1 General Information

    This chapter gives background information on the SBC-596/599. Sections include: • Introduction • Features • Specifications • Board layout and dimensions Chapter 1 General Information...
  • Page 12 The SBC-596/599 is a full-size CPU card. This card uses a Pentium processor based CPU and accommodates up to 256 MB DRAM. It also provides a secondary level 512 KB cache, 2 USB(Universal Serial Bus) ports and 63-level watchdog timer with jumperless setup.
  • Page 13 Standard PC system • CPU: Intel Pentium up to 233 MHz, P54C, P55C(MMX) AMD K5, K6 Cyrix 6x86, Cyrix 6x86MX • BIOS: AWARD Flash BIOS, supports plug & play • Chipset: Intel 430TX • Secondary level cache: 512 KB on board •...
  • Page 14 SCSI interface: (SBC-599 only) • PCI SCSI: Supports Ultra Wide SCSI 8-bit or 16-bit interface. Supports DoubleSpeed SCSI operation up to 40 MB/s • Chipset: Adaptec AIC-7880 LAN: (SBC-599 only) Supports 10 BaseT Ethernet networking - Controller: Realtek RTL8029 chipset...
  • Page 15 Dimensions in mm SBC-596/599 dimensions Chapter 1 General Information...
  • Page 16 SBC-596/599 User's Manual...

  • Page 17: Chapter 2 Installation Guide

    This Installation Guide tells how to set up the SBC-596/599 hardware, including instructions on setting jumpers and connecting peripherals, switches and indicators. Be sure to read all the safety precautions before you begin the installation procedure. Chapter 2 Installation Guide...

  • Page 18: Voltage Select (J1, J2, J3, And J4)

    The SBC-596/599 has a number of jumpers that allow you to configure your system to suit your applications. The table below lists the function of each of the board’s jumpers. SBC-596/599 User's Manual Voltage Select Voltage Select Voltage Select Voltage Select...
  • Page 19 Onboard connectors link the SBC-596/599 to external devices such as hard disk drives, a keyboard, or floppy drives. The table below lists the function of each of the board’s connectors. Connectors Speaker CON. HDD LED CON. Reset switch Power LED/keyboard Lock CON.
  • Page 20 SBC-596/599 User's Manual...
  • Page 21 CN20 CN18 CN15 CN14 CN11 CN10 CN16 CN13 UTP1 CN17 Chapter 2 Installation Guide CN19 CN12...
  • Page 22 A pair of needle-nose pliers may be helpful when working with jumpers. If you have any doubts about the best hardware configuration for your application, contact your local distributor or sales represen- tative before you make any changes. SBC-596/599 User's Manual...
  • Page 23 You can upgrade to a higher power Pentium processor at any time. Simply remove the old CPU, install the new one, and set the jumpers for the new CPU type and speed. Warning! Always ground yourself to remove any static Caution! charge before touching the PC board.
  • Page 24 J1, J2, J3, and J4 must be set to match the CPU type. The chart below shows the proper jumper settings for their respective V . (The V (core) cc (I/O) * default setting SBC-596/599 User's Manual for CPU is fixed to be 3.3V).
  • Page 25 This jumper sets the frequency ratio between the internal frequency of the CPU and the BUS Clock. If you use an AMD K6 CPU, please refer to J5 frequency ratio for K6 only. F.R. 1.5*** Default setting ** Jumper settings for pins 1 and 2 do not affect this setting *** For Intel 233 MHz MMX CPUs, F.R.
  • Page 26 2 close/open. * default setting J8 must be set together with J5 jumper to match the CPU internal frequency. The clock frequency times the Frequency Ratio equals the CPU’s internal frequency. 27.5 33.3 37.5 * default setting SBC-596/599 User's Manual...
  • Page 27 This jumper sets the CMOS data retention power supply by internal battery, external battery, or clear CMOS. * default setting This jumper sets the data transfered by SCSI to 16-bit (Wide SCSI enabled) or 8-bit (Wide SCSI disabled). * default setting For high-drive ISA bus systems, in order to increase system stability, you may delay the ISA timing for 1 or 2 clock pulses.
  • Page 28 This jumper sets the display type for the CPU card. * default setting This jumper sets single power/dual power CPU type. Current Intel CPUs marked “Pentium” have only a single power plane and those marked “Pentium with MMX” have dual power planes. * default setting SBC-596/599 User's Manual...
  • Page 29 The SBC-599 CPU card provides four 72-pin SIMM (Single In- line Memory Module) sockets and supports either Fast Page Mode (FPM) or Extended Data Output (EDO) DRAM with a speed of 70 ns or faster. You can install up to 256 MB of RAM. NOTE 1: Pentium or compatible processors adopt 64 bit data bus.

  • Page 30: Speaker Connector (Cn1)

    (CN3) for resetting the card, and a keyboard lock connector (CN4). Speaker connector (CN1) The SBC-596/599 can drive an 8 W speaker at 0.5 watts. Ensure that alternatives to this specification do not overload the card. Close pins 3 and 4 to enable the buzzer.
  • Page 31 You can attach up to four Enhanced Integrated Device Electron- ics hard disk drives to the SBC-596/599 internal controller. The SBC-596/599 IDE controller uses a PCI local-bus interface. This advanced IDE controller supports faster data transfer and allows the IDE hard drive to exceed 528 MB.
  • Page 32 On the other end are two sets of floppy disk drive connectors. Each set consists of a 34-pin flat-cable connector (usually used for 3½” drives) and a printed-circuit board connec- tor (usually used for 5¼” drives). SBC-596/599 User's Manual...
  • Page 33 1. Plug the 34-pin flat-cable connector into CN10. Make sure that the red wire corresponds to pin one on the connector. 2. Attach the appropriate connector on the other end of the cable to the floppy drive(s). You can use only one connector in the set.
  • Page 34 The SBC-599 PCI SVGA interface supports 5V and 3.3V LCD displays. By changing the setting of J12, you can select the panel video signal level to be 5V or 3.3V. SBC-596/599 User's Manual...
  • Page 35 Refer to Chapter 3 for details on connecting the four standard LCD’s: Sharp LM64183P, LM64P89, Toshiba LTM10C042, Sharp 64C142, and Planar EL Display. The SBC-596/599 board provides two keyboard connectors. A 5-pin connector (CN12) supports passive backplane applica- tions. A second 6-pin mini-DIN connector (CN19) supports both a keyboard and a PS/2 style mouse.
  • Page 36 The SBC-596/599 has two serial ports, COM1 and COM2, to provide connections for serial devices (a mouse, etc.) or a communication network. You can find the pin assignments for the COM port connectors in Appendix B. The IRQ and the address range for COM1, 2, are fixed. However, if you wish to disable the port or change these parameters later you can do this in the system BIOS setup.
  • Page 37 The SBC-596/599 provides two USB (Universal Serial Bus) interfaces which gives complete plug and play, hot attach/detach for up to 127 external devices. The USB interfaces comply with USB specification rev. 1.0 and are fuse protected. The USB interfaces are accessed through two 5-pin flat-cable connectors, CN18 and CN20.
  • Page 38 IRQ11. This can be set via setting J14 as shown below: *System reset * default setting For information on programming the watchdog timer, see Appendix SBC-596/599 User's Manual IRQ11...

  • Page 39: Chapter 3 Software Configuration

    Software Configuration This chapter details the software configuration information. It shows you how to configure the card to match your application requirements. AWARD System BIOS is covered in Chapter 4. Sections include: • Introduction • Utility with IDE Bus Master driver •...

  • Page 40: Utility

    The SBC-596/599 system BIOS and custom drivers are located in a 128 Kbyte, 32-pin (JEDEC spec.) Flash ROM device. A single Flash chip holds the system BIOS, VGA BIOS, and network Boot ROM image. The display can be configured via software. This method minimizes the number of chips and eases configuration.
  • Page 41 AWDFLASH.EXE This program allows you to write the VGA display driver files to the BIOS Flash ROM. The VGA files all come ready formatted for the SBC-599 with .BIN extensions. They are custom written and can be made available upon request. 599_CRT.BIN System BIOS which supports CRT only 599_TFT.BIN...
  • Page 42 BIOS. Press N to exit the program. The new VGA configuration will then write to the ROM BIOS chip. This configuration will remain the same until you run the AWDFLASH.EXE program and change the settings. SBC-596/599 User's Manual...
  • Page 43 Pin name CN1-1 CN1-2 CN1-3 CN1-4 DISP CN1-5 CN1-6 CN1-7 CN1-8 CN1-9 CN1-10 CN1-11 CN1-12 CN1-13 CN1-14 CN1-15 *LM64183P -17V LM64P89 -20V Pin name SHFCLK +5 V +5 V external power* Chapter 3 Software Configuration...
  • Page 44 Pin name VCLK /BLANK SELFTST COLMAP ENABLE RESERVED /LOWPOW 31,32 RESERVED SBC-596/599 User's Manual Pin name — — — — — — — — ASHFCLK — — — — — — — — — — — — — — —...
  • Page 45 Pin name ENAB Pin name SHFCLK Chapter 3 Software Configuration...

  • Page 46: External Power

    CN1-1 CN1-2 CN1-3 CN1-4 DISP CN1-5 CN1-6 CN1-7 CN1-8 CN1-9 CN1-10 CN1-11 CN1-12 CN1-13 CN1-14 CN1-15 CN2-1 CN2-2 CN2-3 CN2-4 CN2-5 CN2-6 CN2-7 CN2-8 CN2-9 CN2-10 *external power SBC-596/599 User's Manual Pin name SHFCLK +5 V +5 V +27 V*...
  • Page 47 The SBC-599 on-board Ethernet interface supports all major network operating systems. To configure the medium type, to view the current configuration, or to run diagnostics, do the following: 1. Power the SBC-599 on. Ensure that the RSET8029.EXE file is located in the working drive. 2.
  • Page 48 SBC-596/599 User's Manual...

  • Page 49: Chapter 4 Award Bios Setup

    This chapter describes how to set BIOS configuration data. Chapter 4 Award BIOS Setup...
  • Page 50 3. The CMOS memory has lost power and the configuration information has been erased. The SBC-596/599 CMOS memory has an integral lithium battery backup. The battery backup should last ten years in normal service, but when it finally runs down, you will need to replace the complete unit.

  • Page 51: Award Bios Setup

    Award’s BIOS ROM has a built-in Setup program that allows users to modify the basic system configuration. This type of information is stored in battery-backed CMOS RAM so that it retains the Setup information when the power is turned off. Entering setup Power on the computer and press <Del>...

  • Page 52: Standard Cmos Setup

    Once a field is highlighted, on-line help information is displayed in the left bottom of the Menu screen. *Your BIOS configuration screen will look similar to this screen capture. The actual screen may vary, owing to different BIOS versions SBC-596/599 User's Manual...

  • Page 53: Bios Features Setup

    INITIAL SETUP SCREEN menu, the screen below is displayed. This sample screen contains the manufacturer’s default values for the SBC-596/599. *Your BIOS configuration screen will look similar to this screen capture. The actual screen may vary, owing to different BIOS...

  • Page 54: Chipset Features Setup

    INITIAL SETUP SCREEN menu, the screen below is displayed. This sample screen contains the manufacturer’s default values for the SBC-596/599. *Your BIOS configuration screen will look similar to this screen capture. The actual screen may vary, owing to different BIOS...

  • Page 55: Power Management Setup

    INITIAL SETUP SCREEN menu, the screen below is dis- played. This sample screen contains the manufacturer’s default values for the SBC-596/599. *Your BIOS configuration screen will look similar to this screen capture. The actual screen may vary, owing to different BIOS...

  • Page 56: Pnp/Pci Configuration

    Initial Setup Screen menu, the screen below is displayed. This sample screen contains the manufacturer’s default values for the SBC-596/599. *Your BIOS configuration screen will look similar to this screen capture. The actual screen may vary, owing to different BIOS versions SBC-596/599 User's Manual...

  • Page 57: Integrated Peripherals

    INITIAL SETUP SCREEN menu, the screen below is displayed. This sample screen contains the manufacturer’s default values for the SBC-596/599. *Your BIOS configuration screen will look similar to this screen capture. The actual screen may vary, owing to different BIOS...

  • Page 58: Load Bios Defaults

    (and therefore unusable), these defaults will load automatically when you turn the SBC-596/599 on. *Your BIOS configuration screen will look similar to this screen capture. The actual screen may vary, owing to different BIOS versions SBC-596/599 User's Manual...

  • Page 59: User Password

    USER PASSWORD To change the password, choose the USER PASSWORD option form the Setup main menu and press <Enter>. 1. If the CMOS is bad or this option has never been used, a default password is stored in the ROM. The screen will display the following messages: Enter Password: Press <Enter>.
  • Page 60 This record is required for the system to operate. Selecting this option and pressing <Enter> lets you exit the Setup program without recording any new values or changing old ones. SBC-596/599 User's Manual...

  • Page 61: Chapter 5 Pci Svga Setup

    The SBC-599 features an on-board PCI flat panel/VGA interface. This chapter provides instructions for installing and operating the software drivers on the included Supporting CD-ROM. Chapter 5 PCI SVGA Setup (SBC-599 only)

  • Page 62: Before You Begin

    Review the relevant operating system com- mands and the pertinent sections of your application software’s user’s manual before performing the installation. SBC-596/599 User's Manual...

  • Page 63: Simultaneous Display Mode

    The drivers include Windows 3.1, Windows 95, Windows NT drivers, and OS/2 drivers. The 65550 VGA BIOS supports monochrome LCD, EL, color TFT and STN LCD flat panel displays. It also supports interlaced and non-interlaced analog monitors (VGA color and VGA monochrome) in high-resolution modes while maintaining complete IBM VGA compatibility.

  • Page 64: Sleep Mode

    Supporting CD-ROM to a directory on the hard disk, understand the MS-DOS directory structure. If you are uncertain about any of these concepts, please refer to the DOS or Windows user reference guides for more information before you proceed with the installation. SBC-596/599 User's Manual...

  • Page 65: Windows Setup

    Before you begin The display driver contains drivers for several versions of certain applications. You must install the correct version in order for the driver to work properly so make sure you know which version of the application you have. Windows setup These drivers are designed to work with Microsoft Windows 3.1.
  • Page 66 To change the color scheme, select the Control Panel from the Main window. Select the Color icon. You will be shown the current color scheme. Choose a new color scheme and click the OK button. SBC-596/599 User's Manual...
  • Page 67 1. Boot system with VGA or SuperVGA driver. 2. Select properties from a menu after right button press. 3. Select display. 4. Select Change Display. 5. Select Change Monitor. 6. Select Change Adapter. 7. Select Have Disk. Chapter 5 PCI SVGA Setup (SBC-599 only)
  • Page 68 2. Click on Test to test the newly selected graphics mode. A color test screen should appear, followed by the Testing Mode window. 3. Click on Yes to continue. The Display Settings Change window will appear. 4. Click on Restart Now for the new settings to take effect. SBC-596/599 User's Manual...
  • Page 69 The following steps must be performed before you install the 65550/554 display driver: 1. OS/2 DOS Support must be installed. 2. If you previously installed SVGA support, you must reset the system to VGA mode. VGA is the default video mode enabled when OS/2 is installed.
  • Page 70 Make sure to remove the install diskette before restarting the system. When the system has restarted, the display driver will be initialized for 640x480x256 Color, 60Hz refresh. To switch to a different video resolution, color depth, or refresh rate, follow the steps below. SBC-596/599 User's Manual...

  • Page 71: Selecting Screen Resolution/Refresh Rate

    Monitor type is initially set to DEFAULT. This DEFAULT setting may not allow you to select all resolution/refresh combinations that are available for your monitor. The following steps can be done to select monitor type. This section applies only after installation, or when a different monitor is used.
  • Page 72 “corrupted” display. This is normal, as the configura- tion process is doing Video BIOS mode sets to determine which screen resolutions BIOS supports. This configuration information is then used to provide the System-Settings Resolution and Refresh selections. SBC-596/599 User's Manual...

  • Page 73: Chapter 6 Scsi Setup And Configuration

    The SBC-599 is equipped with two SCSI interfaces. This chapter provides basic SCSI concepts and instructions for installing the software drivers with the included SCSI driver diskettes. At the end of this chapter provides the SCSI device troubleshooting tips. Chapter 6 SCSI Setup and Configurations...

  • Page 74: Scsi Id Numbers

    The SBC-599 is equipped with an Adaptec AIC-7880 Ultra Wide PCI-to-Ultra SCSI host adapter which provides a powerful multitasking interface between your computer’s PCI bus and SCSI devices (disk drives, CD-ROM drives, scanners, tape backups, removable media drives, etc.). Up to a total of 15 SCSI devices can be connected to the internal or external SCSI connector on AIC-7880.
  • Page 75 The AIC-7880 supports the SCSI Configured AutoMatically (SCAM) protocol, which assigns SCSI IDs dynamically and resolves SCSI ID conflicts automatically at bootup. If your system includes SCSI disk drives or other devices that support SCAM, you do not need to manually assign SCSI IDs to these devices.
  • Page 76 Automatic. The following table lists the termination configura- tions. The following figures show termination examples for the AIC- 7880. Devices Connected 68-pin internal connector only 50-pin internal connector only 50-pin and 68-pin internal connectors AIC-7880 Ultra Wide SCSI Termination SBC-596/599 User's Manual Termination High High...
  • Page 77 AIC-7880 Ultra Wide SCSI Termination High Chapter 6 SCSI Setup and Configurations...

  • Page 78: Connecting Internal Scsi Devices

    If you are connecting internal SCSI devices, make sure you have an internal SCSI cable with enough connectors to accommodate all of your devices. Prepare each SCSI device for installation; configure the device SCSI ID and terminators (terminate the last internal device attached to the cable). SBC-596/599 User's Manual...
  • Page 79 Access the SCSI BIOS by holding down both CTRL and A keys when you see the BIOS banner message listing the driver name and the attached devices. For example: Adaptec AIC-7880 Ultra /Wide W BIOS v1.26 (c) 1996 Adaptec, Inc. All Rights Reserved. <<<Press <Ctrl><A> for SCSISelect(TM) Utility>>>...
  • Page 80 Select the default of “Low ON/High ON?” and press Enter, then use the up and down arrows to make your new selection and press Enter. Press ESC to go back to the Options menu. Press ESC again and select Yes to exit the program. SBC-596/599 User's Manual...

  • Page 81: Basic Host Adapter Settings

    Host Adapter SCSI ID SCSI Parity Checking Host Adapter SCSI Termination Boot Target ID Boot LUN Number Initiate Sync Negotiation Maximum Sync Transfer Rate Enable Disconnection Initiate Wide Negotiation Send Start Unit Command Plug and Play SCAM Support Host Adapter BIOS Support Removable Disks Under BIOS as Fixed Disks Extended BIOS Translation for DOS Drives >1 GByte Display <Ctrl-A>...

  • Page 82: Boot Device Settings

    SCSI bus. To configure a specific device, you must know the SCSI ID assigned to that device. If you are not sure of the SCSI ID, see Using the SCSI Disk Utilities. SBC-596/599 User's Manual...
  • Page 83 Initiate Sync Negotiation - This option determines whether the host adapter initiates synchronous data transfer negotiation (Sync Negotiation) between the device and host adapter. The default setting is Yes. Synchronous negotiation is a SCSI feature that allows the host adapter and its attached SCSI devices to transfer data in synchronous mode.
  • Page 84 No to achieve slightly better performance. Send Start Unit Command – This option determines whether the Start Unit Command is sent to the SCSI devices at boot up (most devices do not require this). The default setting is SBC-596/599 User's Manual...

  • Page 85: Advanced Host Adapter Settings

    Setting this option to yes reduces the load on your computer’s power supply by allowing the host adapter to start SCSI devices one-at-a-time when you boot your computer. When set to No, the devices are allowed to start at the same time. Most devices require you to set a jumper before they can respond to this command.
  • Page 86 1 GByte. To support disk drives larger than 1 GByte, the Ultra Wide SCSI includes an extended translation scheme. This scheme supports disk drives as large as 8 GBytes under MS_DOS with a maximum partition size of 2 GBytes. SBC-596/599 User's Manual...
  • Page 87 Extended BIOS Translation is used only with MS-DOS 5.0 or above. You do not need to enable this option if you are using another operating system such as NetWare, OS/s, Windows NT, or UNIX. When you partition a disk larger than 1 GByte, use the MS-DOS disk utility as you normally would.
  • Page 88 Most SCSI disk devices are preformatted at the factory and do not need to be formatted again. The Adaptec Format Disk utility is compatible with the vast majority of SCSI disk drives. Caution: A low-level format destroys all data on the drive. Be sure to back up your data before performing this operation.
  • Page 89 Adaptec EZ-SCSI – allows you to install software drivers for DOS/Windows 3.x and several additional utilities. Adaptec 7800 Family Manager Set – allows you to install software drivers for NetWare, OS/2, Windows 95, Windows NT, and UNIX. Refer to the 7800 Family Manager Set User’s Guide.

  • Page 90: Quick Start Instructions

    Adaptec EZSCSI gives you what you need to use your SCSI devices most effectively with Windows 95 and Windows NT. You can also use Adaptec EZSCSI on computers running DOS, Windows 3.1x, or Windows for Workgroups 3.1x. First, install SCSI devices (see the hardware documentation for details).
  • Page 91 Review this checklist if your newly installed SCSI disk drives, CDROM drives, and other devices do not seem to work properly: Be sure that termination is correctly set for all devices on the SCSI bus, as described in your host adapter documentation. Be sure there are no hardware conflicts such as devices in your computer trying to use the same interrupts (IRQs) or DMA channels.
  • Page 92 Double-click the SCSI Controllers icon, select the name of the old host adapter, and click Remove. Turn OFF the computer and physically remove the currently installed host adapter. Install the new host adapter according to the instructions in the hardware documentation. SBC-596/599 User's Manual...
  • Page 93 CD-Recorder drives can use the embedded Windows miniport drivers). To install the Adaptec EZSCSI DOS drivers, click the Start button and select Restart the computer in MS-DOS mode. When the DOS prompt appears, follow the Quick Start instructions for DOS.
  • Page 94 When you are finished running Adaptec EZSCSI for DOS, find the file named cdtsd.vxd in the windows\system\iosubsys directory and rename it cdtsd.sav. My CD-ROM drive shows up as more than one icon under My Computer. The mapping between mscdex, which runs in real mode, and the Windows95 CDROM driver does not match.

  • Page 95: Windows 95/Windows Nt Troubleshooting

    The following information may be useful if you install Adaptec EZSCSI on a computer running DOS, Windows 3.1x, or Windows for Workgroups 3.1x. Note: The Windows 95/Windows NT Troubleshooting section describes a few situations when you may need to use the DOS/Windows 3.1x drivers and...
  • Page 96 Adaptec EZSCSI includes several ASPI managers for DOS/ Windows 3.1x. When you install Adaptec EZSCSI on these operating systems, it detects what kind of host adapter is installed in your computer and automatically configures your system with the correct ASPI manager. To learn more about these...
  • Page 97 When the next screen appears, select either Format or Verify (to verify that the disk is free of surface defects), then press Enter. WARNING: Back up important data before you format the disk device! A low-level format erases all data from the disk. If you select Format, confirm that you want to format the disk, then wait while the disk device is formatted.
  • Page 98 5. To change the size of the partition, use the arrow keys to select Start Cylinder and End Cylinder, and type in the numbers you want. Partitions up to 2GBytes are supported. SBC-596/599 User's Manual...
  • Page 99 When the number of cylinders is what you want, press Esc. When the confirmation prompt appears, select Yes and press Enter to create the partition. To create more partitions on the same disk device, repeat steps 3,4, and 5. As you create partitions on the disk., they are added to the window at the upper right of the screen.
  • Page 100 SBC-596/599 User's Manual...

  • Page 101: Programming The Watchdog Timer

    The SBC-596/599 is equipped with a watchdog timer that resets the CPU or generates an interrupt if processing comes to a standstill for whatever reason. This feature ensures system reliability in industrial standalone, or unmanned, environments. Chapter A Programming the Watchdog Timer...
  • Page 102 1070 RETURN 2000 Subroutine #2, you application task 2090 RETURN SBC-596/599 User's Manual REM Start and restart the REM Your application task #1 REM Reset the timer REM Your application task #2 REM Reset the timer REM Disable the watchdog...
  • Page 103 This appendix contains information of a detailed or specialized nature. It includes: • Speaker connector • HDD LED connector • Reset connector • Power LED/keyboard lock connector • Fan power connector • Wide SCSI connector • SCSI connector • IDE hard drive connectors •...
  • Page 104 SBC-596/599 User's Manual 1 2 3 4 Signal Signal Signal...
  • Page 105 1 2 3 4 5 Signal PWLED KLOCK 3 2 1 Signal +12 V Chapter B Pin Assignments...
  • Page 106 Function TRMPWR SCD12 SCD14 SCDPH SCD1 SCD3 SCD5 SBC-596/599 User's Manual 3 4 3 3 ..68 67 36 35 Function TRMPWR SCD13 SCD15 SCD0 SCD2 SCD4 SCD6...
  • Page 107 Function SCD7 TRMPWR SATIN- SBSY- SRST- SSEL- SREQ- SCD8 SCD10 Function SCDPL TRMPWR SACK- SMSG- SCD- SIO- SCD9 SCD11 Chapter B Pin Assignments...
  • Page 108 Function SBC-596/599 User's Manual 49 47 50 48 Function SCD0 SCD1 SCD2 SCD3 SCD4 SCD5 SCD6 SCD7 SCDPL TRMPWR SATIN- SBSY- SACK- SRST- SMSG- SSEL- SCD- SREQ- SIO-...
  • Page 109 33 31 34 32 Signal IDE RESET* DATA 7 DATA 6 DATA 5 DATA 4 DATA 3 DATA 2 DATA 1 DATA 0 SIGNAL GND HDD 1 IO WRITE IO READ HD READY HDACK 0* IRQ15/IRQ14** ADDR 1 ADDR 0 HARD DISK SELECT 0* IDE ACTIVE* * Low active...
  • Page 110 Signal Pin * Low active SBC-596/599 User's Manual 33 31 34 32 Signal DENSITY SELECT* INDEX* MOTOR 0* DRIVE SELECT 1* DRIVE SELECT 0* MOTOR 1* DIRECTION* STEP* WRITE DATA* WRITE GATE* TRACK 0* WRITE PROTECT* READ DATA* HEAD SELECT*...
  • Page 111 43 41 44 42 Function +12 V 5V/3.3V ENAVEE* SHFCLK/ASHFCLK KB_DT N/C** * Low active ** If R60 is connected, this pin is ENAVDD Function +12 V 5V/3.3V ENABKL* KB_CK 5V/3.3V Chapter B Pin Assignments...
  • Page 112 SBC-596/599 User's Manual Signal KB_CK KB_DT...
  • Page 113 Signal Chapter B Pin Assignments...

  • Page 114: Printer Port Connector ( Cn14)

    13 12 26 25 SBC-596/599 printer port connector (CN14) Signal STROBE* ACK* BUSY SLCT * Low active SBC-596/599 User's Manual 1 5 14 Signal AUTOFD* INIT* SLCTINI*...

  • Page 115: Ir Connector (Cn15)

    5 4 3 2 1 SBC-596/599 IR connector (CN15) Signal IR IN IR OUT Signal GREEN BLUE Signal H-SYNC V-SYNC Chapter B Pin Assignments...
  • Page 116 SBC-596/599 Keyboard and mouse connector (CN19) SBC-596/599 User's Manual 5 4 3 2 1 Signal +5 V Signal KB DT MS_DT KB_CK MS_CK...
  • Page 117 9 7 5 3 1 10 8 6 4 2 Signal XMT+ XMT- RCV+ RCV- Chapter B Pin Assignments...
  • Page 118 SBC-596/599 User's Manual...
  • Page 119 Chapter C IRQ Default Settings...
  • Page 120 IRQ12 IRQ11 IRQ10 IRQ9 IRQ7 IRQ6 IRQ5 IRQ4 IRQ3 * IRQ 0, 1, 2, 8, 13 have been reserved for the system. SBC-596/599 User's Manual IDE 2 IDE 1 (PS/2 mouse) USB/(SCSI) (LAN) LPT1 Floppy disk LPT 2 COM1 COM2...
