INSTALLATION
INSTRUCTION
GENERAL
These condensing units are designed for outdoor installation
on a roof or at ground level. Every unit is completely piped and
wired at the factory and is shipped ready for immediate installa-
tion. Only the liquid and suction lines to the evaporator coil, the
control wiring and the main power wiring are required to com-
plete the installation. Each unit is dehydrated, evacuated, leak
tested and pressure tested at 450 psig before being pressur-
ized with a holding charge of refrigerant-22 for shipment and/or
storage.
All controls are located in the front of the unit and are readily ac-
cessible for maintenance, adjustment and service. All wiring
(power and control) can be made through the front of the unit.
Installer should pay particular attention to the words: NOTE, CAUTION and WARNING. Notes are intended to clarify or make the
installation easier. Cautions are given to prevent equipment damage. Warnings are given to alert installer that personal injury
and/or equipment damage may result if installation procedure is not handled properly.
Supersedes: Nothing
MODELS HDHB180 & 240
REFERENCE
This instruction covers the installation and operation of the ba-
sic condensing unit. For information on the installation and op-
eration of the evaporator blower units, refer to instruction Form
550.23-N4W.
All accessories come with a separate installation manual.
Refer to Parts Manual for complete listing of replacement parts
on this equipment.
All forms may be ordered from:
SPLIT-SYSTEM
CONDENSING UNITS
(AIR COOLED)
035-17393-000 Rev. A (0501)
Standard Register
2101 West Tecumseh Road
Norman, OK 73069
Advertisement
Table of Contents
Related Manuals for Unitary products group HDHB180
Summary of Contents for Unitary products group HDHB180
-
Page 1: General

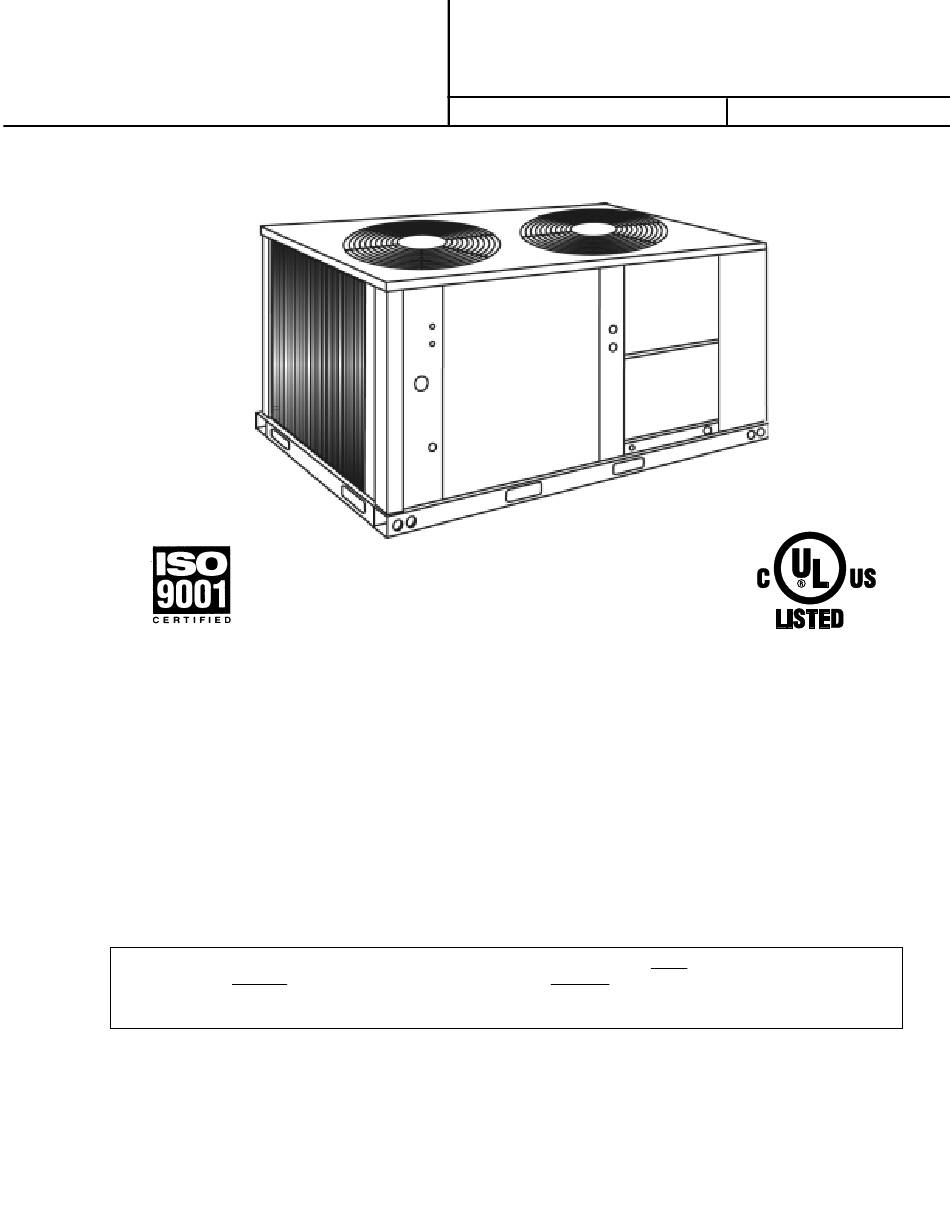

CONDENSING UNITS (AIR COOLED) INSTRUCTION Supersedes: Nothing 035-17393-000 Rev. A (0501) MODELS HDHB180 & 240 GENERAL These condensing units are designed for outdoor installation REFERENCE on a roof or at ground level. Every unit is completely piped and This instruction covers the installation and operation of the ba- wired at the factory and is shipped ready for immediate installa- sic condensing unit. -
Page 2: Table Of Contents
H = Split-System Condensing Unit NOMINAL COOLING CAPACITY PRODUCT GENERATION 180 = 15 Ton 240 = 20 Ton VOLTAGE CODE PRODUCT IDENTIFIER D = 4th Generation -T = 208/230-3-60 HB = Condensing Unit -W = 460-3-60 -X = 573-3-60 Unitary Products Group... -
Page 3: Installation
Units may also be moved or lifted with a fork-lift from the front, the entire unit weight. Refer to Figure 1 and Table 2 for load dis- rear or the compressor end only through the slotted openings tribution and weights. provided in the base rails. Unitary Products Group... -
Page 4: Clearances
4. Operating refrigerant charge is for the condensing unit and the matching York air handler, but does not include the charge in the interconnecting piping. See Table to determine the additional refrigerant charge required for interconnecting piping. Unitary Products Group... -
Page 5: Typical Field Wiring
2. The 208-230 V compressors and motors use a single tap f or the entire range of voltages. The 208/230 V to 24 V transf o have dif f erent taps f or 208 and 230 V . Unitary Products Group... -
Page 6: Electrical Data
Adequate snow clearance must be provided if winter operation is expected. is expected. FIG. 4 - UNIT DIMENSIONS AND CLEARANCES 4 - POINT LOAD (LBS) UNIT TOTAL FIG. 5 - POINT LOADS Unitary Products Group... -
Page 7: Refrigerant Piping
Since the refrigerant gas velocity may be too low to maintain good oil return up a vertical riser, use the next smaller size. The larger size may be used for horizontal runs for a lesser pressure drop. Unitary Products Group... -
Page 8: Liquid Lines
22.3 24.5 26.9 68.5 17.1 18.8 20.6 22.7 24.9 27.4 76.0 17.5 19.1 21.0 23.1 25.4 27.9 84.0 17.8 19.5 21.4 23.5 25.8 28.4 1. Capacities are net ratings. 2. Power is for the condensing unit only. Unitary Products Group... -
Page 9: Extending The Service Ports
CAUTION: Do not charge liquid refrigerant through the com- 2. Connect a supply of dry nitrogen to this access port. pressor suction connection. NOTE: The filter-drier should be installed in the liquid line as close to the evaporator coil as possible. Unitary Products Group... -
Page 10: Alternate Charging Method
SCREWS COPPER 2 SCREWS CORNER SIDE VIEW POST (AS SHIPPED) UNIT PUSH SERVICE WALL PORTS THROUGH TOP VIEW CORNER POST SERVICE PORTS TIGHTEN SCREWS EXTENDED SIDE VIEW SERVICE PORTS EXTENDED FIG. 6 - EXTENDING THE SERVICE PORTS Unitary Products Group... -
Page 11: Charging Curve For Hhb180
105°F Ambient 95°F Ambient 85°F Ambient 75°F Ambient Suction Pressure FIG.7 - CHARGING CURVE FOR HHB180 Charging Curve HDHB240 115°F Ambient 105°F Ambient 95°F Ambient 85°F Ambient 75°F Ambient Suction Pressure FIG. 8 - CHARGING CURVE FOR HHB240 Unitary Products Group... -
Page 12: Start-Up
After the time delay has elapsed, 1TR-1 cycling switch (PSC). The condenser fan cycling switch (PSC) contacts are opened, once again allowing low pressure to trig- ger the lock out circuit if the low pressure switch opens. Unitary Products Group... -
Page 13: Safety Features
Clean as often as nec- essary with a brush, vacuum cleaner attachment or other suit- COMPRESSOR REPLACEMENT able means. Contact the local UPG Distribution Center for compressor or parts. Unitary Products Group... - Page 14 035-17393-000 Rev. A (0501) Unitary Products Group...
- Page 15 035-17393-000 Rev. A (0501) Unitary Products Group...
- Page 16 035-17393-000 Rev. A (0501) Subject to change without notice. Printed in U.S.A. Copyright by Unitary Products Group 1998. All rights reserved. Code: SBL, F, E Supersedes: Nothing 035-17393-000 Rev. A (0501) Unitary 5005 Interstate Norman Oklahoma Products Drive 73069...
