Location 128 - Partition One.
Location 129 - Partition Two.
Location 130 - Partition Three
Location 131 - Partition Four
Location 132 - Partition Five
Location 133- Partition Six
Location 134 - Partition Seven
Location 135 - Partition Eight
S
u
b
o l
c
t a
o i
This location is bitmapped with each LED representing a zone.
Illuminated LED'S represent the zones in the selected partition. Enter
the number of the zone followed by the [
zones. By default all zones are allocated to partition 1 and no zones
are allocated to the other partitions.
To move to the next page of zones (zones 17 - 32), press just the [
key (as opposed to the zone number followed by the [
On reaching the next page any zones which are allocated to the
partition being programmed will be flashing.
Zones 17 - 32 are allocated to LEDís as indicated in the table.
To exit the current page press the [
54

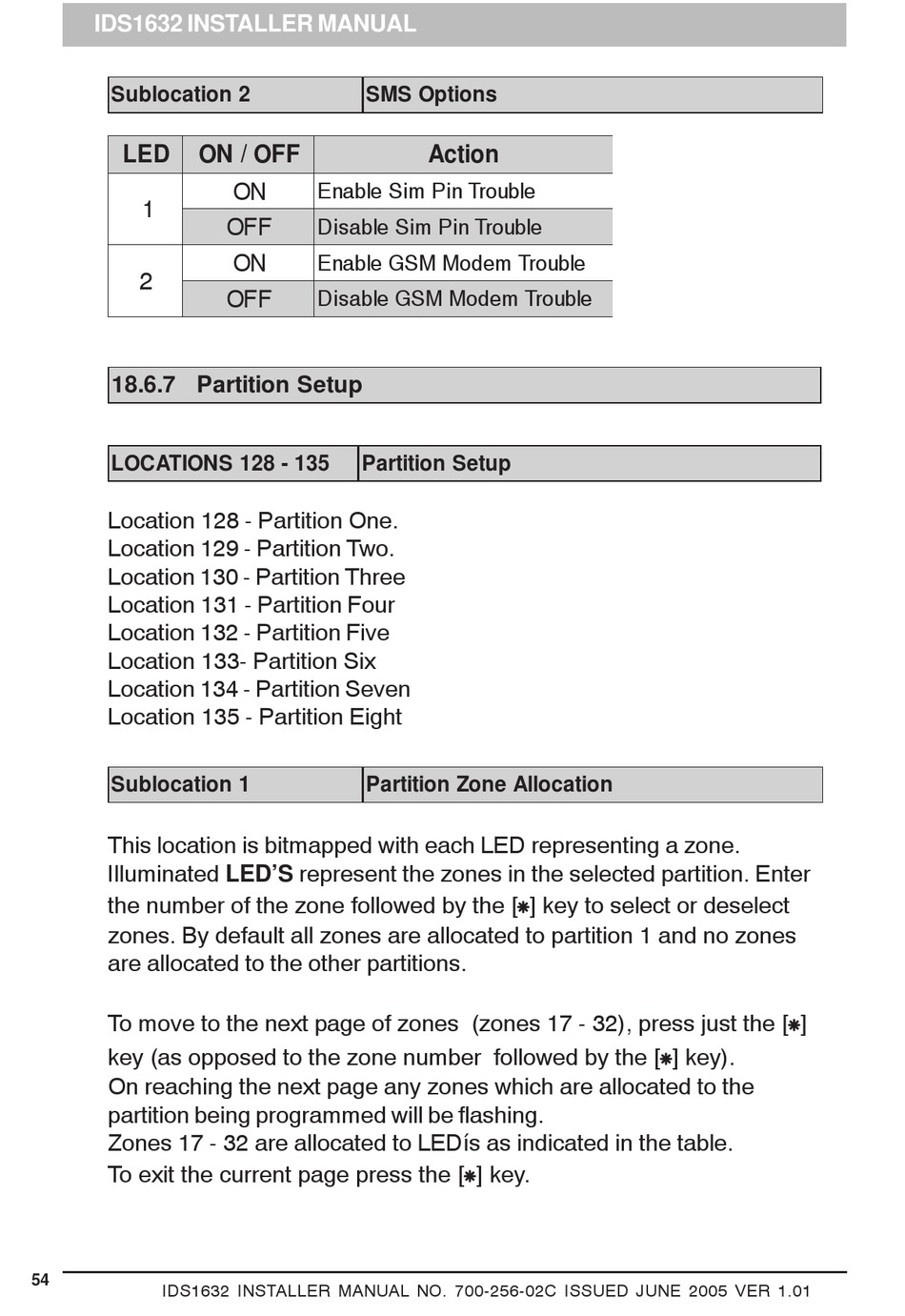

IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01
