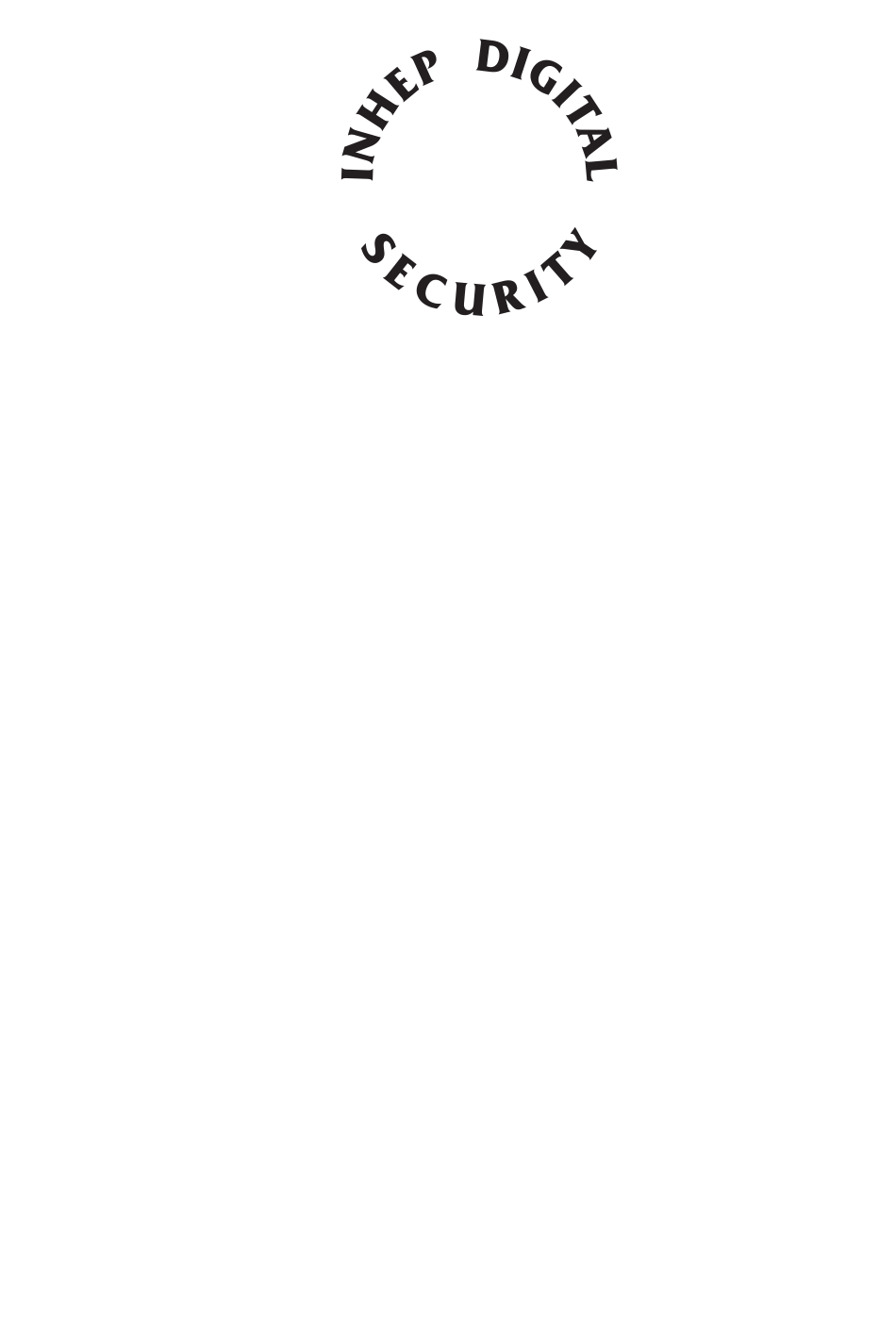

IDS
IDS1632
IDS1632
Installer Guide to Wiring and
Keypad Programming
MANUAL NO. 700-256-02 C ISSUED JUNE 2005 VERSION 1.01

Advertisement

loading
Need help?

Need help?

Do you have a question about the IDS1632 and is the answer not in the manual?

Questions and answers

Related Manuals for Inhep Digital Security IDS1632

Summary of Contents for Inhep Digital Security IDS1632

  • Page 1 IDS1632 IDS1632 Installer Guide to Wiring and Keypad Programming MANUAL NO. 700-256-02 C ISSUED JUNE 2005 VERSION 1.01...
  • Page 2 18.6.7 Partition Setup ..........54 18.6.8 User Options ..........65 18.6.9 Programmable Output Options ...... 72 18.6.10 Keypad Options ..........75 18.6.11 Installer Options ..........77 Location Tables ............78 IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 3 Programmable Outputs ......... 39 Table 9: Value for Day of the Week ......40 Table 10: Standard Contact I.D Reporting Codes ..46 Table 11: Location Number - User Codes ..... 64 IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 4 For correct operation the IDS1632 must be used in conjunction with the specified transformer/battery combination and appropriate peripheral sensors and signalling devices.
  • Page 5 The panel can be programmed to arm /disarm at a pre-determined time. Fax defeat / answering machine override. Dual reporting provides for duplicated reporting to two independent central base stations. Dynamic battery self test. Low battery cutout circuit. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 6 NC + NC + Direct Download MAG SW N/C Port MAG SW N/C Radio Transmitter / Communicator Power ZONE DOOR +12V Battery Aux 1A Panic Button AC Mains 16V AC IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 7 Panic zones always register panic and tamper conditions. The colour codes for the 12K and 4K7 resistors are as per in Figure 4. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 8 The colour codes for the 4K7 and 12K resistors are shown in Figure 4. The box tamper input does not require an end-of- line resistor and requires a normally closed contact. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 9 12 volt source with a 56Ω series resistor. Current sink is via a 1000Ω resistor to negative. For information purposes, the output circuitry for a single output is shown in Figure 5. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 10 A 12V sealed lead acid battery with a minimum capacity of 7AH must be used. The back up period after mains failure will depend IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 11 ID assigned to them. It is however good practice to default the system by using the reset switch prior to commencement of programming. This will ensure that the above is true and that no factory test values remain. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 12 [#] hash key to allocate a new I.D to the defaulted keypad. Keypad I.D’s are allocated incrementally. The I.D of any keypad can be interograted by viewing the data in location 446 from the keypad of interest. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 13 (1ís) and zone indicator 5-8 indicate 10ís. To read a binary value on the keypad sum the values represented by each illuminated LED as shown in Table 1: IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 14 Standard locations which are single tiered and do not contain any sub-locations. ï Extended locations which are double tiered and have sub-locations. Both standard and extended locations may contain further sub categories refered to as bit mapped locations. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 15 Enter the [LOCATION NUMBER] of the program location you wish to view or change. Press the [ ] key. The READY indicator will continue flashing and the AWAY indicator will illuminate. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 16 Press the [#] hash key twice to exit from program mode. A bitmapped location allows the installer to program multiple panel features within a single location or sublocation. This is IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 17 In the case of extended locations the AWAY and ARMED indicators will remain illuminated after the error beeps. Re-enter the correct data. There is no need to press the [#] key. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 18 There are twelve zone types. Table 4 provides a location/zone cross-reference together with the default zone characteristics. s t l / y r t i x o l l IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 19 IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 20 . x i t i x l l i Note: Select all the options for each zone. Shaded areas in the table indicate default values This is a bitmapped location. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...

  • Page 21: Cross Zoning

    24 hour self test report is generated. See Sublocation 5 of Locations 109 and110 [Partition Setup] IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 22 This code will be transmitted if a partition is programmed to allow forced arming (arming with a violated zone) and a zone is violated at the time of arming. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 23 1 to 5. The second digit sets the output action. Refer to the table below for a list of actions. Refer to Section 18.6.4 for a detailed description on Programming Programmable Ouputs. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 24 1 - 32. Valid range of data for this location is 1 - 15. ) t l t l u The zone loop response is the period of time for which the IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 25 Select this response time for a zone by enabling option 5 in the zone properties sublocation. ) t l Determines the cross zone delay timer period. ) t l IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 26 Program zones as cross zones in Sub Location 2 of locations [1 - 32]. Any single zone enabled for cross zoning, which is violated continuously for the time specified in Location 36 will also register an alarm condition. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 27 IDS1632 INSTALLER MANUAL t i t t i t l l u t l u IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 28 Provided the back up battery is in good condition, short AC power failures will not affect the functioning of the alarm system. Select the appropriate value from the table above. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 29 POWER LED. Not withstanding the disabling of a trouble condition from the viewing menu the relevant code will be reported if programmed to do so. The trouble condition can be viewed by holding down the [7] key for IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 30 ) t l . n i . n i . n i . n i . n i . n i . n i . n i . n i IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 31 The power LED and if appropriate the arm LED will remain illuminated. This location determines whether 4 or 6 digit user / installer codes are applicable. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 32 AC failure was registered as per location 47. A low battery condition is reported when the battery voltage drops below 11.8V for a period longer than 5 minutes or immediately if it drops below 10V. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 33 This code is reported when there is a fault on the keypad bus This code is reported when the box tamper contacts are open for a period of 200ms. This code is reported when the dedicated panic zone is violated. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 34 4V. Use the alarm memory to determine which PIR has the low battery. Hold down the [0] key, then press [5]. This reporting code will be reported when the RF PIR battery voltage rises above 4V for 1 hour. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 35 Wired Zone Expander module. When selecting outputs, programmable outputs on the IDS1632 alarm panel are addressed from ë1í to ë8í. Outputs on the Wired Zone Expander are addressed as ë9íí and ë10í. Please refer to table 6.
  • Page 36 (Table 7). For example: Entering a value of [1][0] into location 70 will cause Panel Prog Output 1 to be set (latched) high in the event of an AC IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 37 When connecting any device with a high current requirement to a programmable output a suitable relay must be used. DO NOT connect such devices directly to the programmable outputs as this may damage the output circuitry. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 38 IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 39 It may be used to trigger switching from the telephone line to a radio transmitter. Enter the system time. The format is ìhhmmî and is based on a 24 hour clock. All 4 digits must be entered. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 40 Enter the current day of the week. Refer to table below. Enter the month when Daylight Saving will commence. Enter which day of the week Daylight saving is to commence. Refer to Location 102 Table 9. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 41 If the last week of the month is wanted program a five (5). This location is used for setting the Daylight Saving offset. Enter the number of minutes the clock will offset - Valid range 0 - 250. ) t l IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 42 (single reporting) or to report independently to 2 central stations (dual reporting). The primary and secondary telephone numbers may be joined to provide for a single telephone number of 48 digits in length. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 43 Most reporting formats use a 4 digit account code. SIA format has the capability of using a 6 digit account code. Program a 6 into this location to enable six digit account code reporting. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 44 This indicates a successful transmission of data. If dual reporting is enabled then this format will be used to report to phone number 2. See Table for location 116. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 45 Contact I.D reporting codes. Any event that relates to a specific zone, or to a specific user, will have the relevant zone/user number appended to the end of the Contact I.D reporting code. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 46 Pressing the [#] key on the phone will terminate the reporting process. If the [#] key is not pressed, the panel will dial the number of times as programmed into location 115 (number of dial attempts). IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 47 This is especially useful when using Contact I.D or SIA formats. It is important to note that these locations affect all reporting formats. These are bitmapped locations. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 48 IDS1632 INSTALLER MANUAL l i a l i a IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 49 IDS1632 INSTALLER MANUAL IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 50 Entering a value of [13] - [MODE] then [3] will provide a 12 second pause and a value of [12 ] mode then [2] will provide a 4 second pause IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 51 This location contains the secondary telephone number. A maximum of 24 digits can be entered. Enter the digits consecutively and after the last digit has been entered terminate with a [0]. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 52 ìanswersî the telephone line. In the event that the panel answers the call and no valid download log on sequence is received within 40 seconds the panel will terminate the call. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 53 The number programmed into this location is required for the operation of the module. Any smsís sent to the number programmed into Location 126, Sublocation 2 require the SIM Card Pin Number. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 54 On reaching the next page any zones which are allocated to the partition being programmed will be flashing. Zones 17 - 32 are allocated to LEDís as indicated in the table. To exit the current page press the [ ] key. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 55 This account code is only used when dual reporting is enabled. It is reported to Telephone Number 2 IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 56 Quick Arm: This option allows the user to arm the panel by holding down the [1] key for two seconds until the keypad beeps. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...

  • Page 57: Engineer Reset

    The partition can only be armed after the engineer has entered a valid installer code. A trouble condition will be displayed on the keypad if enabled in location 40. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 58 Select the appropriate exit delay period from the table above. If an IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 59 Select the appropriate value for the primary entry delay from the table. ) t l This entry delay begins after the violation of a primary entry/exit zone. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 60 Sub Location 10. This Bitmapped sublocation sets the days on which the partition will autoarm at the time programmed in sublocation 9. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 61 This Bitmapped sublocation sets the days on which the partition will auto-disarm at the time programmed in sublocation 11. Note: Auto Disarm, if required must be enabled per partition.See sublocation 4. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 62 These keypads can be used to access this partition with the [MODE] key. t i t For all these sublocations a two digit hexadecimal code must Note: be programmed. To disable a reporting code a double zero (00) must be entered. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 63 This code is reported when a keypad lockout condition occurs. t i t See section 17.6.4 for details on programming the programmable outputs. The table below summarizes the partition specific events that can be assigned to the outputs. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 64 IDS1632 INSTALLER MANUAL t i t f i r IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 65 LED were extinguished it will now illuminate and visa versa. To exit this mode press [#]. The IDS1632 provides for 250 user codes. These locations allow the installer to configure the user code properties. When the panel is defaulted, User Code 1 defaults to 1234 and is a Master User Code.
  • Page 66 IDS1632 INSTALLER MANUAL IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 67 IDS1632 INSTALLER MANUAL IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 68 IDS1632 INSTALLER MANUAL IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 69 IDS1632 INSTALLER MANUAL IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 70 This is a bitmapped sublocation. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 71 A silent alarm or silent panic will not cause the cancel code to be reported. This is displayed on an LCD Keypad only IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 72 Enter the time in ëhhmmí as per a 24 hour clock. Enter the time in ëhhmmí as per a 24 hour clock. Locations 388 to 399 allow the installer to setup the timing characteristics of each programmable output individually. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 73 Outputs can be scheduled to set and reset at specified times on specific days of the week. To disable scheduling of an output ensure that all ìdaysî are deselected . IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 74 Enter the time using ìhhmmî format at which the output is to be SET LOW. 4 digits must be input. This bitmapped sublocation determines on which day(s) an output will turn OFF. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 75 This sublocation assigns the partition to which a keypad will default (after a timeout period of 20 seconds), if used to access a partition other than the partition as programmed in this location. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 76 Keypad zones are mapped according to Keypad I.D as shown in the table. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 77 3K3 resistor. This location deallocates RF Devices. To deallocate an RF device enter its zone number followed by the [ ] star key. Press the [#] hash key to exit location. IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 78 IDS1632 INSTALLER MANUAL t l u t l u t l u / l i t l u t l u l l a s t i u l i IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 79 IDS1632 INSTALLER MANUAL u l i l i a . t t . t t l i a u l i l i a IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 80 IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 81 IDS1632 INSTALLER MANUAL b l l t i t t i t o l l t i t t i t IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
  • Page 82 IDS1632 INSTALLER MANUAL t i t t i t t i t t i t e l l IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01...
