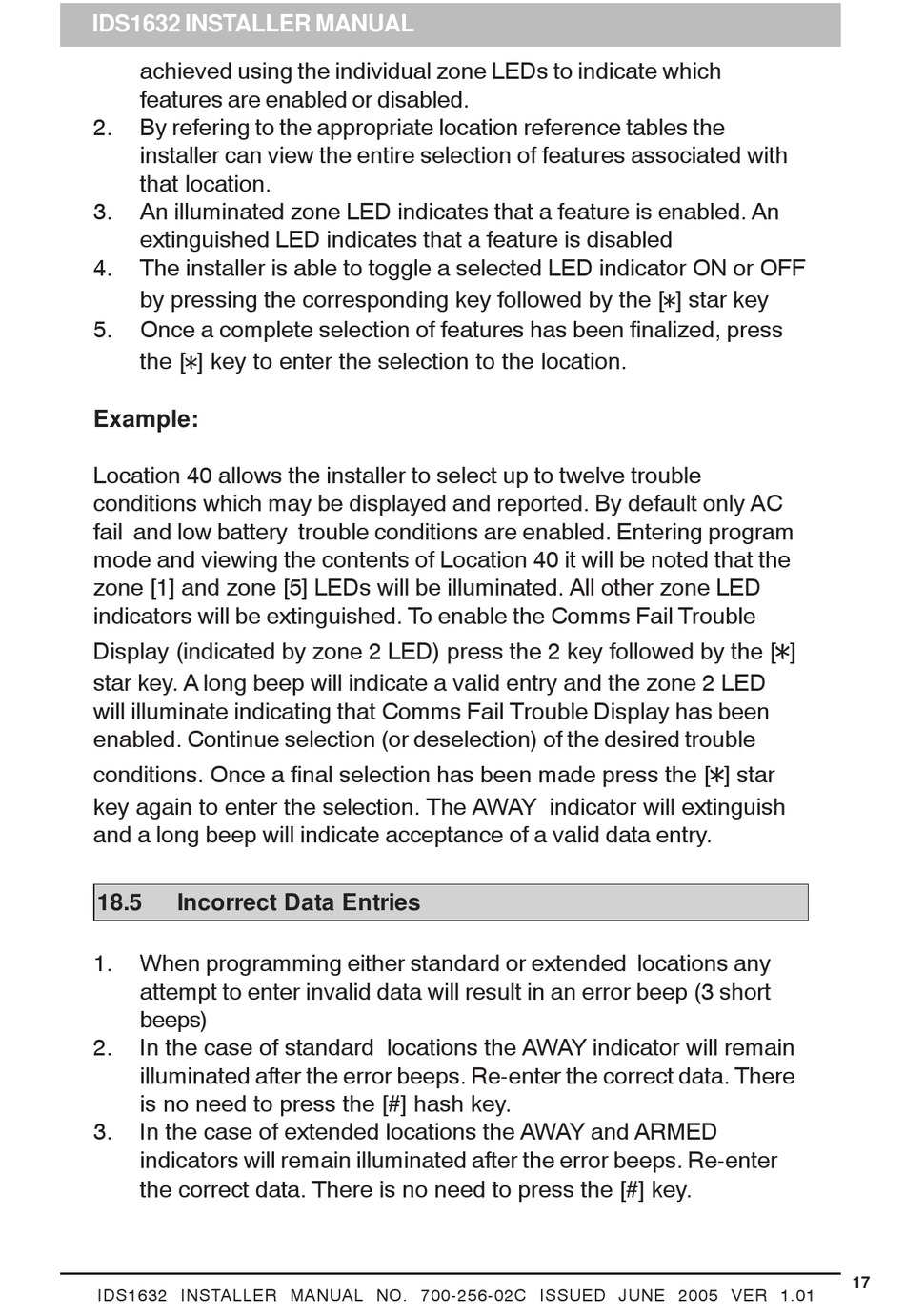

IDS1632 INSTALLER MANUAL
achieved using the individual zone LEDs to indicate which
features are enabled or disabled.
2.
By refering to the appropriate location reference tables the
installer can view the entire selection of features associated with
that location.
3.
An illuminated zone LED indicates that a feature is enabled. An
extinguished LED indicates that a feature is disabled
4.
The installer is able to toggle a selected LED indicator ON or OFF
by pressing the corresponding key followed by the [
5.
Once a complete selection of features has been finalized, press
(
the [
] key to enter the selection to the location.
Example:
Location 40 allows the installer to select up to twelve trouble
conditions which may be displayed and reported. By default only AC
fail and low battery trouble conditions are enabled. Entering program
mode and viewing the contents of Location 40 it will be noted that the
zone [1] and zone [5] LEDs will be illuminated. All other zone LED
indicators will be extinguished. To enable the Comms Fail Trouble
Display (indicated by zone 2 LED) press the 2 key followed by the [
star key. A long beep will indicate a valid entry and the zone 2 LED
will illuminate indicating that Comms Fail Trouble Display has been
enabled. Continue selection (or deselection) of the desired trouble
conditions. Once a final selection has been made press the [
key again to enter the selection. The AWAY indicator will extinguish
and a long beep will indicate acceptance of a valid data entry.
1
8
5 .
n I
c
r o
e r
t c
1.
When programming either standard or extended locations any
attempt to enter invalid data will result in an error beep (3 short
beeps)
2.
In the case of standard locations the AWAY indicator will remain
illuminated after the error beeps. Re-enter the correct data. There
is no need to press the [#] hash key.
3.
In the case of extended locations the AWAY and ARMED
indicators will remain illuminated after the error beeps. Re-enter
the correct data. There is no need to press the [#] key.
IDS1632 INSTALLER MANUAL NO. 700-256-02C ISSUED JUNE 2005 VER 1.01
D
a
a t
E
n
r t
e i
s
(
] star key
(
]
(
] star
17
