- Page 1 Basic 6T/W #02020 English – GB Translation of original operating instructions WOOD SPLITTER © Güde GmbH & Co. KG - Birkichstrasse 6 - D-74549 Wolpertshausen - Germany...
- Page 4 Please read carefully the Operating Instructions before putting the appliance into operation A.V. 2 Any reprints, even partial, are subject to approval. Technical changes reserved! Pictures just for illustration purposes! Translation of original operating instruction. Environment protection: Marking on the appliance Explanation of symbols The following symbols are used in these Operating Instructions Dispose waste professionally...

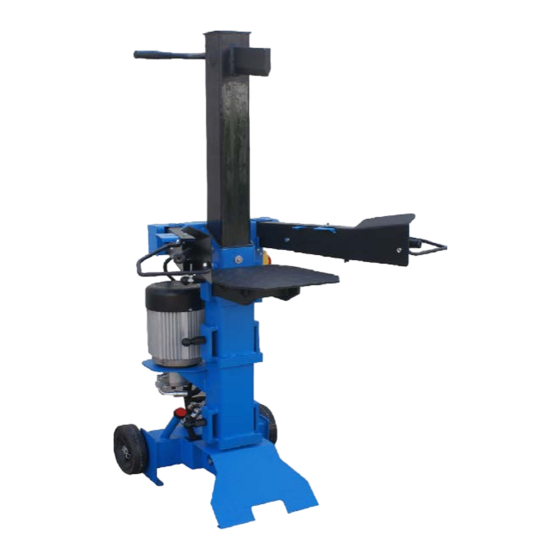

- Page 5 Appliance Please wear appropriate protective clothing! BASIC 6T/W WOOD SPLITTER Workplace Robust design, splitting knife out of special steel, all steel parts To ensure safe wood splitting, it is necessary that the with high-quality powder coating, high-quality hydraulic pump.
- Page 6 • Add the hydraulic oil up to the upper notch on the dipstick Operating staff requirements (pic. 10/2) • Try the wood splitter with no load several times. The operating staff must carefully read the Operating Instructions before using the appliance. Recommended hydraulic oil: DIN ISO HLP 46 Güde Art.
-
Page 7: Operation
6. Lift at least one lever after you have finished splitting – the Area of application splitter pillar will automatically go up. The appliance can only be used for wood processing. The split material must have the following dimensions: It is strictly prohibited to operate the wood splitter in two persons with one holding wood and the other one Minimum diameter: 120 mm pressing on the clamping plates.
