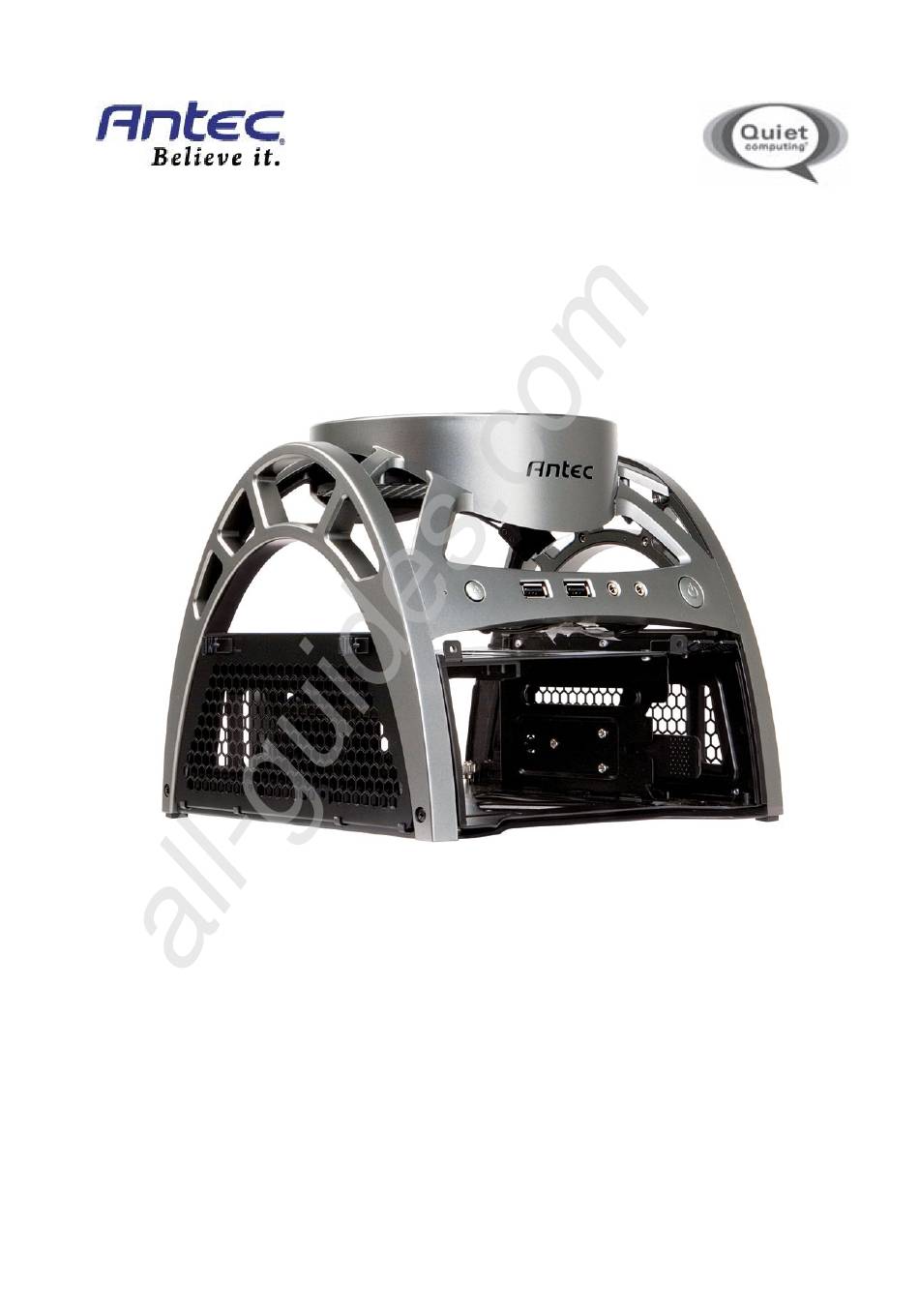

- Page 1 All manuals and user guides at all-guides.com KELETON ’ ANUAL...
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com ABLE OF ONTENTS NTRODUCTION Case Specifications……………………………………………………………………………………….. 3 Diagram………………………………………………………………………………………………………… 3 EP-90 Power Supply Specifications……………………………………………………………….. 4 ARDWARE NSTALLATION UIDE Removing/Replacing the Component Tray…………………………………………………… 5 Motherboard Installation……………………………………………………………………………… 5 5.25” Device Installation………………………………………………………………………………. 6 2.5” Device External Installation…………………………………………………………………… 6 2.5”... - Page 3 THINK BEYOND THE BOX At Antec, we continually refine and improve our products to ensure the highest quality. It’s possible that your new case will differ slightly from the descriptions in this manual. This isn’t a problem; it’s simply an improvement.
-
Page 4: Case Specifications
All manuals and user guides at all-guides.com PECIFICATIONS Case Type Open-Air Mini-ITX Color Metallic Silver 7.5” (H) x 8.3” (W) x 9.1” (D) Dimensions 190mm (H) x 210mm (W) x 230mm (D) Weight 5.5 lbs / 2.5 kg 1 x 150mm 3-Speed Blue LED Overhead Fan Cooling 1 x 70mm Rear Intake Fan 2 x Quick Release 2.5”... -
Page 5: Power Supply Specifications
All manuals and user guides at all-guides.com EP-90 P OWER UPPLY PECIFICATIONS The Mini Skeleton-90 is powered by an EP-90 power adapter. Input Characteristics: Rated Voltage Input Voltage Range Frequency Range 100 VAC ~ 240 VAC 90 VAC ~ 264 VAC... -
Page 6: Hardware Installation Guide
All manuals and user guides at all-guides.com ARDWARE NSTALLATION UIDE This manual is not designed to cover CPU, RAM, or expansion card installation. Please consult your motherboard user’s manual for specific mounting instructions and troubleshooting. Before proceeding, check the manual for your CPU cooler to find out if there are steps you must take before installing the motherboard. -
Page 7: Device Installation
All manuals and user guides at all-guides.com 5.25” D EVICE NSTALLATION 1. In your tool bag, find one of the black screws and attach one to your 5.25” device at the right upper side. 2. While facing the front of the case, insert your 5.25” device into the slot in the Component Tray until it locks into position. -
Page 8: Device Frame-Mounted Installation
OUNTED NSTALLATION Your Antec Mini Skeleton case has the ability to mount up to two additional 2.5” devices externally on the Frame for additional storage capacity. 1. Align your 2.5” device with the included 2.5” device mounting plates and secure them together with the included screws. -
Page 9: Connecting The Front I/O Ports
All manuals and user guides at all-guides.com I/O P ONNECTING THE RONT ORTS USB 2.0 P ORTS Connect the front I/O panel USB cable to the USB header pin on your motherboard. Check your motherboard user’s manual to ensure that it matches the table below: AC’97 HD A UDIO... -
Page 10: Power Switch / Reset Switch / Hard Disk Drive Led Connectors
ESET WITCH RIVE ONNECTORS Connected to the front of the Mini Skeleton-90 case Frame are LED and switch leads for power, reset, and HDD LED activity. Attach these to the corresponding connectors on your motherboard. Consult your motherboard manual for specific pin positions. -
Page 11: Cooling System
All manuals and user guides at all-guides.com OOLING YSTEM ™ F VERHEAD Because of the Mini Skeleton’s unique and innovative open-air design, one 150mm intake fan cools all of your system components. This overhead fan is adjustable to three different speeds, allowing you to choose the best speed suited to your needs. - Page 12 US & Canada 1-800-22ANTEC customersupport@antec.com Europe +31 (0) 10 462-2060 europe.techsupport@antec.com www.antec.com © Copyright 2009 Antec, Inc. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited.
