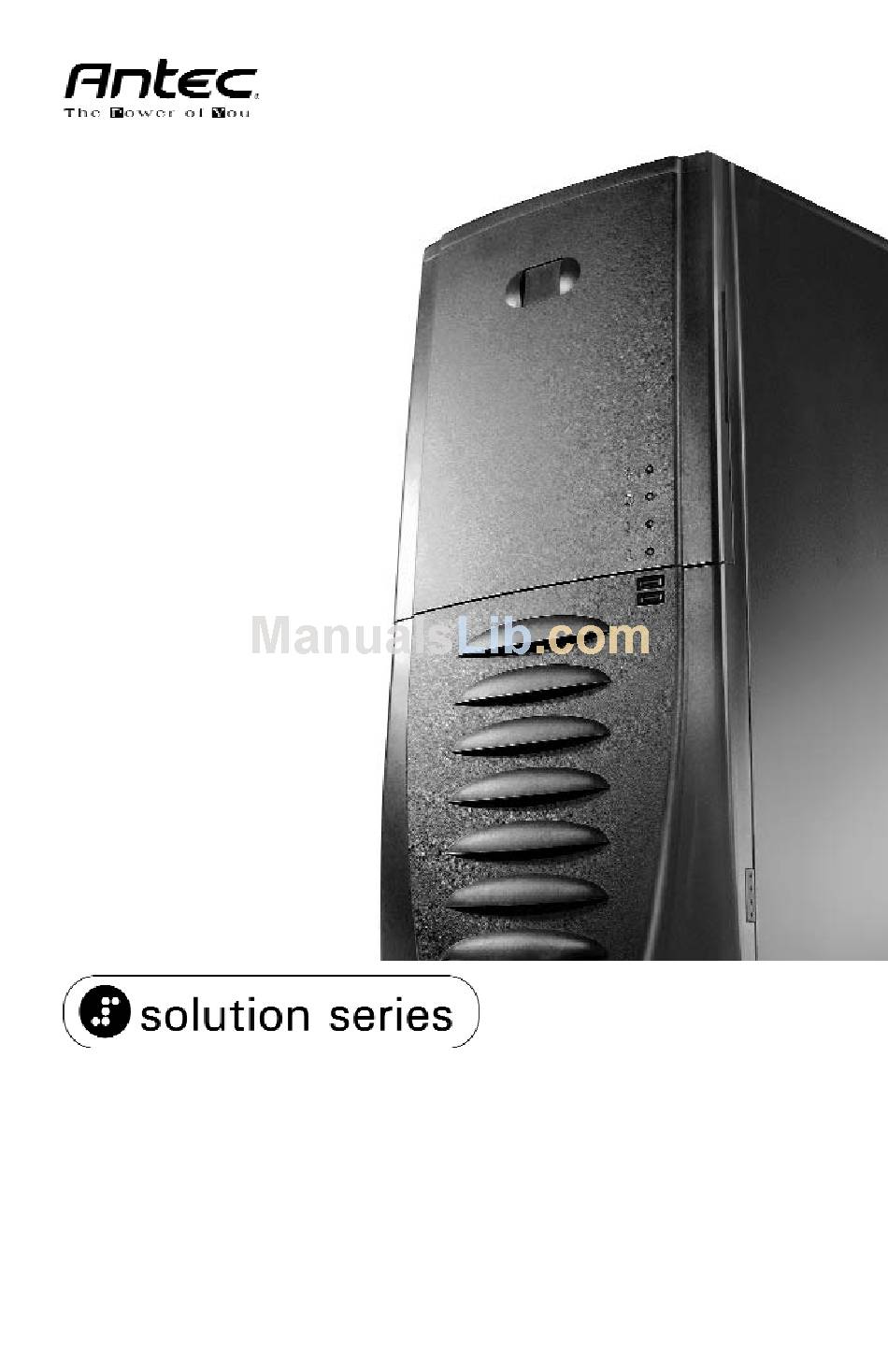

- Page 1 SLK3800B User’s Manual Manuel de l’utilisateur Anwenderhandbuch Manuale per l’operatore Manual del usuario...
- Page 2 As of the date of publication, all features, descriptions, and illustrations in this manual are correct. Disclaimer This manual is intended only as a guide for Antec's Computer Enclosures. For more comprehensive instructions on installing your motherboard and peripherals, please refer to the user's manuals which come with your components and drives.
- Page 3 Installing the Motherboard This manual does not cover CPU, RAM, or expansion card installation. Please consult your motherboard manual for specific mounting instructions and troubleshooting. 1. Lay the case down, with the open side facing up. The drive cages and power supply should be visible.
- Page 4 If it does not match this Intel standard, please call Antec customer service at (800) 22ANTEC (North America) or +31 0 (10) 462-2060 (Europe) to buy a USB adapter. This adapter will allow you to connect the front USB to your motherboard on a pin-by-pin basis.
- Page 5 High if you choose to connect the fan to a fan control device or to the Fan-Only connector found on some of Antec's power supplies. A fan-controlled-device regulates the fan speed by varying the voltage to it. The voltage may start as low as 4.5 V to 5V.
- Page 6 Specifications Size: 120 x 120 x 25.4 mm Rated Voltage: DC 12V Operating Voltage: 10.2V ~ 13.8V Speed Input Current High 0.24A 2000 RPM (max.) Medium 0.2A 1600 RPM 0.13A 1200 RPM The front fan (optional) should be installed so that the air is blowing into the case from the front.
- Page 7 Antec Quality 3-Year parts and labor warranty (AQ3) See details at: http://www.antec.com/warranty.html...
-
Page 8: Technical Support
+31 (0) 10 462-2060 europe.techsupport@antec.com www.antec.com © Copyright 2005 Antec, Inc. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited. Printed in China. Version 1.0.5 04/05/2005...
