Summary of Contents for Redring MS6

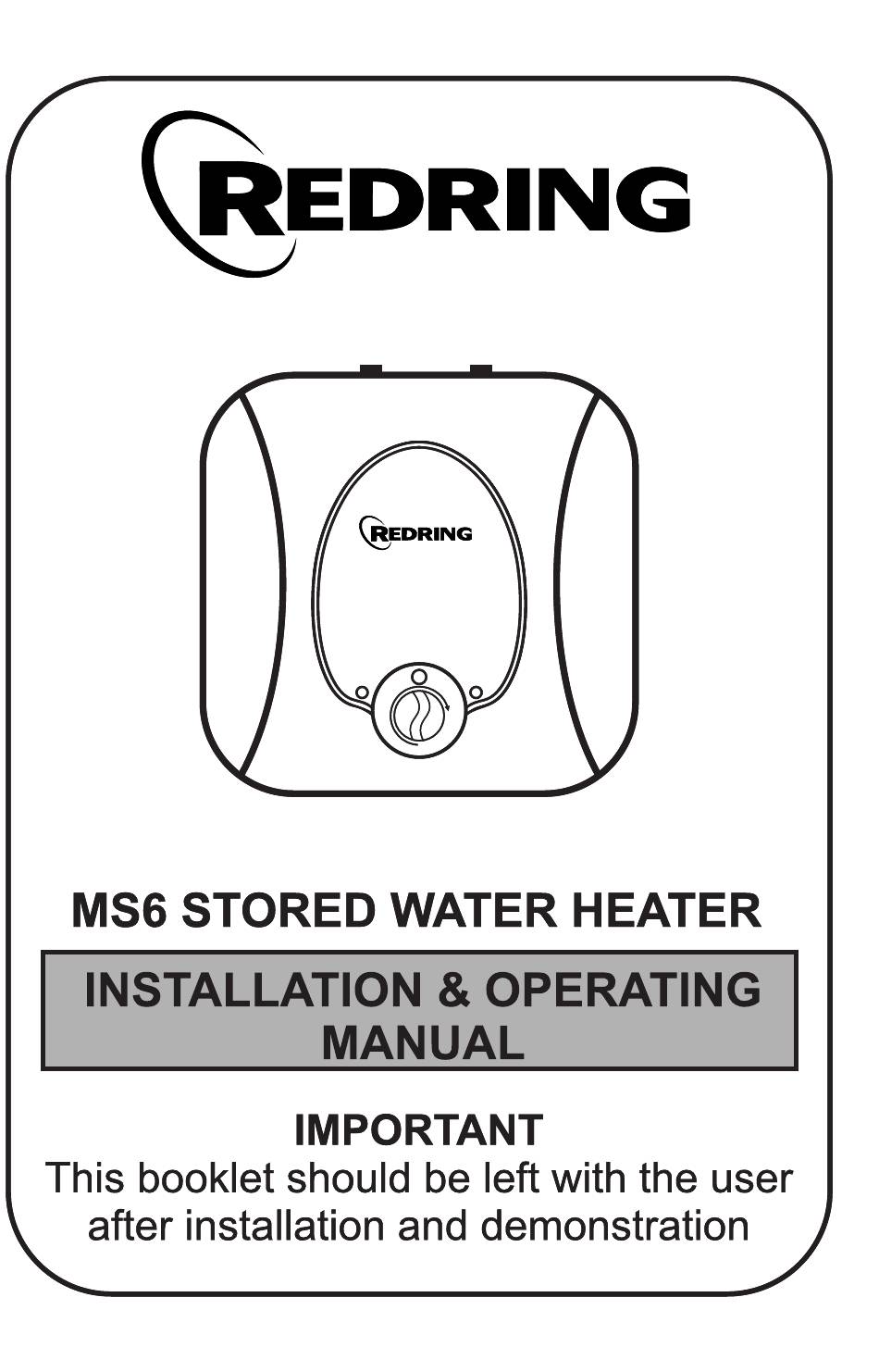

- Page 1 HIGH HIGH...
-
Page 2: Redring After Sales Service
Thank you for purchasing a quality Redring appliance. A brand of GDC group Limited trading as Glen Dimplex Heating & Ventilation To enjoy your new unit at its best, please take time to read this manual thoroughly to familiarise yourself with all instructions, BEFORE beginning installation. -
Page 3: Purpose Of Use
This electric water heater complies with the requirements of EN 60335-1, EN 60335-2-21. PURPOSE OF USE The appliance is designed to supply hot water to household facilities equipped with a plumbing system operating with pressure not greater than 6bar. It is designed to operate only in closed and heated premises where the air °... -
Page 5: Description Of The Appliance
For safe operation, the safety pressure relief valve must undergo regular cleaning and inspection f o r normal functioning, the valve must not be obstructed, and f o r regions with hard water it must be descaled as necessary. This service is not provided under warranty maintenance. All alterations and modifications to the water heater's construction and electrical circuitry are undertaken entirely at the purchaser's risk and are NOT recommended. -
Page 6: Installation Procedure
At least 010.0mm Drill 200mm IMPORTANT: MS6 water heaters are designed for installation with the outlet / inlet pipes pointed upwards (to the ceiling). Under no circumstances should these units be fitted upside down, with the outlet / inlet pipes pointing towards the floor.(see diagram 2) -
Page 7: Water Heater Connection To The Water Supply System
Hook unit on the wall bracket (diagram 3) ATTENTION/ Don't place objects, which are not waterproof under the appliance under any circumstances. Thermal:····: ····:Thermostat cut-out :[[] : ' ' ' c¢ :::r ----- -----� ■ N -----.-.; ..,_ __ __, 3�... - Page 8 reducing Pressure valve Pressure relief valve (3.5 bar) mains bar)** 6bar is > Isolating valve service Dielectric Cold r.====�::i:::==11======-===,j;==Ej@::::::::::C[]•[CI::= water mains _Discharge i!§. '-..., Supply to other parts drain 'rrr/ of plumbing system via tundish* .,.. Supplied with unit * Not included Typical installation with 1.7m of 15mm pipe expansion allowed in the...
-
Page 9: Maintenance
The magnesium anode protects the water tank's inner surface from corrosion. It wear and tear and is should be replaced periodically by the user. undergoes recommend periodic inspections of the magnesium anode's condition by Redring a qualified technician and replacement whenever required to keep your appliance working correctly. -
Page 11: After Sales Service
Remember to quote the exact model of unit, as written on the front of the unit and on this leaflet ANNEX 1 Water heaters in accordance with EU regulation 812/2013 Trade Mark Redring Model Water heating efficiency class B 32.5%... - Page 12 You must provide to Redring or its authorised agents on request the original receipt as proof of purchase and - if required by Redring - proof of delivery. If you are unable to provide the documentation, you will be required to pay for any work required.
