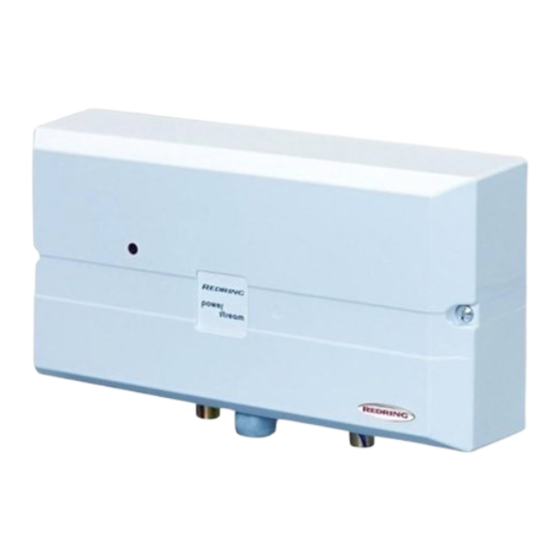

REDRING POWERSTREAM
UNVENTED INSTANTANEOUS
WATER HEATER
Installation and User Guide
IMPORTANT:
This booklet should be left with the user after
installation and demonstration.
It should be kept in a safe place, as you may need to
refer to it for general instructions or future
maintenance

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RP1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Redring RP1

Summary of Contents for Redring RP1

  • Page 1 REDRING POWERSTREAM UNVENTED INSTANTANEOUS WATER HEATER Installation and User Guide IMPORTANT: This booklet should be left with the user after installation and demonstration. It should be kept in a safe place, as you may need to refer to it for general instructions or future...

  • Page 2: Important Safety Information

    CHILDREN SHALL NOT PLAY WITH THE APPLIANCE. CLEANING AND USER MAINTENANCE SHALL NOT BE MADE BY CHILDREN INTRODUCTION Redring Powerstream Thank you for purchasing a quality manufactured in England. To enjoy your new unit at its best, please take time to read this manual thoroughly to familiarise yourself with all instructions, BEFORE beginning installation.

  • Page 3: How To Install Your

    POWERSTREAM HOW TO INSTALL YOUR WARNING: ALL WIRING AND INSTALLATION MUST BE SUPERVISED BY A SUITABLY QUALIFIED PERSON. WARNING: DO NOT INSTALL WHERE IT MAY BE SUBJECTED TO FREEZING CONDITIONS. Diagram 1a Diagram 1b Examples of fitted units Acceptable unit orientation The Powerstream is recommended to supply a MAXIMUM of two washbasins (see diagram 1a) OR a washbasin and shower (see diagram 4b) If the Powerstream is connected to a mixer tap then only NON-Thermostatic types should be used...
  • Page 4 Deciding the wiring route  You have a choice of whether to feed the electric cable through the side or through the back of the unit.  If it going through the side of the unit, cut out the plastic lug to expose the grommet (diagram 2).
  • Page 5 (see “commissioning” section on page 7). Fitting the attachments  If the unit is to supply a shower, you will also need a “Redring Mixer Unit”. Available in chrome/white finish and suitable for surface or concealed pipe entry (see page 9 for details). ...

  • Page 6: Making The Electrical Connections

    MAKING THE ELECTRICAL CONNECTIONS WARNING: THIS WATER HEATER MUST BE EARTHED. The electrical installation must be in accordance with the current BS.7671 (IEE Wiring Regulations) and “Part P” of the Building Regulations and/or local regulations Wiring to the mains (Check the unit rating to see which applies) Rating Fuse/MCB Isolating Switch...

  • Page 7: Checking For Leaks

    POWERSTREAM COMMISSIONING YOUR CHECKING FOR LEAKS  Let the water run through the unit for a few seconds. Close the outlet and check that no pipe joints leak. ADJUSTING THE SERVICE VALVE  If the unit is to supply a basin, - turn on the hot water tap fully at the basin.
  • Page 8 It is important to clean the shower spray plate regularly (see page 7).  In order for the Powerstream to function correctly, the “Redring Mixer Kit” must be used. The kit, Cat No. 85-793620, comes complete with full accessories including a 3 position...

  • Page 9: What To Do If Things Go Wrong

    Chrome and White shower mixer unit complete with full accessories Including 3 position multi-function handset Catalogue No. 85-793620 ¼ turn lever control spray tap Catalogue No. 85-793616 For further details, including a comprehensive list off accessories and spare parts, contact Redring Sales Hotline 0844 372 7750...

  • Page 10: Professional Service

    (diagram 11). Before you do this you must remove the cause of the problem. The flow switch is not working. Contact Redring (see page 9). Water too cold The power select screw is set to Change the power select screw to - neon light on.
  • Page 11 POWERSTREAM HOW YOUR WORKS Water comes in through the inlet, via a flow switch. The flow switch measures how much water is passing through the unit. If it detects more than the preset level of:- 2.7 litres/minute for the 9.5kW model and 3.3 litres/minute for the 10.8kW and 12.0kW models The units heating elements are switched on.

  • Page 12: Guarantee And Contact Details

    For the service work to be undertaken free of charge, the work must only be undertaken by Redring Xpelair Group Limited, or our approved agents. f) Service under guarantee has no effect on the expiry date.
