- Page 1 MW & EW 10 & 15 Litre Unvented Water Heaters HANDBOOK IMPORTANT: This booklet should be given to the customer after installation and demonstration.
- Page 3 Pursuant to Art. 26 of Italian Legislative Decree 14 march 2014, n. 49 “Enactment of Directive 2012/19/EU governing electrical and electronic waste (WEEE)” The barred bin symbol on the appliance and its packaging indicates that the product must be scrapped separately from other waste at the end of its service life.
-
Page 4: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS CAUTION! 1. This manual is an integral part of the product. Keep it with care with the appliance, and hand it on to the next user/owner in case of change of property. 2. Read the instructions and warning in this manual carefully, they contain important information regarding safe installation, use and maintenance. - Page 5 technician. 13. Do not tamper with the overpressure safety device, if supplied together with the appliance; trip it from time to time to ensure that it is not jammed and to remove any scale deposits. In countries which have enacted EN 1487, the appliance's intake pipe must be equipped with a safety device compliant with the said standard, calibrated to a maximum pressure of 0.7 MPa, including at least a cock, check valve, safety valve and hydraulic...
-
Page 6: General Safety Standards
Symbols: Symbol Meaning Failure to observe this warning can result in injury, which may even be fatal in certain circumstances Failure to observe this warning can result in damage or injury, even serious in certain circumstances, to property, plants and animals Observe the product's general and specific safety instructions. - Page 7 Anti-legionella recommendations (European standard CEN/TR 16355) Information Legionella is a small bacterium, of stick-like form, and is found naturally in fresh water. Legionnaire's disease is a serious pulmonary infection caused by inhalation of the Legionella pneumophilia bacterium and other species of Legionella . The bacterium is frequently to be found in the plumbing of houses, hotels and water used in A/C and air cooling systems.
-
Page 8: Technical Specifications

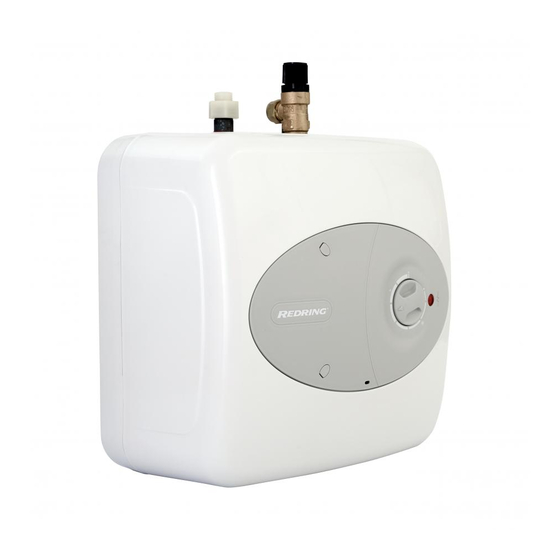

Description of water heater 1) Hot water outlet 2) Temperature and pressure relief valve (MW only) 3) Cold water inlet 4) Control cover 5) Regulation knob 6) Heating neon EW under-sink (EW 10/15) MW under-sink (MW 10/15) TECHNICAL SPECIFICATIONS For the technical specifications, refer to the nameplate (the nameplate is located next to the water intake/outlet pipes). Product information (MW) Undersink (EW) Undersink (MW) Undersink (EW) Undersink Refer to the nameplate... -
Page 9: Water Regulations
The power consumption data in the table and the other information given in the Product Data Sheet (Enclosure A to this manual) are defined in relation to EU Directives 812/2013 and 814/2013. Products equipped with regulator knobs have the thermostat positioned in the setting condition at its set <ready to use>... - Page 10 Delivery There are two options available, the MW range and the EW range. The MW is supplied with the following: MW unvented water heater (with factory-fitted T + P valve) Wall bracket Tundish Dielectric junction The EW is supplied with the following: EW unvented water heater Wall bracket Pressure relief valve set at 6 bar...
-
Page 11: Installation Instructions
Installation Instructions Before installing the heater read these instructions in full. If you are unsure please contact our technical department 0844 372 7766. The installation must comply with all relevant Water and Building Regulations. The installer should check with the local water authority for confirmation of the maximum water supply pressure. - Page 12 Accommodation of the expansion in supply pipe work (diagrams 2 & 3). diagram 2 MW 10/15 diagram 3 EW 10/15 Do not fit any stop-cocks or non-return valves within the distance required for expansion. The distances quoted are for 15 mm pipe these can be approximately halved for 22 mm pipe to shorten the distance required for expansion.
- Page 13 Accommodation of expansion in an expansion vessel (diagrams 4 & 5). diagram 4 MW 10/15 diagram 5 EW 10/15 Using a pressure reducing valve (set at 3.5 bar), a non-return valve and expansion vessel charged to 3.5 bar, the expansion is accommodated in the vessel.
- Page 14 c) Discharge pipe work NOTE: The following guidelines refer to Building Regulation G3. This regulation only applies to an unvented system over 15 litres. It is good practice to adopt the same principles for the EW and MW range. 1) The tundish must be vertical and fitted within 500 mm of the temperature & pressure relief valve and must be located with the water heater.
- Page 15 iv) Where a single pipe serves a number of discharges, such as in blocks of flats, the number served should be limited to not more than 6 systems so that any installation can be traced reasonably easily. The single common discharge pipe should be at least one pipe size large than the largest individual discharge pipe to be connected.
- Page 16 Table 2 Sizing of copper discharge pipe “D2” for common temperature valve outlets. Valve outlet size Minimum size of Minimum size of Maximum Resistance created discharge pipe D1* discharge pipe D2* resistance allowed, by each elbow or from tundish expressed as a bend length of pipe (i.e.
- Page 17 a double pole fused isolating switch with a contact separation of 3 mm minimum on each pole. The cable enters the terminal compartment through a tube embedded in the foam insulation, the entrance to this tube is on the right hand side at the bottom. Flexible cables are colour coded as follows: Brown..........
-
Page 18: Maintenance
Check that the discharge pipe drains safely to waste and is readily visible. Check, in the case where some components are not factory fitted, that they are marked so as to refer to the warning label on the water heater. Open all outlet taps. -
Page 19: Fault Finding
Once the element is free from the water container the anode may then be inspected and removed if necessary. When reassembling the cover make sure that the regulation knob is coupled with the thermostat. Fault finding Pressure and temperature valve dripping/running all the time. Cause: Thermal cut-out and thermostat have failed (this is only the case if the water being discharged is near to boiling). -
Page 21: Spare Parts
Spare Parts MW/EW spares list: From Autumn 2015 Item no Cat no Description Used on 97783319 HEATING ELEMENT 3000W 220-240V MW 10/EW 10 97783320 HEATING ELEMENT 3000W 220-240V MW 15/EW 15 97783317 FLANGE WITH 4 HOLES MW/EW 97783304 WIRED THERMOSTAT 97783305 WIRED THERMOSTAT 97783301... - Page 24 “This guarantee does not affect your Statutory rights” Full details of Terms and Conditions are available on request from:- REDRING XPELAIR GROUP Ltd. NEWCOMBE HOUSE. NEWCOMBE WAY, ORTON SOUTHGATE, PETERBOROUGH PE2 6SE UK TEL +44 (0) 8443727766...
