—— Instruction Manual ——
BA833XL/BA834
Portable/Adjustable Basketball Systems
P A R T S L I S T
Item
Qty
Description
A
1
Portable Base and Pole Assembly
B
Extension Arm
1
C
1
Set Height Indicator Labels (attached to base)
Do not release the height adjustment handle or loosen the telescoping pole lockbolt until the system
is completely assembled as the telescoping tubes are under spring tension and may cause damage or
♦
Inspect all contents prior to installation. Report any missing parts to dealer immediately.
♦
Carefully read all instructions before proceeding. Pay special attention to the safety instructions on the
next page.
♦
Save this instruction in the event that the manufacturer must be contacted in the future for maintenance
information.
1. This basketball system is shipped partially
preassembled. After removing the system
from its shipping skid open the lower padded
front panel by removing the locking knob and
pulling forward on the top of the lower pad to
allow the unit to roll.

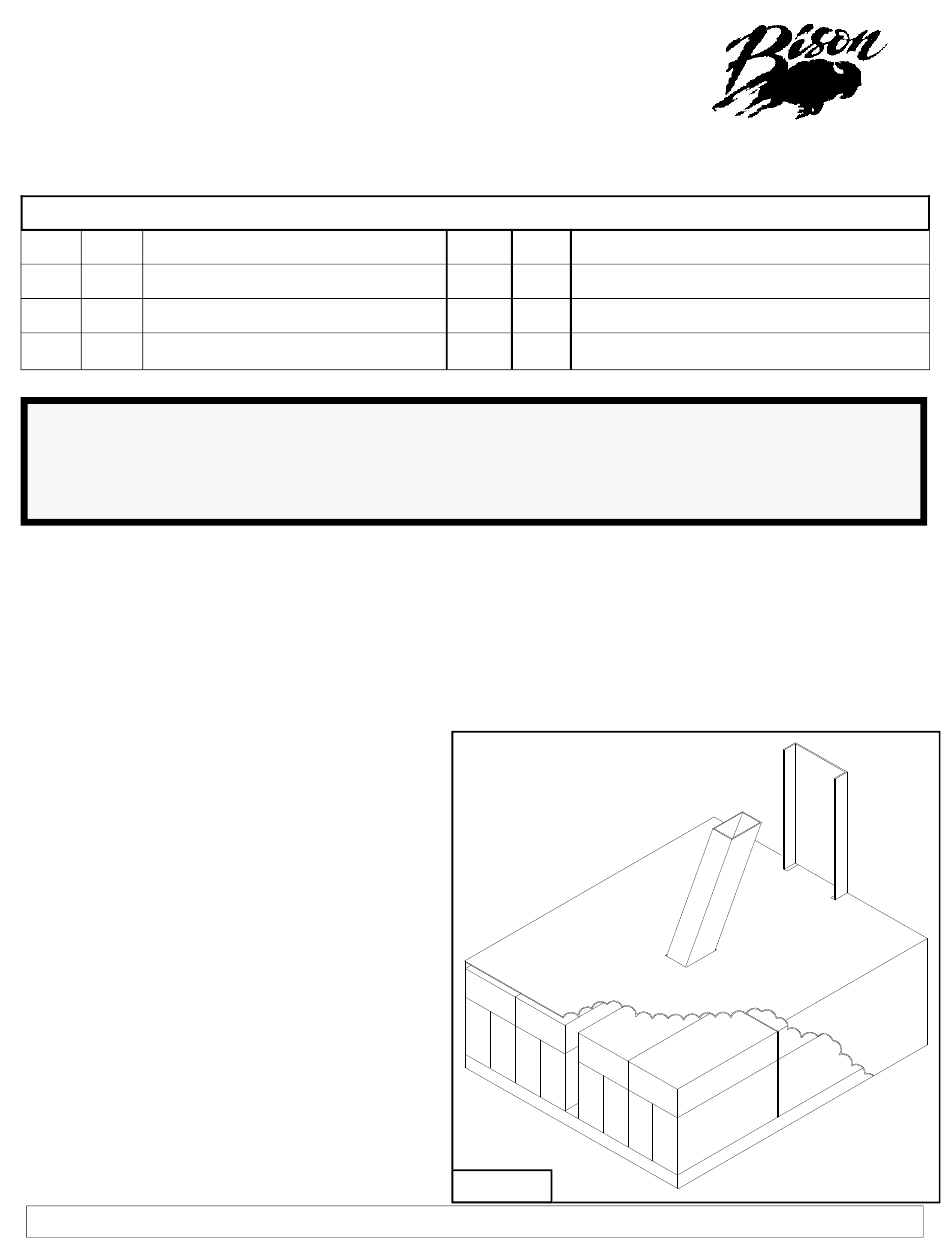

2. Open the rear ballast storage compartment by
removing 4 screws. Do not remove the bottom
2 pivot screws. Pivot rear cover open and place
(24) 4"x 8"x16" solid concrete CAP blocks
(purchase separately) into the compartment.
Make sure that the weight is evenly distributed.
Reposition the rear cover. See Figure 1.
Date: 3/9/2016
Rev: 1
Warning!!!
injury to the assembler.
B.A.
N.J.C.
Item
Qty
Description
D
1
Backboard (pkg. separately)
E
1
Rim (pkg. separately)
F
1
Backboard Mounting H-Frame (pkg. separately)
Figure 1
File: \pub\BA833XL & BA834
1
Customer Service
(800) 247-7668
Ref#: 930723
Advertisement
Related Manuals for Bison BA834
Summary of Contents for Bison BA834
- Page 1 (24) 4”x 8”x16” solid concrete CAP blocks (purchase separately) into the compartment. Make sure that the weight is evenly distributed. Reposition the rear cover. See Figure 1. Figure 1 Date: 3/9/2016 Rev: 1 B.A. N.J.C. File: \pub\BA833XL & BA834 Ref#: 930723...
- Page 2 Figure 2 Note: If your warning label becomes damaged or lost, call the manufacture for a replacement. 3. Remove the hand knob and bolt from the extension arm bracket. Raise the Extension Arm (B). Replace the hand knob and bolt. See Figure 2.
- Page 3 Warning!!! The recent popularity of adjustable height basketball systems has increased the risk of dental injury, particularly to young players, due to players getting their teeth caught in the net. 6. Tighten all hardware assuring that the goal and backboard are level. 7.
