Bison Ace Serve VB5000 Instruction Manual

—— Instruction Manual ——
Ace Serve
Item Qty Description
A 2 VB50 Standard
B VB51P-XX Pole Padding
2
C 2 VB23-CV Floor Plates (If Applicable)
D 2 VB23 or VB235 Floor Sockets (If Applicable)
E 4 Cable Covers (If Applicable)
F 1 VB1250K Net (includes storage bag)
G 2 Volleyball Antennas (VB13) (If Applicable)

Inspect all contents prior to installation. Report any missing parts to dealer immediately.

Read all instructions before proceeding.
Please use the instructions provided with VB23-CV Floor Plates (C) and VB23 or VB235 Floor Sockets (D)
1. Each VB50 Standard (A) has a total of nine fixed
VB1250K Net (F) height adjustments for each
Junior, Women's and Men's official height. Each
VB50 Standard (A) also has three fixed VB1250K
Net (F) height adjustments for recreational tennis.
Use the pole alignment grooves when sliding the
outer pole up/down to locate each positive lock pin
hole. Use Positive Lock Pin (M) in the positive lock
pin hole that positions VB1250K Net (F) in the
height you desire. See Figure 1.
2. Set VB50 Standards (A) into Floor Sockets (D).
Remove Positive Lock Pin (M) and raise outer pole
of the VB50 Standard (A) to the series of holes
representing men's, women's or junior's height. Use
the pole alignment grooves as a guide to locate
positive lock pin holes. See Figure 1.
3. Lay the VB1250K Net (F) out, find the end with the
factory installed rope ratchet device on the bottom
rope. Install the opposite end of the VB1250K Net
(F) to the non-winch VB50 Standard (A) by
attaching the top loop of the VB1250K Net (F) onto
the Net Hook (I). Attach the other end of the
VB1250K Net (F) to the cable attached to the Winch
(H). See Figure 2.
Date: 03/22/2017 Rev: I.R.
VB5000
Hybrid Volleyball System
TM
for new court installation
B.A. N.J.C.
P A R T S L I S T
Item Qty Description
H 1
Winch
I 3 Net Hook
J 2 Nylon Net Collars (If Applicable)
K 3 Carabineer
L 6 Rope Ratchet (Provided With Net)
M 2 Positive Lock Pin
Outer Pole
Inner Pole
Positive Lock
Pin Holes
Net Hook (I)
Inner Pole

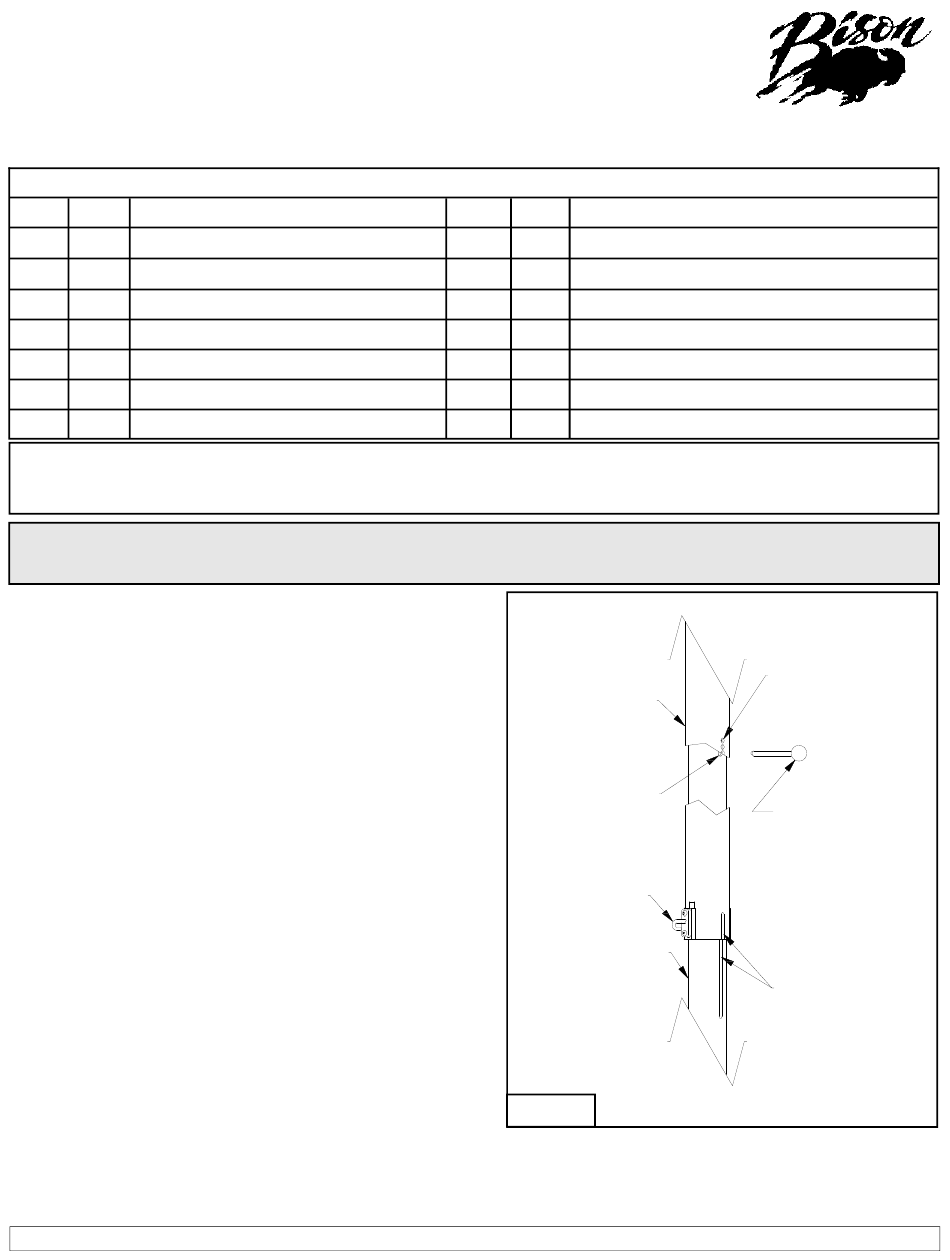

Figure 1
File: \pub\instructions\volleyball\vb5000inst
1
Customer Service
(800) 247-7668
Outer Pole
Positive Lock
Pin Holes
Positive Lock
Pin (M)
Pole Alignment
Grooves
Ref#: 960907
