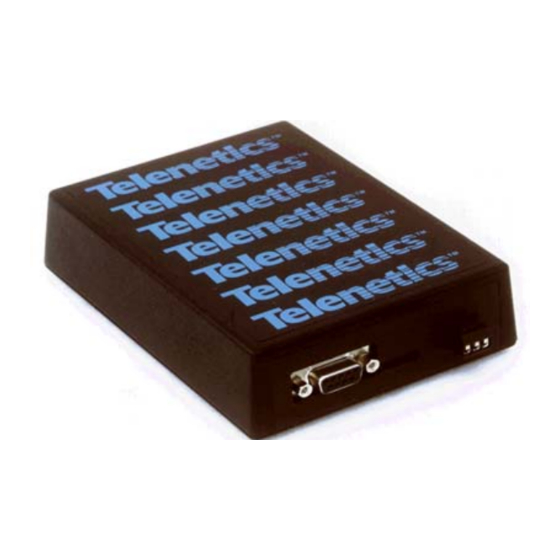

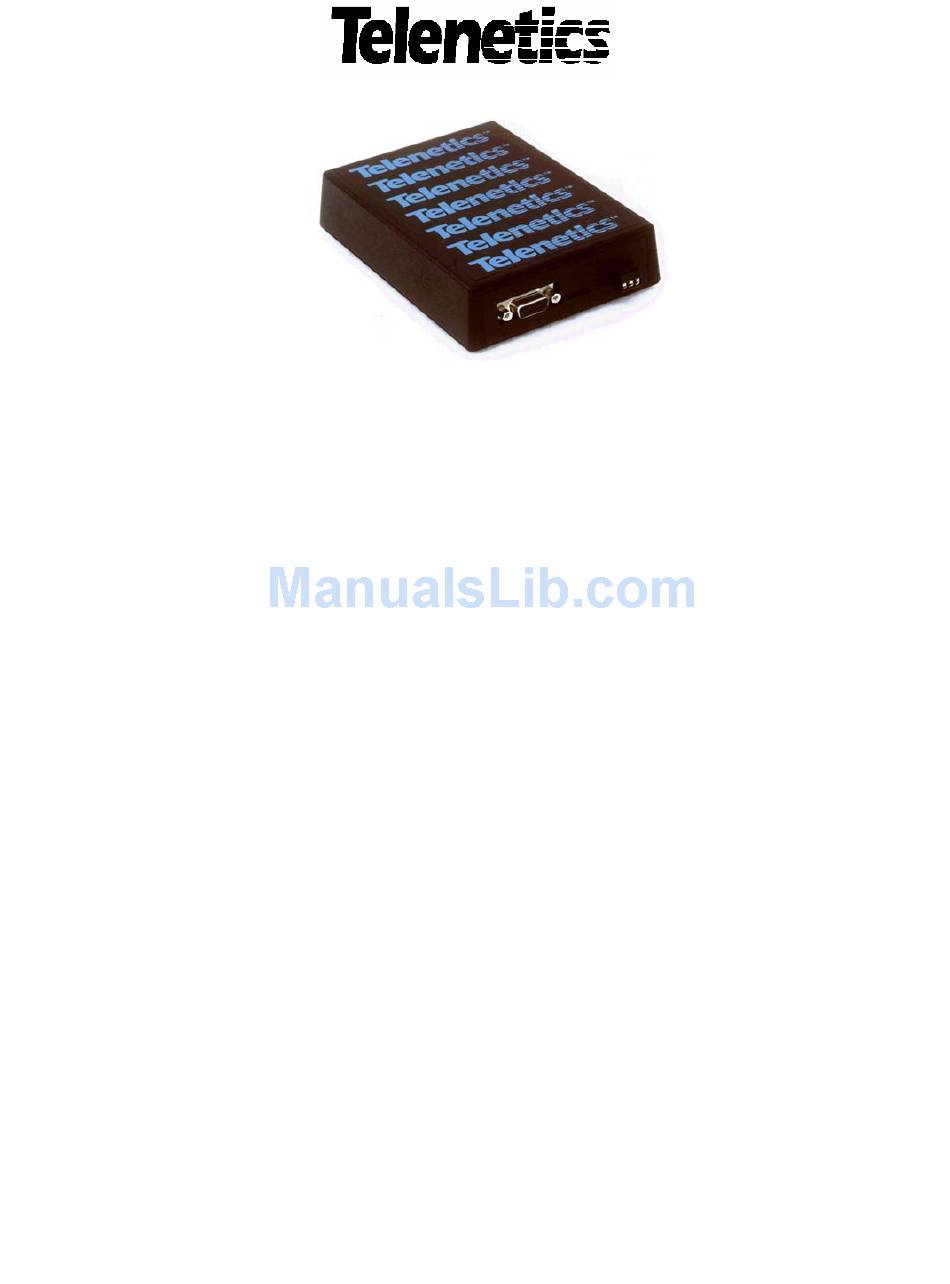

- Page 1 Installation, Operation & Diagnostics for the MIU202T Industrial Grade, Bell 202T Standalone Modem Document No. 49-0002-011 Rev. B...
- Page 2 Telenetics Corporation 25111 Arctic Ocean Lake Forest, California 92630 (949)455-4000 Fax (949)455-4010 Document No. 49-0002-011 Rev. B...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. STANDARDS... 2 2. PRODUCT OVERVIEW ... 3 3. GENERAL PRODUCT SPECIFICATIONS ... 4 4. MODEM SPECIFICATIONS ... 5 5. ANALOG LINE SPECIFICATIONS ... 7 6. ANALOG MICROWAVE INTERFACE... 8 7. POWER CONNECTIONS... 10 8. SERIAL DATA PORT PIN-OUT ... 11 9. -
Page 4: Standards
Internally, the MIU202T consists of a baseboard and a communication module. The baseboard includes the power supply regulation and surge protection. The communication module is a Telenetics™ Pony Express™ PE202T Modem Module. The MIU202T is packaged specifically for the harsh environments found in utility substations and industrial facilities. -
Page 5: General Product Specifications
Dimensions: Weight: Voltage Supply: Standard Model: LV Model (Suffix “-LV”): Current Requirements: 12VDC 24VDC 125VDC 65mA 27mA 7.5mA Surge Protection: Power Supply: Analog Line: Digital Line: Operating Temperature: Operating Humidity: Storage Temperature: MIU202T Installation, Operation & Diagnostics Edition: December 28, 2000 Page 3 5.3 x 4.0 x 1.375 inches 1 lb 40 to 270VDC... -
Page 6: Modem Specifications
Modulation: Modulation Type: Synch/Async: Data Rate: Transmit Frequency: Error Correction: Data Compression: Data Modulation Connectivity: 99.999% or better at -37dBm 99.5% or better at -40dBm 95% or better at -43dBm Serial Formats and Flow Control: Asynchronous and RTS/CTS flow control Analog Interface Tx Output Level: Rx Sensitivity:... - Page 7 Other Features Receiver Equalization: Self Test Diagnostics: Local Analog Loopback: Local Digital Loopback: Remote Analog Loopback Remote Digital Loopback Anti-Streaming: RTS/CTS delay: Constant Carrier Soft Carrier Turn Off Carrier Turn ON/OFF * Dip Switch Selectable ~ See Section 9 MIU202T Installation, Operation & Diagnostics Edition: December 28, 2000 Page 5 Compromise Equalization None See Section 13...
-
Page 8: Analog Line Specifications
5. ANALOG LINE SPECIFICATIONS The MIU202T contains analog circuitry for connection to the public conditioned or unconditioned, Bell type 3002, 2 or 4-wire, full duplex voice grade leased lines or metallic lines (eg; pilot wires). The MIU202T will also interface to Power Line Carrier or Microwave radio voice channel networks. -
Page 9: Analog Microwave Interface
The MIU202Tis designed to interface to a Microwave radio voice channel network with the following specifications: Phase Jitter (10 to 300Hz)1 degree peak-to-peak, max. Frequency Response: 300 - 3400Hz -3, +0.7 dB 400 - 3000Hz -1, +0.7 dB 600 - 2400Hz + 0.7 dB Frequency Stability: With Synchronization Without Synchronization 0.5 Hz / month... - Page 10 Adjacent channel 28dBrnc0 maximum (24 455B weighted noise at 0 dBmO dBrnc0 typical). Intra-channel 28 dBrnc0, maximum (18 dBrnc0, typical) (1KHz test tone at 0 dBmO) Out of Band Signalling: Frequency 3825 Hz Level -20 dBmO Pulse speed (30 to 80% break) 8 to 14 pps Pulse distortion +3 dB, level var.
-
Page 11: Power Connections
POWER CONNECTIONS MIU202T Installation, Operation & Diagnostics Edition: December 28, 2000 Page 9... -
Page 12: Serial Data Port Pin-Out
SERIAL DATA PORT PIN-OUTS MIU202T Installation, Operation & Diagnostics Edition: December 28, 2000 Page 10... -
Page 13: Dip Switch Functions
IMPORTANT NOTE: Invert modem to view dip switches as shown above Table 1 Switch Function Switch 1 Transmit Analog (TxA) Signal Level Switch 2 Anti-Streaming Switch 3 Received Analog (RxA) Signal Level Switch 4 RTS/CTS Delay Switch 5 RTS/CTS Delay Switch 6 Switched/Constant Carrier Switch 7... - Page 14 Switched Constant Carrier Carrier Wire Wire MIU202T Installation, Operation & Diagnostics Edition: December 28, 2000 Page 12 Switch Switch Switch 9 RTS/CTS Soft Carrier Delay Time 50 ms 50 ms 50 ms 50 ms 35 ms 35 ms 35 ms 35 ms 12 ms 35 ms...
-
Page 15: Modem Configuration
The following table provides the Dip Switch settings required for most modem application configurations: 4-Wire Point-to-Point 4-Wire Multi-Point Master 4-Wire Multi-Point Slave Rx Term. OFF 4-Wire Multi-Point Slave Rx Term. ON 2-Wire Point-to-Point 2-Wire Multi-Point Master Line Term. ON 2-Wire Multi-Point Slave Line Term. -
Page 16: Led Indicator
LED INDICATOR MIU202T Installation, Operation & Diagnostics Edition: December 28, 2000 Page 14... -
Page 17: Outline Drawing & Mounting
12. OUTLINE DRAWING & MOUNTING MIU202T Installation, Operation & Diagnostics Edition: December 28, 2000 Page 15... -
Page 18: Diagnostics
The following pages provide hardware techniques for diagnosing communication problems and thereby isolating the problem at the local modem, the remote modem or the interconnecting line. (a) LOCAL ANALOG LOOPBACK (Figure 2) Requires a loop back cable with a built-in circuit for line loss to simulate a typical leased line condition (See Figure 3). - Page 19 Set Dip Switch 1 OFF (TxA = -10dBm) and Dip Switch 3 OFF (RxA = -43dBm). CD will be ON. Run a test message at TxD and verify that the same message is received at RxD with no data errors. Test 4: Repeat Test 3 for various RTS/CTS delay times and with soft carrier ON and OFF.
- Page 20 (c) REMOTE DIGITAL LOOPBACK – 4/Wire Network (Figure 5) Configure both the local and remote modems as follows: Switch 1 = ON (TxA = 0dBm) Switch 3 = ON (RxA = -33dBm) Switch 4 = OFF (RTS/CTS = 35ms) Switch 5 = ON (RTS/CTS = 35ms) Switch 6 = ON (Constant Carrier mode).
- Page 21 (i) Typical modem configuration for 4-wire Point-to-Point system… Switch 1 = ON (TxA = 0dBm) Switch 3 = ON (RxA = -33dBm) Switch 4 = OFF (RTS/CTS = 1ms) Switch 5 = OFF (RTS/CTS = 1ms) Switch 6 = ON (Constant Carrier mode). Switch 7 = OFF (4-Wire) Switch 8 = ON (Line Termination = 600 ohms) Switch 9 = OFF (Soft Carrier = OFF)
- Page 22 MIU202T Installation, Operation & Diagnostics Edition: December 28, 2000 Page 20...
- Page 23 MIU202T Installation, Operation & Diagnostics Edition: December 28, 2000 Page 21...
- Page 24 MIU202T Installation, Operation & Diagnostics Edition: December 28, 2000 Page 22...
- Page 25 Test Functions: A momentary push button switch and two yellow LED’s are provided to perform the test functions. When both LED’s are OFF, the modem is in normal mode. Power ON reset insures the modem starts in normal mode. 1) Pressing the switch once causes the DL LED to turn ON and the modem is in DIDITAL loopback.
