Telenetics 326X V.34 Series Quick Reference Manual

V.34, v.34-sdc, and v.32bis series
Hide thumbs Also See for 326X V.34 Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Telenetics
12
RD
TR
RI/OH
3260
TD
CD
RC/NC
326X V.34, V.34-SDC, and V.32bis Series
Modem Quick Reference Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 326X V.34 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Telenetics 326X V.34 Series

Summary of Contents for Telenetics 326X V.34 Series

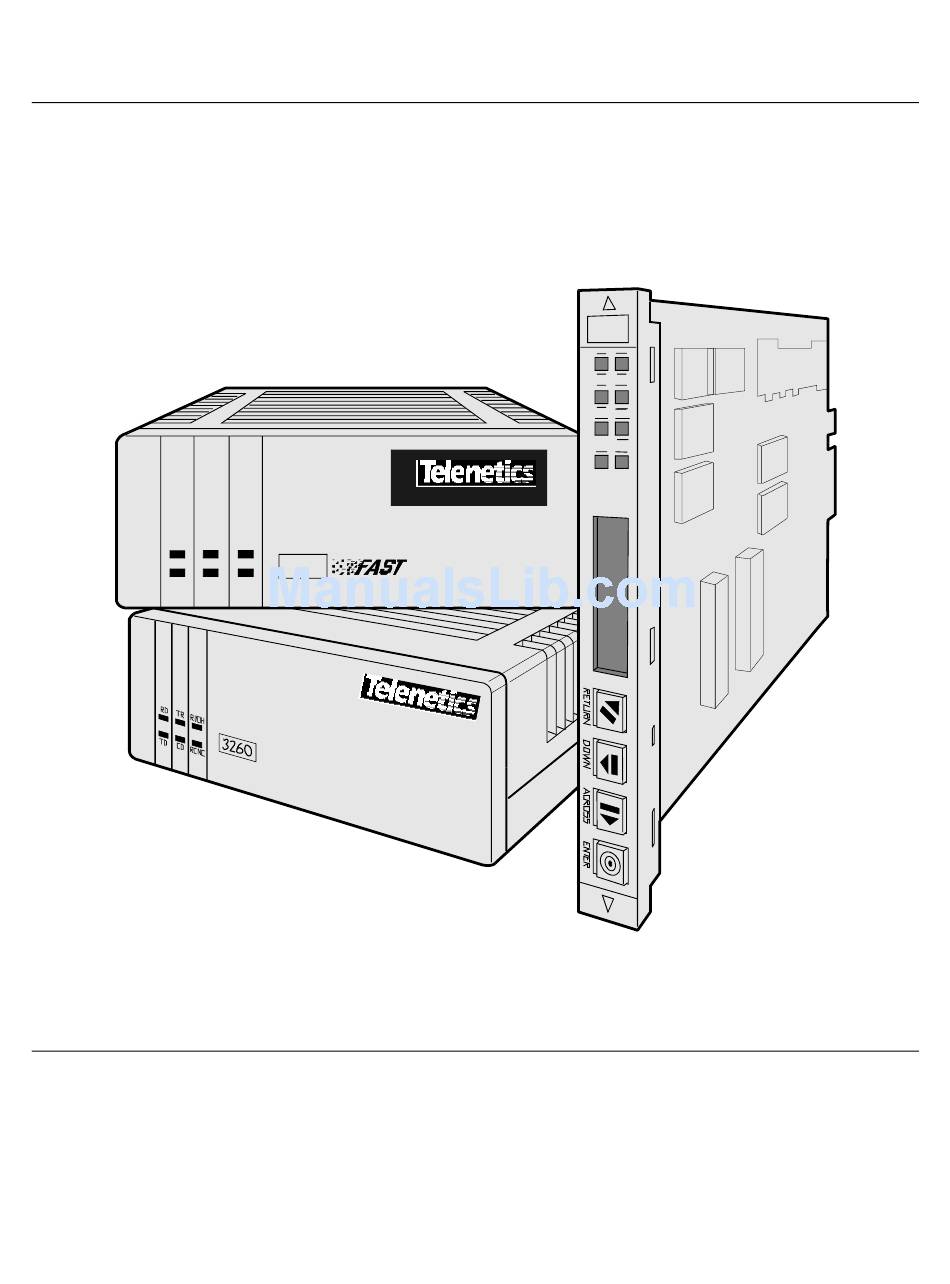

  • Page 1 Telenetics RI/OH 3260 RC/NC 326X V.34, V.34-SDC, and V.32bis Series Modem Quick Reference Guide...
  • Page 2 Notice ©2001 Telenetics Corporation 25111 Arctic Ocean Lake Forest, California 92630 (949) 455-4000 All rights reserved Printed in U.S.A. Restricted Rights Notification for U.S. Government Users The software (including firmware) addressed in this manual is provided to the U.S. Government under agreement which grants the government the minimum “restricted rights”...
  • Page 3 Use of software described in this document is subject to the terms and conditions of the Telenetics Software License Agreement.
  • Page 4 This product is CE marked to indicate compliance with the following European directives. • 73/23/EEC Low Voltage Directive (Safety) • 89/336/EEC EEC Directive Compliance with the above directives may only be assured when the equipment is installed and operated in accordance with the instructions for its use and the purpose for which it is intended.

  • Page 5: Table Of Contents

    Table of Contents Introduction ..............1 Understanding the Front Panel Modem Buttons .
  • Page 6 United Kingdom ............. . . 53 Universal .

  • Page 7: Introduction

    Introduction This Quick-Reference Guide describes how to select country-specific parameters using the Telenetics 326X V.34, V.34-SDC, and V.32bis series modems. Users select modem parame- ters using buttons on the front panel of the modem. This Introduction describes how to use the front-panel buttons to select modem parameters.

  • Page 8: Selecting Modem Parameters

    Selecting Modem Parameters When you first power-up the modem, the modem performs its Self Test and the LCD displays a prompt similar to the following (the model number shown may be different for your modem): SELF TEST 326X Fast Ready After the modem passes its Self Test, the LCD displays the following initial prompt: Disconnect T/D?

  • Page 9: Saving Modem Settings In Nonvolatile Memory

    4. When the desired command setting appears in the LCD display, press the Enter button: 5. After you select the desired command setting, press the Enter button. The menu category associated with the command you selected appears in the LCD display. 6.

  • Page 10: Returning To Factory Default Settings

    3. When the desired nonvolatile memory position appears, press the Enter button: The following message appears in the LCD display: Saving Options followed by: Save Completed! Press the Return button to return to the initial prompt: Disconnect T/D? Returning to Factory Default Settings If you make one or more mistakes when making your command selections, you can return to the modem’s original factory-default settings.

  • Page 11: Using This Quick Reference Guide

    Using This Quick Reference Guide Now that you know how to navigate through the modem’s menu and command tree and select command settings, you can go to then appropriate chapter in this Guide to view the com- mands available for various countries and to choose the appropriate commands for your requirements.

  • Page 13: Australia And New Zealand

    Australia and New Zealand Table 1. Australia and New Zealand Settings Features Settings Test=Busy Out (ATH1) → Restricted in 3265/6 (ATH0) (TEST OPT’S Test) → (ACU OPT’S Call Progress) AT&D7 108.2/Bsy → (TERMINAL OPT’S DTR) AT&G AT&G1 → 1800 AT&G2 (MODULATION OPT’S Guard Tone) 3266/8...
  • Page 14 Table 1. Australia and New Zealand Settings (Continued) Features Settings AT*TT 30 sec AT*TT0 → 60 sec AT*TT2 (DIALING OPT’S Call Timeout) DL TX Level Always=–10dBm → (TELCO OPT’S DL TX Level) LL TX Level Always=–10dBm → (TELCO OPT’S LL TX Level) Note: Default settings shown in bold.

  • Page 15: Austria

    Austria Table 2. Austria Settings Features Settings Test=Busy Out (ATH1) → Restricted in all models (ATH0) (TEST OPT’S Test) → (ACU OPT’S Call Progress) AT&D7 108.2/Bsy → Restricted (AT&D0 – AT&D6) (TERMINAL OPT’S DTR) AT&G AT&G1 → 1800 AT&G2 (MODULATION OPT’S Guard Tone) 3266/8 AT&P...
  • Page 16 Table 2. Austria Settings (Continued) Features Settings AT*TT 30 sec AT*TT0 → 60 sec AT*TT2 (DIALING OPT’S Call Timeout) DL TX Level Always=–9dBm → (TELCO OPT’S DL TX Level) LL TX Level Always=–9dBm → (TELCO OPT’S LL TX Level) Note: Default settings shown in bold. Settings may vary depending on the modem model.

  • Page 17: Belgium

    Belgium Table 3. Belgium Settings Features Settings → (TEST OPT’S Test) Always=4, ATX4 → (ACU OPT’S Call Progress) AT&D7 108.2/Bsy → (TERMINAL OPT’S DTR) AT&G → (MODULATION OPT’S Guard Tone) AT&P AT&P1 → (DIALING OPT’S Pulse Cycle) AT*AA Manual AT*AA0 →...
  • Page 18 Table 3. Belgium Settings (Continued) Features Settings AT*TT 30 sec AT*TT0 → 60 sec AT*TT2 (DIALING OPT’S Call Timeout) DL TX Level Always=–6dBm → (TELCO OPT’S DL TX Level) LL TX Level Always=–9dBm → (TELCO OPT’S LL TX Level) Note: Default settings shown in bold. Settings may vary depending on the modem model.

  • Page 19: Canada

    Canada Table 4. Canada Settings Features Settings Test=Busy Out (ATH1) → Restricted in 3268 (ATH0) (TEST OPT’S Test) → (ACU OPT’S Call Progress) AT&D7 108.2/Bsy → (TERMINAL OPT’S DTR) AT&G → (MODULATION OPT’S Guard Tone) AT&P → (DIALING OPT’S Pulse Cycle) AT*AA →...
  • Page 20 Table 4. Canada Settings (Continued) Features Settings AT*TT –9dBm → (DIALING OPT’S Call Timeout) DL TX Level Set to 0dBm; adjustable from 0 to –15dBm → (TELCO OPT’S DL TX Level) LL TX Level Set to 0dBm; adjustable from 0 to –15dBm →...

  • Page 21: Czech Republic And Poland

    Czech Republic and Poland Table 5. Czech Republic and Poland Settings Features Settings Test=Busy Out (ATH1) → Restricted in all models (ATH0) (TEST OPT’S Test) → (ACU OPT’S Call Progress) AT&D7 108.2/Bsy → (TERMINAL OPT’S DTR) AT&G → (MODULATION OPT’S Guard Tone) AT&P →...
  • Page 22 Table 5. Czech Republic and Poland Settings (Continued) Features Settings AT*TT 30 sec AT*TT0 → 60 sec AT*TT3 (DIALING OPT’S Call Timeout) 90 sec AT*TT2 Using S7 AT*TT5 DL TX Level Always=–9dBm → (TELCO OPT’S DL TX Level) LL TX Level Always=0dBm →...

  • Page 23: Denmark

    Denmark Table 6. Denmark Settings Features Settings → (TEST OPT’S Test) ATX4 → (ACU OPT’S Call Progress) AT&D7 108.2/Bsy → (TERMINAL OPT’S DTR) AT&G → (MODULATION OPT’S Guard Tone) AT&P Always=33% → AT&P1 (DIALING OPT’S Pulse Cycle) AT*AA Manual AT*AA0 →...
  • Page 24 Table 6. Denmark Settings (Continued) Features Settings AT*TT 30 sec AT*TT0 → 60 sec AT*TT2 (DIALING OPT’S Call Timeout) DL TX Level Always=–9dBm → (TELCO OPT’S DL TX Level) LL TX Level Always=–9dBm → (TELCO OPT’S LL TX Level) Note: Default settings shown in bold. Settings may vary depending on the modem model.

  • Page 25: Finland

    Finland Table 7. Finland Settings Features Settings → (TEST OPT’S Test) → (ACU OPT’S Call Progress) AT&D7 108.2/Bsy → (TERMINAL OPT’S DTR) AT&G → (MODULATION OPT’S Guard Tone) AT&P Always=40% → AT&P0 (DIALING OPT’S Pulse Cycle) AT*AA Manual AT*AA0 → Ring #2 AT*AA2 (ACU OPT’S...
  • Page 26 Table 7. Finland Settings (Continued) Features Settings AT*TT 30 sec AT*TT0 → 60 sec AT*TT3 (DIALING OPT’S Call Timeout) 90 sec AT*TT2 Using S7 AT*TT5 DL TX Level Always=–11dBm → (TELCO OPT’S DL TX Level) LL TX Level Always=–9dBm → (TELCO OPT’S LL TX Level) Note: Default settings shown in bold.

  • Page 27: France

    France Table 8. France Settings Features Settings ATH0 → (TEST OPT’S Test) Always=4, ATX4 → (ACU OPT’S Call Progress) AT&D7 Restricted → (TERMINAL OPT’S DTR) AT&G AT&G0 → AT&G1 (MODULATION OPT’S Guard Tone) 1800 AT&G2 AT&P Always=33% → AT&P1 (DIALING OPT’S Pulse Cycle) AT*AA Manual...
  • Page 28 Table 8. France Settings (Continued) Features Settings AT*TT 45 sec AT*TT1 → 60 sec AT*TT2 (DIALING OPT’S Call Timeout) Using S7 AT*TT5 DL TX Level Always=–10dBm → (TELCO OPT’S DL TX Level) LL TX Level Always=–9dBm → (TELCO OPT’S LL TX Level) Note: Default settings shown in bold.

  • Page 29: Germany

    Germany Table 9. Germany Settings Features Settings Test=Busy Out (ATH1) → Restricted all models (ATH0) (TEST OPT’S Test) ATX4 → (ACU OPT’S Call Progress) AT&D7 Restricted, AT&D0 – AT&D6 → (TERMINAL OPT’S DTR) AT&G → (MODULATION OPT’S Guard Tone) AT&P Always=40% →...
  • Page 30 Table 9. Germany Settings (Continued) Features Settings AT*TT 30 sec AT*TT0 → 60 sec AT*TT2 (DIALING OPT’S Call Timeout) DL TX Level Always=–10dBm → (TELCO OPT’S DL TX Level) LL TX Level Always=–9dBm → (TELCO OPT’S LL TX Level) If you issue the ATD command without an attached telephone number, the modem responds: ERROR. Note: Default settings shown in bold.

  • Page 31: Hong Kong

    Hong Kong Table 10. Hong Kong Settings Features Settings → (TEST OPT’S Test) → (ACU OPT’S Call Progress) AT&D7 AT&D2 → (TERMINAL OPT’S DTR) AT&G → (MODULATION OPT’S Guard Tone) AT&P Always=33% → AT&P1 (DIALING OPT’S Pulse Cycle) AT*AA Manual AT*AA0 →...
  • Page 32 Table 10. Hong Kong Settings (Continued) Features Settings AT*TT 30 sec AT*TT0 → 60 sec AT*TT2 (DIALING OPT’S Call Timeout) 90 sec AT*TT3 180 sec AT*TT4 DL TX Level Always=–9dBm → (TELCO OPT’S DL TX Level) LL TX Level Always=–11dBm →...

  • Page 33: Ireland

    Ireland Table 11. Ireland Settings Features Settings Test=Busy Out (ATH1) → Restricted in 3265/6 (ATH0) (TEST OPT’S Test) ATX=4 → (ACU OPT’S Call Progress) AT&D7 Restricted AT&D2 → (TERMINAL OPT’S DTR) AT&G Always=1800 (AT&G2) → in 3266/8 (MODULATION OPT’S Guard Tone) AT&P Always=33% →...
  • Page 34 Table 11. Ireland Settings (Continued) Features Settings AT*TT 30 sec AT*TT0 → 60 sec AT*TT2 (DIALING OPT’S Call Timeout) DL TX Level Always=–8dBm → (TELCO OPT’S DL TX Level) LL TX Level Always=–12dBm → (TELCO OPT’S LL TX Level) If you issue the ATD command without an attached telephone number, the modem responds: ERROR. Note: Default settings shown in bold.

  • Page 35: Israel

    Israel Table 12. Israel Settings Features Settings → (TEST OPT’S Test) → (ACU OPT’S Call Progress) AT&D7 108.2/Bsy → (TERMINAL OPT’S DTR) AT&G → (MODULATION OPT’S Guard Tone) AT&P Always=40% → AT&P0 (DIALING OPT’S Pulse Cycle) AT*AA Manual AT*AA0 → Ring #2 AT*AA2 (ACU OPT’S...
  • Page 36 Table 12. Israel Settings(Continued) Features Settings AT*TT 30 sec AT*TT0 → 60 sec AT*TT3 (DIALING OPT’S Call Timeout) 90 sec AT*TT2 Using S7 AT*TT5 DL TX Level Always=–9dBm → (TELCO OPT’S DL TX Level) LL TX Level Always=0dBm → (TELCO OPT’S LL TX Level) If you issue the ATD command without an attached telephone number, the modem responds: ERROR.

  • Page 37: Italy

    Italy Table 13. Italy Settings Features Settings → (TEST OPT’S Test) ATX4 → (ACU OPT’S Call Progress) AT&D7 108.2/Bsy → (TERMINAL OPT’S DTR) AT&G → (MODULATION OPT’S Guard Tone) AT&P Always=38% → AT&P2 (DIALING OPT’S Pulse Cycle) AT*AA Manual AT*AA0 →...
  • Page 38 Table 13. Italy Settings (Continued) Features Settings AT*TT 30 sec AT*TT0 → Using S7 AT*TT5 (DIALING OPT’S Call Timeout) DL TX Level Always=–9dBm → (TELCO OPT’S DL TX Level) LL TX Level Always=–9dBm → (TELCO OPT’S LL TX Level) Note: Default settings shown in bold. Settings may vary depending on the modem model.

  • Page 39: Japan

    Japan Table 14. Japan Settings Features Settings → (TEST OPT’S Test) → (ACU OPT’S Call Progress) AT&D7 → (TERMINAL OPT’S DTR) AT&G Restricted → AT&G0 (MODULATION OPT’S Guard Tone) AT&P Always=33% → AT&P1 (DIALING OPT’S Pulse Cycle) AT*AA → (ACU OPT’S Answer) AT*BD Always=4 sec...
  • Page 40 Table 14. Japan Settings (Continued) Features Settings AT*TT 30 sec AT*TT0 → 45 sec AT*TT1 (DIALING OPT’S Call Timeout) DL TX Level Set to –15dBm; adjustable from 0 to –15dBm → (TELCO OPT’S DL TX Level) LL TX Level Set to –15dBm; adjustable from 0 to –15dBm →...

  • Page 41: Malaysia

    Malaysia Table 15. Malaysia Settings Features Settings Test=Busy Out (ATH1) → Restricted on all models (ATH0) (TEST OPT’S Test) → (ACU OPT’S Call Progress) AT&D7 &D0 to &D6 → (TERMINAL OPT’S DTR) AT&G → (MODULATION OPT’S Guard Tone) AT&P Always=33% →...
  • Page 42 Table 15. Malaysia Settings (Continued) Features Settings AT*TT 30 sec AT*TT0 → 60 sec AT*TT3 (DIALING OPT’S Call Timeout) 90 sec AT*TT2 Using S7 AT*TT5 DL TX Level Always=–9dBm → (TELCO OPT’S DL TX Level) LL TX Level Always=0dBm → (TELCO OPT’S LL TX Level) Note: Default settings shown in bold.

  • Page 43: Netherlands

    Netherlands Table 16. Netherlands Settings Features Settings → (TEST OPT’S Test) Always=4 → ATX4 (ACU OPT’S Call Progress) AT&D7 108.2/Bsy → (TERMINAL OPT’S DTR) AT&G AT&G0 → (MODULATION OPT’S Guard Tone) AT&P Always=38% → AT&P2 (DIALING OPT’S Pulse Cycle) AT*AA →...
  • Page 44 Table 16. Netherlands Settings (Continued) Features Settings AT*TT → (DIALING OPT’S Call Timeout) AT*PT Dial=Auto → Restricted (DIALING OPT’S Call Timeout) DL TX Level Always=–9dBm → (TELCO OPT’S DL TX Level) LL TX Level Always=–9dBm → (TELCO OPT’S LL TX Level) Note: Default settings shown in bold.

  • Page 45: Norway

    Norway Table 17. Norway Settings Features Settings → (TEST OPT’S Test) ATX4 → (ACU OPT’S Call Progress) AT&D7 108.2/Bsy → (TERMINAL OPT’S DTR) AT&G Restricted → AT&G0 (MODULATION OPT’S Guard Tone) AT&P Always=40% → AT&P0 (DIALING OPT’S Pulse Cycle) AT*AA Manual AT*AA0 →...
  • Page 46 Table 17. Norway Settings (Continued) Features Settings AT*TT 30 sec AT*TT0 → 60 sec AT*TT2 (DIALING OPT’S Call Timeout) DL TX Level Always=–10dBm → (TELCO OPT’S DL TX Level) LL TX Level Always=–9dBm → (TELCO OPT’S LL TX Level) Note: Default settings shown in bold. Settings may vary depending on the modem model.

  • Page 47: Portugal

    Portugal Table 18. Portugal Settings Features Settings Test=Busy Out (ATH1) → Restricted all models (ATH0) (TEST OPT’S Test) ATX4 → (ACU OPT’S Call Progress) AT&D7 Restricted (AT&D0 – AT&D6) → (TERMINAL OPT’S DTR) AT&G → (MODULATION OPT’S Guard Tone) AT&P Always33% →...
  • Page 48 Table 18. Portugal Settings (Continued) Features Settings AT*TT → (DIALING OPT’S Call Timeout) DL TX Level Always=–10dBm → (TELCO OPT’S DL TX Level) LL TX Level Always=–9dBm → (TELCO OPT’S LL TX Level) Note: Default settings shown in bold. Settings may vary depending on the modem model.

  • Page 49: Singapore

    Singapore Table 19. Singapore Settings Features Settings Test=Busy Out (ATH1) → Restricted in all models (ATH0) (TEST OPT’S Test) → (ACU OPT’S Call Progress) AT&D7 108.2/Bsy → (TERMINAL OPT’S DTR) AT&G → (MODULATION OPT’S Guard Tone) AT&P → (DIALING OPT’S Pulse Cycle) AT*AA →...
  • Page 50 Table 19. Singapore Settings (Continued) Features Settings DL TX Level Always=–9dBm → (TELCO OPT’S DL TX Level) LL TX Level Always=–9dBm → (TELCO OPT’S LL TX Level) Note: Default settings shown in bold. Settings may vary depending on the modem model.

  • Page 51: South Africa

    South Africa Table 20. South Africa Settings Features Settings → (TEST OPT’S Test) ATX4 → (ACU OPT’S Call Progress) AT&D7 108.2/Bsy → (TERMINAL OPT’S DTR) AT&G Always=1800 (AT&G1) → Models 3265/7 (MODULATION OPT’S Guard Tone) AT&G1 1800 AT&G2 3266/8 AT&P Always=33% →...
  • Page 52 Table 20. South Africa Settings (Continued) Features Settings AT*TT 30 sec AT*TT0 → 60 sec AT*TT2 (DIALING OPT’S Call Timeout) DL TX Level Always=–9dBm → (TELCO OPT’S DL TX Level) LL TX Level Always=–9dBm → (TELCO OPT’S LL TX Level) Note: Default settings shown in bold.

  • Page 53: Spain

    Spain Table 21. Spain Settings Features Settings Test=Busy Out (ATH1) → Restricted in all models (ATH0) (TEST OPT’S Test) Always=4 → ATX4 (ACU OPT’S Call Progress) AT&D7 Restricted (AT&D0 – AT&D6) → (TERMINAL OPT’S DTR) AT&G → (MODULATION OPT’S Guard Tone) AT&P Always33% →...
  • Page 54 Table 21. Spain Settings (Continued) Features Settings AT*TT 30 sec AT*TT1 → 60 sec AT*TT2 (DIALING OPT’S Call Timeout) DL TX Level Always=–11dBm → (TELCO OPT’S DL TX Level) LL TX Level Always=–6dBm → (TELCO OPT’S LL TX Level) Note: Default settings shown in bold. Settings may vary depending on the modem model.

  • Page 55: Sweden

    Sweden Table 22. Sweden Settings Features Settings → (TEST OPT’S Test) Always=4 → ATX4 (ACU OPT’S Call Progress) AT&D7 108.2/Bsy → (TERMINAL OPT’S DTR) AT&G → (MODULATION OPT’S Guard Tone) AT&P Always=40% → AT&P0 (DIALING OPT’S Pulse Cycle) AT*AA → (ACU OPT’S Answer) AT*BD...
  • Page 56 Table 22. Sweden Settings (Continued) Features Settings AT*TT 30 sec AT*TT0 → 60 sec AT*TT2 (DIALING OPT’S Call Timeout) DL TX Level Always=–13dBm → (TELCO OPT’S DL TX Level) LL TX Level Always=–13dBm → (TELCO OPT’S LL TX Level) Note: Default settings shown in bold. Settings may vary depending on the modem model.

  • Page 57: Switzerland

    Switzerland Table 23. Switzerland Settings Features Settings → (TEST OPT’S Test) Always=4 → ATX4 (ACU OPT’S Call Progress) AT&D7 108.2/Bsy → (TERMINAL OPT’S DTR) AT&G → (MODULATION OPT’S Guard Tone) AT&P → (DIALING OPT’S Pulse Cycle) AT*AA Manual AT*AA0 → Ring #2 AT*AA2 (ACU OPT’S...
  • Page 58 Table 23. Switzerland Settings (Continued) Features Settings AT*TT 30 sec AT*TT0 → 60 sec AT*TT2 (DIALING OPT’S Call Timeout) DL TX Level Always=–9dBm → (TELCO OPT’S DL TX Level) LL TX Level Always=–9dBm → (TELCO OPT’S LL TX Level) Note: Default settings shown in bold. Settings may vary depending on the modem model.
  • Page 59 United Kingdom Table 24. United Kingdom Settings Features Settings → (TEST OPT’S Test) ATX=0 → (ACU OPT’S Call Progress) AT&D7 → (TERMINAL OPT’S DTR) AT&G AT&G1 → 1800 AT&G2 (MODULATION OPT’S Guard Tone) 3265/7 Always=1800 (AT&G2) in 3266/8 AT&P Always=33% →...
  • Page 60 Table 24. United Kingdom Settings (Continued) Features Settings AT*TT 30 sec AT*TT0 → 60 sec AT*TT2 (DIALING OPT’S Call Timeout) DL TX Level Always=–9dBm → (TELCO OPT’S DL TX Level) LL TX Level Always=–13dBm → (TELCO OPT’S LL TX Level) Note: Default settings shown in bold.
  • Page 61 Universal Table 25. Universal Settings Features Settings Test=Busy Out (ATH1) → Restricted (ATH0) (TEST OPT’S Test) ATX=4 → (ACU OPT’S Call Progress) AT&D7 AT&D2 → (TERMINAL OPT’S DTR) AT&G AT&G2 → (MODULATION OPT’S Guard Tone) AT&P AT&P1 → (DIALING OPT’S Pulse Cycle) AT*AA AT*AA5...
  • Page 62 Table 25. Universal Settings (Continued) Features Settings AT*TT *TT2 → (DIALING OPT’S Call Timeout) DL TX Level Set to –9dBm; adjustable from 0 to –15dBm → (TELCO OPT’S DL TX Level) LL TX Level Set to 0dBm; adjustable from 0 to –15dBm →...
