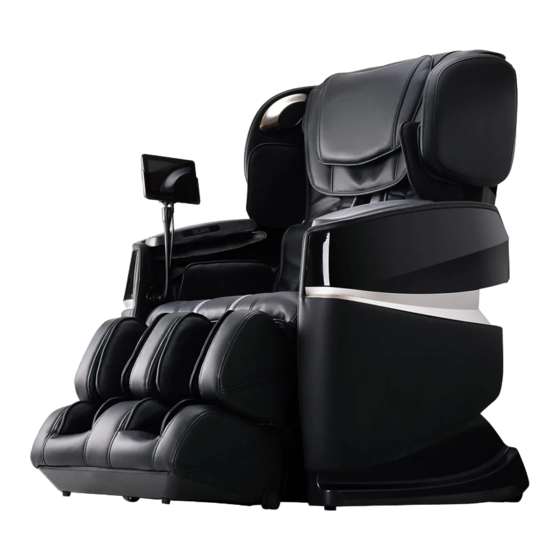

- Page 1 OG-7010 OG-7010...
- Page 2 Assembly Instructions OG-7010 massage chair arrives in three boxes. The base is packed in box 1, the backrest is packed in box 2, and the side boards packed in box 3. As pictured below. OGAWA OG-7010. OGAWA Box 1:The Base...
- Page 3 Cut the cable tie, which is used to secure the backrest actuator while shipping. Preferably using two people, carefully set the backrest on the cradle points on the base. Remove the protective material that is wrapped on the backrest actuator. Remove the cotter pin With the backrest in a vertical position, ensure it properly engages to the base.
- Page 4 Connect the backrest 4-way air hose connecter to the air pump box. Recline the backrest until it locks into position. Locate the connecter on the inflator pump box. The air hose must be upward. Open box 3 and remove the two side boards. Locate the two zipper heads at bottom edge of the Locate connector on PCB tray.
- Page 5 Connect the air hose and then the wire harness to their appropriate connectors. Carefully Remove the protective cloth strips on the backrest pad and attach the backrest pad onto attach the side board onto the base. Align and insert the two metal bars on the base into the holes under backrest.
- Page 6 Attach the tablet holder onto right side armrest. The attach the tablet onto the holder. As pictured below. Connect the chair to power supply, turn on the power switch. Then you can enjoy your massage chair. Locate the power switch...
