Summary of Contents for Faber TORENTINO 90SS

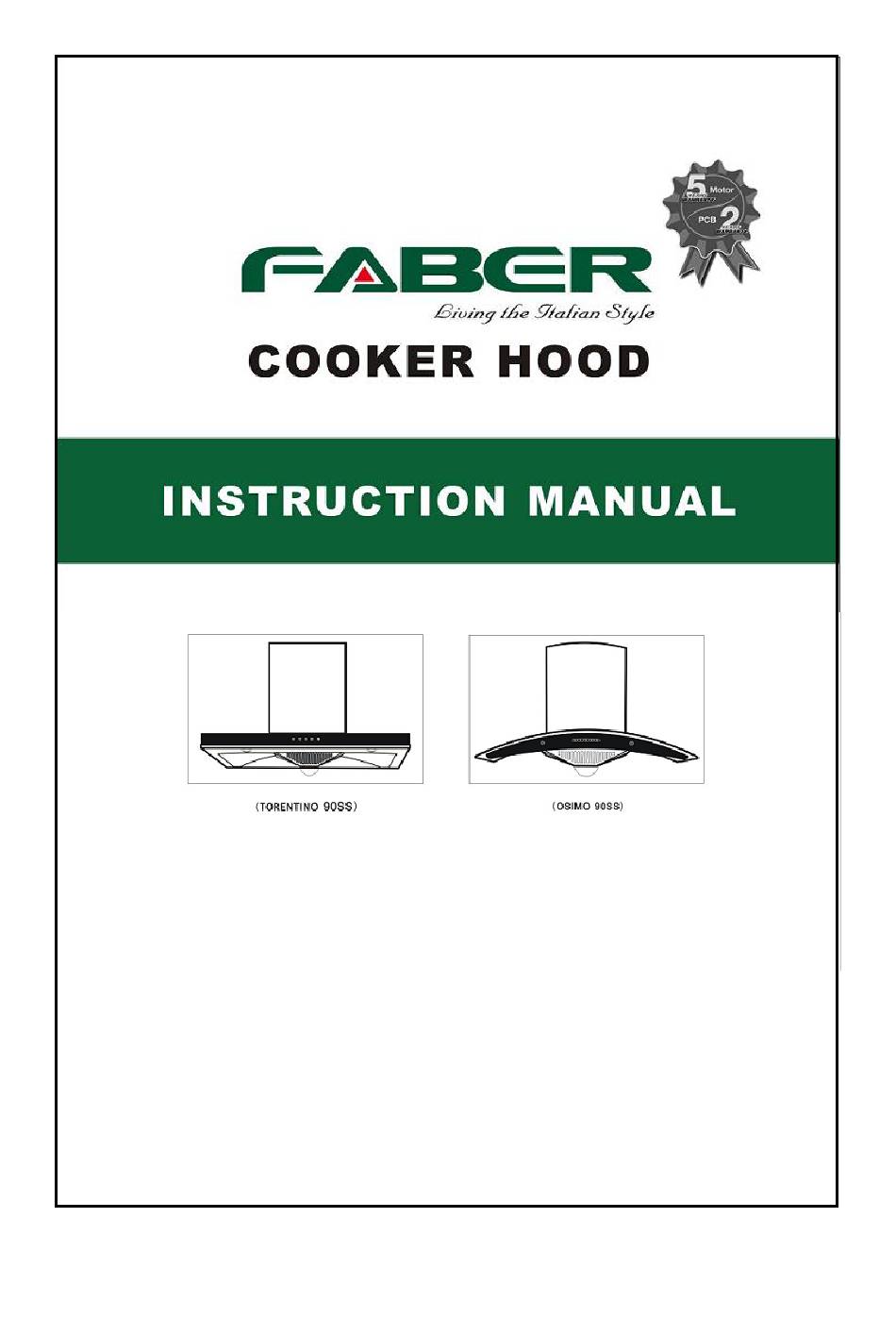

  • Page 1 (FORTE 90SS)
  • Page 2: Product Characters

    TO The Users Thanks for your choosing of the products from us. The top grade kitchen ware series products produced by FABER have elegant outlooking, high quality material and most fine process. Please read the instruction manual carefully before installation and operation to the products.
  • Page 3 fashionable contour design. Big suction power, which can eliminate the oil smoke thoroughly, the unitized tensile gas- collection hood fits with the exhaust fume collecting area for kitchen in better manner. It introduces the twin air-intake centrifugal blower fan with very large air exhaust amount, which can eliminate the smoke more thoroughly.
  • Page 4: Specifications

    11. Turned off the power plug before replacing the light bulb. Turn on the cooker hood to ensure the power supply is cut off. The power of the bulb replace must be lower than 2W to avoid damaging the oil and smoke exhauster for overheating and ignition. 12.
  • Page 5 the cooker hood and cleaned by the grease filters and then directed outside. The anti- backflow vent cap is needed for this operation mode. The anti-backflow vent cap will be fixed at the end of the ducting which is outside the kitchen at the opening on the wall. This vent cap is to block the vented fumes and air flow back into the ducting and the vent cap will be closed once the cooker hood turns off.
  • Page 6 3) Installation Notes Before installation, it is very important and needed to read and understand the stated safety notes, instructions and related information in this manual. This is to ensure the appliance could be installed appropriately and the user would use it in a proper method in order to avoid any unnecessary injury and damages.
  • Page 7 5) Electrical requirements 1. The electrical work should be carried out by a suitably qualified and authorized professional in strict accordance with the current local and national safety regulations. 2. Make sure the appliance is not connected to the power supply while during the installation. 3.
  • Page 8 blockings are not available, it is required to build a supporting structure behind the sheet rock for best weight support. - Concrete wall: Use designated screws (not provided). - Wood wall: Use at least 4 inches long wood screws (not provided). 11.
  • Page 9: Switch Operation

     SWITCH OPERATION [ MODEL NO.: OSIMO 90SS/FORTE90SS ] [ MODEL NO.: TORENTINO 90SS ] Light : To turn on/ off the LED light : To work at low speed Medium : To work at medium speed High : To working at high speed...
  • Page 10: Maintenance And Cleaning

    The setting timer is for 10 minute. Note: Light settings are independent from other settings (including delay-off) and lights have to be manually turned on or off. Note: The range hood will saves user configurations, setting such as fan speed and they will remain the same until next use.
  • Page 11 3. For stainless steel hood, user may use stainless steel cleaner to clean the surface of the hood. Please avoid the cleaning solution penetrate into the control panel. Do not leave the cleaner on the hood too long as this may damage to the surface. Use soft towel to wipe off the cleaning solution, gently rub off any stubborn spots.
  • Page 12: Troubleshooting

    6. Do not use abrasive detergent, powder cleaner, oven cleaner, cream cleaner and any other corrosive cleaning agent that will damage or discolor the filters. 7. Depend on the cleaning detergent used, to clean the filters in a dishwasher can cause permanent dis-color to the filters.
  • Page 13 The range hood performs badly. Make sure the ducting is of 7 inches diameter. Make sure the ducting is not too long or have more than 2 bents. Make sure the vent cap is not lock tight. Refer to the exhaust ventilation for more guides.

This manual is also suitable for:

Osimo 90ssForte 90ss
