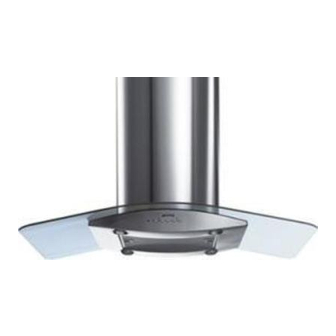

- Page 1 Libretto Istruzioni Instruction Manual Manuel d’Instructions Bedienungsanleitung Gebruiksaanwijzing Arco Isola Plus...
- Page 2 Dear Customer, If you follow the recommendations contained in this Instruction Manual, your appliance will give you constant high performan- ce and will remain efficient for many years to come.
- Page 3 • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. • The minimum safety distance between the cooker top and the extractor hood is 650 mm. • Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
- Page 5 7.1a 7.1b 14.1...
- Page 6 • Use a plumb line to mark the centre of the hob on the ceiling/support shelf. • Place the drilling template 21 provided on the ceiling/support shelf, making sure that the template is in the correct position by lining up the axes of the template with those of the hob. •...
- Page 7 Upper frame • Align the power supply cable feed hole • Fix the upper frame to the ceiling or shelf using: • For concrete ceilings, use the appropriate plugs for the screw size (not provided). • For hollow brick ceilings of wall thickness of approximately 20 mm: use 4 plugs 11 and 4 screws 12h, provided.
- Page 8 • Position the upper chimney section and fix the upper part to the frame using the 2 screws 12c provided. • Fit the lower chimney section onto the frame, holding it in place until the hood body has been fixed in place. Recirculation version •...
- Page 9 Light Switches the lighting system on and off. Motor running led. Flashes when the grease filters are saturated. Intensive speed led. Flashes when the activated carbon odour filters are exhausted. Motor Switches the extractor motor on and off at low speed. Used to provide a contin- uos and silent air change in the presence of light cooking vapours.
- Page 10 Alarm signal reset • Switch off the lights and extractor motor. • Press button V3 for at least 3 seconds, until the leds start to flash. Cleaning the filters • The filters are washable and must be cleaned when led S1 flashes or at least every 2 months of operation, or more frequently for particularly heavy usage.
- Page 11 • The filter is not washable and cannot be regenerated. It must be replaced when led S2 flashes or at least every 4 months. The alarm signal will only light up when the extractor motor is switched on. Alarm signal reset •...
- Page 12 Quest’apparecchio è conforme alla norma europea sulla bassa tensione C.E.E. 73/23 relativa alla sicurezza elettrica e alle norme europee: C.E.E. 89/336 relativa alla compatibilità elettromagnetica e C.E.E. 93/68 relativa alla marcatura CE. This appliance conforms to European Low Voltage Directive 75/23/CEE governing electrical safety, European Directive 89/ 336/CEE on Electromagnetic Compatibility and Directive 93/68/CEE regarding CE Marking.
