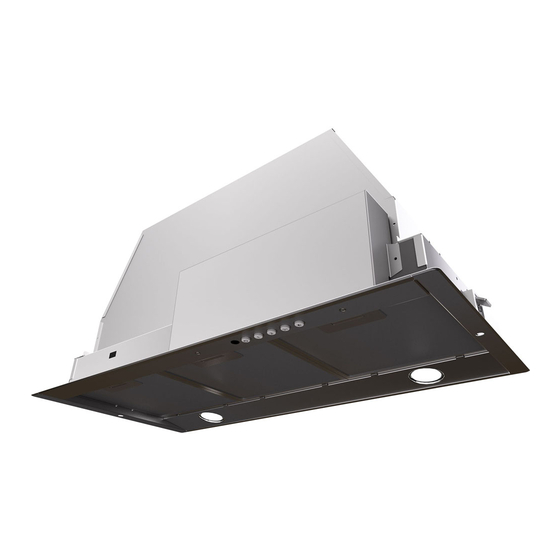

Faber INHC29SS Manual

Faber INHC29SS Manual

Built-in collection standard series, the high powered hideaway, 600 cfm with electronic controls

Advertisement

Quick Links

UPDATED 2011 MODEL - 600 CFM WITH ELECTRONIC CONTROLS
Inca HC SS
the high powered hideaway
high capacity insert
°
fits custom hoods 30" wide and up
°

stainless steel finish

°
600 cfm
°
2 halogen lights
°
3 speed LED electronic controls
°
10 minute intensive speed setting
°
dishwasher safe stainless grease filters
°
convertible to recirculating *
°
top or direct rear venting
°
built-in mounting system
°
sone range: 3.5 - 6.5
°
6" round duct
°
* it is highly recommended that
professional style cooking always be
vented to the outside.
Size/Color/Model #
29 Stainless
a
CFM Reducer Kit
c
For use in make up air environments where
c
an under 300 cfm hood is required. This
e
kit reduces the ducting to 5" round and
reduces the cfm to under 300
s
s
Liners
o
Create a perfectly-sealed, non-com-
bustible perimeter around the Inca
r
HC SS. Depth adjustable from 16" -
(Shown at Right)
i
17 7/8".
Standard Liner 30 Stainless
e
s
Standard Liner 36 Stainless
p.o. box 435 • Wayland, MA 01778 • tel: (508) 358-5353 • fax: (508) 358-5730 • e-mail: info@faberonline.com • www.faberonline.com
INHC29SS
# CFMRED
620000304
620000305
Built - In Collection
Standard Series
The Inca HC SS power pack is perfect for the
homeowner who needs powerful ventilation, but
does not want to see a rangehood at all. This
exceptionally finished power pack installs effortlessly
into your custom cabinet or hood (30" wide and up)
New backlit electronic controls with a blue LED light to
indicate the current speed and lighting on/off

Charcoal Filters

6093034
For recirculating installations, high
quality, heavy duty filters ensure
the removal of smoke and odors
from the kitchen. Some ductwork
is required to exhaust the unit out
of the cabinet.

Advertisement

loading
Need help?

Need help?

Do you have a question about the INHC29SS and is the answer not in the manual?

Questions and answers

Summary of Contents for Faber INHC29SS

  • Page 1: Stainless Steel Finish

    (30” wide and up) Size/Color/Model # 29 Stainless INHC29SS New backlit electronic controls with a blue LED light to indicate the current speed and lighting on/off Charcoal Filters...
  • Page 2 Dimensional Diagrams Side View Cut-Out Note: The Inca HC comes standard in the top vent position. The direct rear vent Front View position can be achieved by rotating the blower housing. Bottom View Liners Create a perfectly-sealed, non-combustible perimeter around the Inca HC SS. Designed for 30” and 36” wide installations. Depth adjustable from 16” - 17 7/8”. Standard Liner 30 Stainless (620000304) Standard Liner 36 Stainless (620000305) designed for 30”...

This manual is also suitable for:

Inca hc ss
