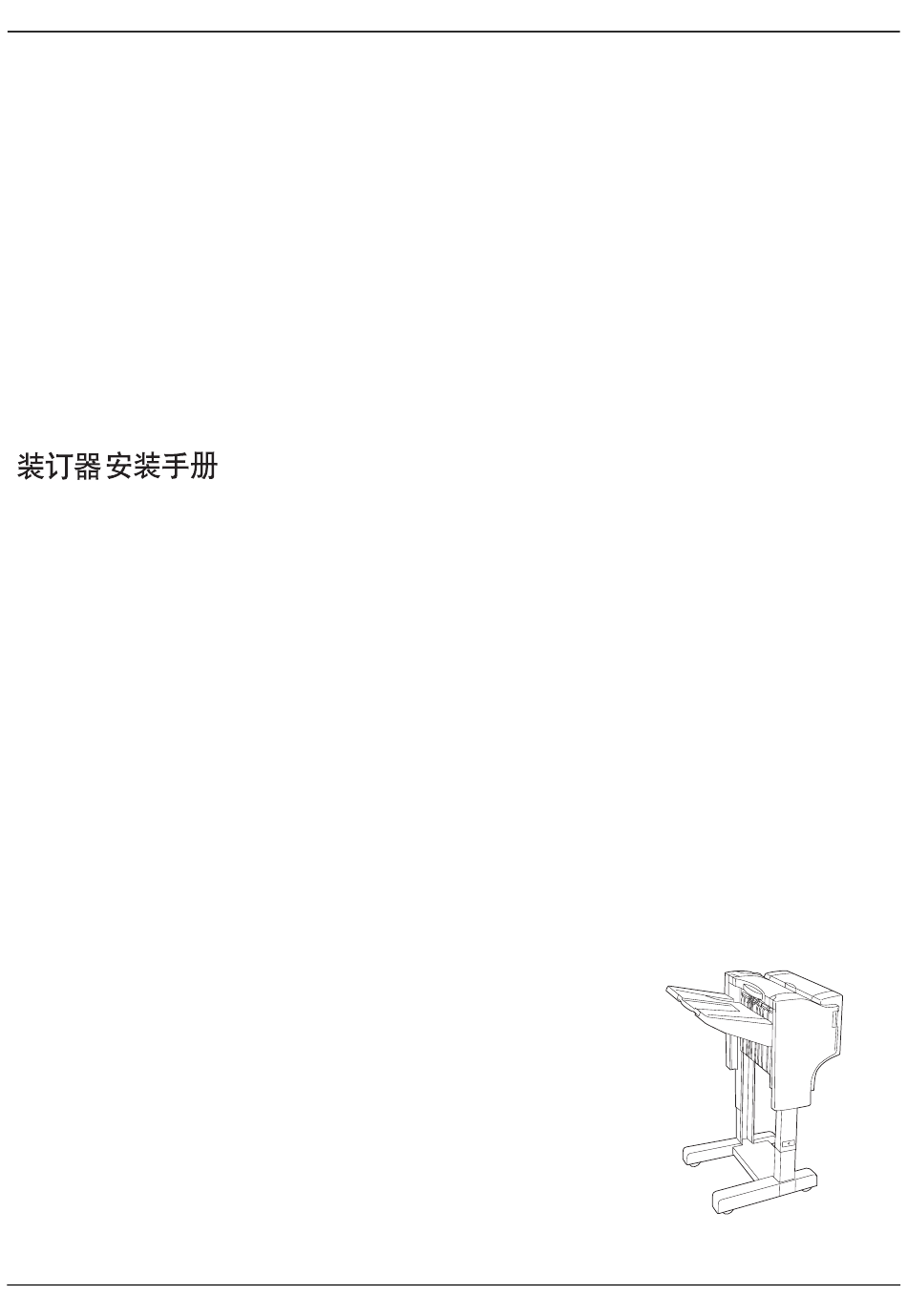

INSTALLATION GUIDE FOR DOCUMENT FINISHER
GUIDE D'INSTALLATION DU RETOUCHEUR DE DOCUMENT
GUÍA DE INSTALACIÓN PARA EL FINALIZADOR DE DOCUMENTOS
INSTALLATIONSANLEITUNG FÜR DOKUMENT FINISHER
GUIDA ALL'INSTALLAZIONE DI FINITRICE DI DOCUMENTI
ドキュメントフィニッシャ設置手順書
DF-730

Advertisement

loading
Need help?

Need help?

Do you have a question about the DF-730 and is the answer not in the manual?

Questions and answers

Related Manuals for Kyocera DF-730

Summary of Contents for Kyocera DF-730

  • Page 1 INSTALLATION GUIDE FOR DOCUMENT FINISHER GUIDE D’INSTALLATION DU RETOUCHEUR DE DOCUMENT GUÍA DE INSTALACIÓN PARA EL FINALIZADOR DE DOCUMENTOS INSTALLATIONSANLEITUNG FÜR DOKUMENT FINISHER GUIDA ALL’INSTALLAZIONE DI FINITRICE DI DOCUMENTI ドキュメントフィニッシャ設置手順書 DF-730...

  • Page 3: Supplied Parts

    AK-71C E Binding screw M4 × 6 ........4 For installing the document finisher to a full- English F Binding screw M4 × 10........4 color machine, parts (H), (I), and (J) above G Clamp supplied with the job separator are needed. (Not used for full-color machines)....1 Supplied parts For full-color machines, two pieces of (F) are not...
  • Page 4 When installing the document finisher to a full- [Steps 1 to 4 below are only for full- 2. To align the document finisher with the paper color machines.] color machine, install the job separator in outlet of the MFP, slide the legs of the advance.
  • Page 5 3. Fit the fixing plate F (H) and the fixing plate 4. Fit the latch catch that has been assembled [Steps 1 to 6 below are only for monochrome machines.] R (I) to the latch catch (B) using an S Tite in step 3 to the left cover (3) using the two S screw M4 ×...
  • Page 6 3. Fit the curl eliminator (K) to the eject cover 5. Close the eject cover (1). 7. Align the rail retainer (C) with the groove of (1) such that the projections (4) on the cover 6. Fit the latch catch (B) to the eject cover (1) the guide rail (D) and attach the rail retainer fit into the two ends of the curl eliminator (K).
  • Page 7 8.0 mm 8.0 mm 8. Orient the guide rail (D) such that its pulley 9. Secure the rail retainer (C) to the MFP using 10. Insert the guide rail (D) into the bottom of the (5) is positioned toward the MFP. two M4 ×...
  • Page 8 10mm 10mm Fitting and adjusting the guide rail 12. Separate the document finisher (A) from the 13. Loosen temporarily the two screws (7) that secure the sheet metal (6) of the rail mounting plate (C) on 11. While pressing the guide rail (D) to the MFP and secure it using two M4 ×...
  • Page 9 Slide the document finisher to engage it with the Adjusting the height of the document finisher latch catch of the MFP. If the document finisher and the MFP do not engage securely, perform 1. Remove the front and rear covers (9) from the following document finisher height the document finisher (A) by removing two adjustment.
  • Page 10 2. Loosen the two screws (10) on the rear right caster of the document finisher (A). Adjust the height of the rear right caster by turning its adjustment bolt (13) using a cross-headed screwdriver so that the axis of the pin (11) of the latch catch is aligned with the marking of the slot (12) of the document finisher (A) when the document finisher (A) is joined to the MFP (viewed from the machine front).
  • Page 11 3. Adjust the height of the front right caster in the same manner as in step 2 so that each center of 4. Adjust the height of the left two casters in the the hooking portions (15) of the latch catch is aligned with the center of the two hooks (14) on the same manner as in step 2 so that the right document finisher (A) when the document finisher (A) is joined to the MFP (viewed from above).
  • Page 12 5. Reattach the removed parts to their original Connecting the signal cable Connecting the signal cable (monochrome machines only) (full-color machines only) positions. 1. Connect the signal cable (17) of the 1. Connect the signal cable (17) of the document finisher (A) to the MFP, pass the document finisher (A) to the MFP.

  • Page 13: Operation Check

    Operation check 1. Insert the MFP power plug to the wall outlet and turn the main switch on. 2. Make test copies and check that the document finisher (A) operates correctly. Vérification du fonctionnement 1. Insérer la fiche d’alimentation du MFP dans la prise murale et mettre l’interrupteur principal sous tension.
  • Page 14 MEMO...
  • Page 16 2005. 11 305H156710 Rev.1.0...
