Installation and Configuration
System Telephone
COMfort DECT 800
COMfort DECT Base 128
COMfort DECT Repeater/
Repeater XA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMfort DECT 800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Auerswald COMfort DECT 800

Summary of Contents for Auerswald COMfort DECT 800

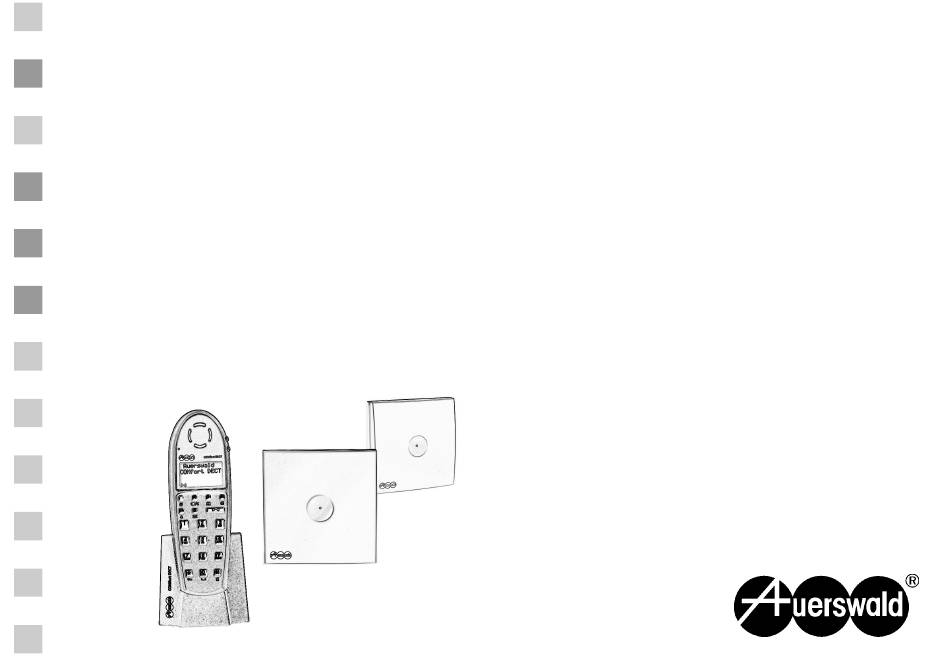

  • Page 1 Installation and Configuration System Telephone COMfort DECT 800 COMfort DECT Base 128 COMfort DECT Repeater/ Repeater XA...
  • Page 2 Passing on or duplicating the contents of this manual or parts of it is only allowed with our express written permis- sion. Offenders will be subject to claims for damages. All Rights Reserved. ˆ Auerswald GmbH & Co. KG, 38162 Cremlingen, 2004...

  • Page 3: Table Of Contents

    Contents Contents Introduction..................................4 Functional Description and Scope of Functions ....................4 Scope of Functions and Features ..........................5 Tips for the Use of this Manual ...........................6 Symbols used in the Manual ..........................7 Terms/Abbreviation used in the Manual.........................7 Safety Precautions...............................7 Technical Data..............................8 Commissioning.................................10 Basics about the Installation ..........................10 Installation Location of COMfort DECT Base 128 ....................10 Installation Location of COMfort DECT Repeater ....................10...

  • Page 4: Introduction

    There is first of all of the base station (COMfort DECT Base 128) and the handset (COMfort DECT 800). You can log in up to eight COMfort DECT 800 handsets to one base station. With the COMfort DECT repeaters (XA), (available as an option) you can bridge distances of up to 1000 m e.g.

  • Page 5: Scope Of Functions And Features

    The operation of the telephones on other PBX systems than recommended or on the public tele- phone network is not intended. COMfort DECT 800 Illuminated 3-digit display with 12 characters per line, one symbol line Vibration ringer and optical call signalization via LED Up to 65 (actual number is subject to the firmware version) telephone book entries per handset –...

  • Page 6: Tips For The Use Of This Manual

    Power supply of the COMfort DECT Base 128 via internal S port of the PBX Up to 8 COMfort DECT 800 per COMfort DECT Base 128 (3 handsets may be called within one call distribution for an external number) LED for status display (S...

  • Page 7: Symbols Used In The Manual

    Introduction The index on page 35 helps you to find certain text portions for a certain term. In the texts you will be referred to other chapters or pictures with the help of cross references. They illustrate the respective theme. On the right side the headlines of the paragraph will be repeated.

  • Page 8: Technical Data

    Common Ambient temperature 0 to 40°C Safety Case Transmission protocol DECT/GAP COMfort DECT 800 Operation voltage Rechargeable battery pack 3,6 V (Ni-MH 600 mAh) Charge time of the rechargeable batteries app. 3,5 hours Operation time up to 120 hours stand-by, up to 12 hours when calling...
  • Page 9 Introduction COMfort DECT Base 128 Operation voltage via internal S port of the PBX Power consumption 4 W max. System connection internal S port of the PBX (COMmander Basic, COMmander Basic 19", COMpact 4410 USB, COMpact 2206 USB or COMpact 4406 DSL) Range up to 300 m at line of sight, up to 50 m in buildings Size (H x W x D)

  • Page 10: Commissioning

    Commissioning COMMISSIONING Basics about the Installation Before starting the configuration of a DECT system, the circumstances have to be defined for the installation of the individual components. Installation Location of COMfort DECT Base 128 Only a connection to an internal S port of the PBX is necessary for the installation.

  • Page 11: Connect The Base Station To The Pbx

    You will find additional advice about the correct installation and use of base stations and repeaters in the technical tip „COMfort DECT“ (under service/support in the Internet at http://www.auers- wald.de or on the Auerswald Mega Disk version 4.42 or newer). pic. 1 pic.
  • Page 12 The Auerswald PBX must be connected to the 230 V mains for installation of the system telephone. In order to operate the system telephone on the PBX systems COMpact 4410 USB, COMpact 2206 USB, COMpact 4406 DSL, COMmander Basic and COMmander Basic 19", these Auerswald PBX systems must have the Software version 1.6A or newer.

  • Page 13: Login Of The Handset To The Base Station

    Commissioning Login of the Handset to the Base Station To connect a handset to the base station as described later, the following preconditions have to be fulfilled first: The base station has to be connected to the PBX and the battery pack of the handset has to be connected to the handset and charged (see manual of the handset).
  • Page 14 Select the menu „Set up“. Open the menu „Login“. Start the subscription. The handset searches for a base station within reach that is in the subscription mode (chapter Start the Log in at the Base Station on page 13). This may take some seconds. The handset has located a base station.
  • Page 15 Commissioning Enter the last 4 digits of the serial number of the base station (in this example „3 3 1 4“) and confirm the entry by pressing OK. The subscription may take some seconds. A positive confirmation tone can be heard and the display changes into the idle menu.

  • Page 16: Assign Internal Telephone Numbers To The Handsets

    Assign internal Telephone Numbers to the Handsets The internal telephone numbers are assigned to the individual handsets with the configuration pro- gram COMset of the PBX. For this purpose the base station has to be connected to the internal S bus of the PBX.
  • Page 17 Commissioning pic. 5...
  • Page 18 Otherwise you can directly enter the se- serial number rial number after clicking twice into the corresponding entry field. You can read the serial number on the sticker (pic. under the battery pack in the handset pic. 6 (open the rechargeable battery cover; see user manual of the handset) or in- terrogate it on the handset as described here:...

  • Page 19: Logout Of The Handset From The Base Station

    Commissioning If you have finished entering all settings, you have to transfer the configuration into the PBX (File ... Save ... PBX). The field with the manually entered serial number remains marked in blue until the handset has been correctly subscribed to the base station (see chapter Login of the Handset to the Base Station on page 13) and the configuration is read out again.

  • Page 20: Delete Serial Number Of The Base Station Out Of The Handset

    Delete Serial Number of the Base Station out of the Handset Open the main menu. Select menu „set up“. Open the menu „Login“. Select the menu „select login“. Open the menu „subscription remove“.
  • Page 21 Commissioning Enter the digit sequence 0 0 0 0 and confirm the 0000 entry by pressing OK. Confirm by pressing OK. Delete the displayed serial number from the hand- set. If the handset has been logged-in to several base stations and the serial number of the previous base station has not been deleted before starting a new login, you can select this serial number by scrolling with the arrow keys and delete it also.

  • Page 22: Subscribe A Repeater To The Base Station

    If you like to cascade two or three repeaters (a maximum of three is possible), the login has to be done via PC. You will need the „COMfort DECT Repeater Tools“ (special accessory of Auerswald) as well as the corresponding PC program (see chapter Cascade the Repeaters on page 24).
  • Page 23 Commissioning Start the subscription mode in the base station. For this purpose press the pushbutton at the base station (pic. 4 on page 12) for some seconds (similar to the login of a handset). The repeater synchronizes with the base station in the subscription mode. This is indicated by a quickly flashing LED.

  • Page 24: Cascade The Repeaters

    If you like to cascade two or three repeaters (a maximum of three is possible), the login has to be done via PC. You will need the „COMfort DECT Repeater Tools“ (special accessory of Auerswald). It contains an adapter cable, a PC cable for the V.24 interface and the corresponding PC program ServiceTool.
  • Page 25 Commissioning pic. 10 to the serial to a freely accessible 230 V interface (V.24) of the PC mains outlet with protective earth...
  • Page 26 Put the wall-mount power supply into a freely accessible 230 mains outlet with protective earth. Switch the PC on, install the PC program ServiceTool and start it. Select the correct COM port on the page „Communications“. Click on the button „Set Comport ...“...

  • Page 27: Measure The Field Strength And The Quality Of The Radio Signal

    Commissioning Measure the Field Strength and the Quality of the Radio Signal To measure the field strength and the quality of the radio signal, the handset has a built-in test func- tion. Open this function as described here: 99989 Enter the digit sequence 99989 Confirm by pressing OK.

  • Page 28: Attach Base Station/Repeater To The Wall

    - Third value (in the example ): In the third place there is the field strength. In the example the radio signal is received with a field strength of 104. (The punctuation mark „:“ stands for a value of 100 plus the following digit. That means „:4“ stands for the value „104“, a semicolon „;“ stands for 110 plus ...) - Fourth value (in the example ): In the fourth place there is the radio channel.
  • Page 29 Commissioning Make sure that no supply pipes or cables are underneath of the marks. Drill the mounting holes with a diameter of 6mm and put dowels into the holes. Base station: Screw the screws into the wall until the 5 mm screw heads have a distance of app.
  • Page 30 pic. 13 pic. 14 Repeater...

  • Page 31: Transfer Telephone Numbers From The Short-Code Memory

    Commissioning Transfer Telephone Numbers from the short-code Memory With the PC program COMtools you can load short-code numbers from the PBX into the handsets. (The number of entries depends on the firmware version of the handset.) For this purpose the base station has to be connected to the PBX.
  • Page 32 pic. 15...

  • Page 35: Index

    Index INDEX abbreviations .......7 handset repeater assign telephone number ...16 cascade ........24 assign telephone number ..16 logout .........19 subscription ........22 subscription ........13 wall mounting ......28 transfer short-code numbers ..31 base station connecting ........11 safety precautions .......7 wall mounting ......28 installation location ....10 scope of functions .......4 introduction ........4 subscription of handsets ..13...
