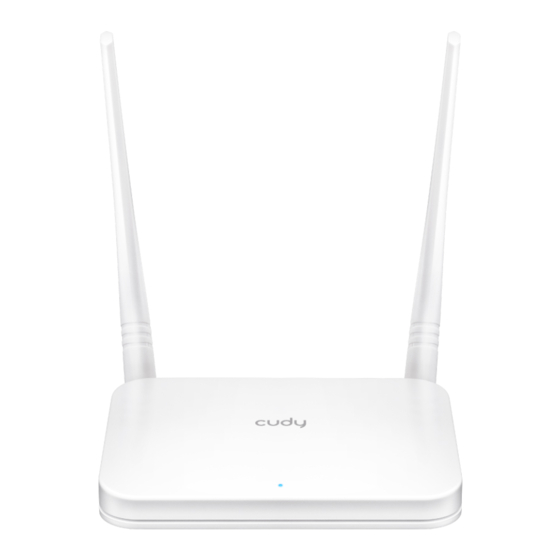

Cudy WR300 Quick Installation Manual

Quick Installation

Guide

Router Mode

If your internet connection is through an
ethernet cable directly from the wall instead of
through a DSL/Cable/Satellite modem, connect
the Ethernet cable to the router's WAN port,
then follow step 4 and 5 to complete the
hardware connection.
Modem
Connect to the internet
Connect to the power socket
6 Configure the router
1. Connect your computer to the router by Wired or Wireless, shown
as below.
Wired
Turn off the Wi-Fi on your computer and connect it to the LAN port of
Cudy router via an Ethernet cable.
Wireless
Connect your device to the router's Wi-Fi using the SSID (network
name) and SSID Password printed on the label at the bottom of the
router.
Turn off the modem, and
1
remove the backup
battery if it has one.
3 Turn on the modem and
then wait about 2 minutes
for it to restart.
2
WAN Port, Connect XDLS/Cable Modem/Ethernet
2. Launch a web browser, and enter 192.168.10.1 in the address bar.
Use admin for username and password to log in.
Note: If the login window does not appear, please refer to FAQ > Q1.
The server 192.168.10.1 at Cudy WR300 requires a username and
password.
Warnig: This server is requesting that your username and password
be sent in an insecure manner(basic authentication without a secure
connection).
admin
admin
OK
3. Router Management screen will appear(Router mode default).
Access Point Router Repeater Repeater WISP
Service Set identifier (SSID): Cudy-XXXX
Pre-Shared Key: XXXXXXXXXX
WAN Connection Type:
Fixed IP Auto Config (DHCP)
Host Name: Cudy-XXXX
Clone MAC Address: 00:00:00:00:00:00 (XX:XX:XX:XX:XX:XX)
Save/Apply Cancel
Then set your router network name(SSID) and password.
Service Set identfier(SSID):
Pre-Shared Key:
4. If your connection type is PPPoE, you need to choose PPPoE Dial-up,
and input the account and password that ISP provide, then click
Save/Apply.
Cancel
WAN Connection Type:
User Name:
Password:
Clone MAC Address:
Client Client WISP
If your connection type is DHCP , choose Auto Config(DHCP), and click
Save/Apply.
PPPoE Dial-up
If your connection type is Fixed IP, you need to configure the information
which provided by ISP, then click Save/Apply.
Enjoy the internet!
Verify that the following LEDs stay on
5
to confirm the hardware is connected
correctly.
4
Connect the power adapter to the router .
Cudy-XXXX
XXXXXXXXXX
Fixed IP Auto Config (DHCP) PPPoE Dial-up
Cudy-XXXX
XXXXXXXXXX
00:00:00:00:00:00 (XX:XX:XX:XX:XX:XX)
Save/Apply Cancel
