2.3 Horizontal Unit

1. Ensure that the end studs and strap are installed (see Fig.
6 and 7).
2. Unscrew the top screw (see Fig. 3).
3. Pull the handles out, and rotate to the side (see Fig. 4).
4. The door can now be opened, but will have a maximum
swing of 105º (se Fig. 8).
Fig. 8
MAX 105°
MAX 105°

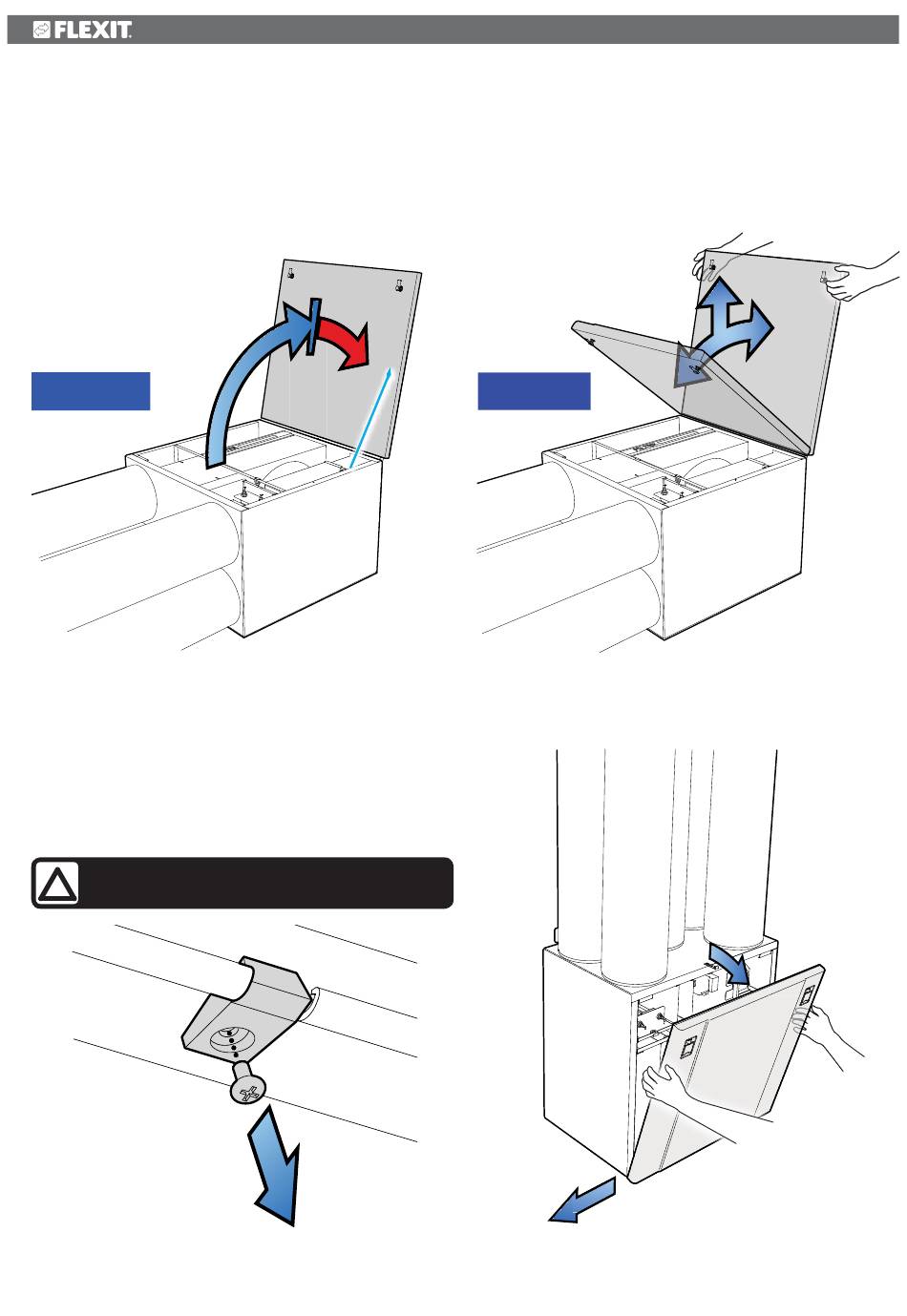

2.4 For Necessary Removal of Door

The door can be removed when it is open between 40º and
105º (see Fig. 9). If there is limited space in front of the unit,
the lock screw under the door can be temporarily unscrewed
(see Fig. 10), as well as the end studs if these are installed
(see Fig. 6). Then the door can be pushed out sideways (see
Fig. 11).
CAUTION! The door weighs 10kg, take care
!
when removing it.
Fig. 10
UNI 3 User Manual
Fig. 9
40-105°
40-105°
Fig. 11
