Instruction Manual

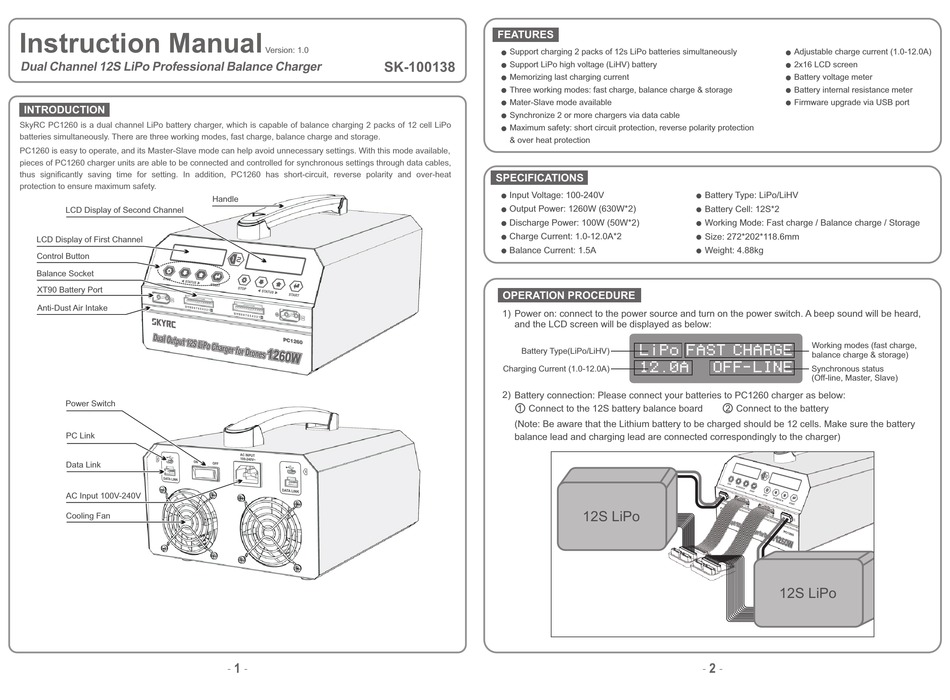

Dual Channel 12S LiPo Professional Balance Charger
INTRODUCTION
SkyRC PC1260 is a dual channel LiPo battery charger, which is capable of balance charging 2 packs of 12 cell LiPo
batteries simultaneously. There are three working modes, fast charge, balance charge and storage.
PC1260 is easy to operate, and its Master-Slave mode can help avoid unnecessary settings. With this mode available,
pieces of PC1260 charger units are able to be connected and controlled for synchronous settings through data cables,
thus significantly saving time for setting. In addition, PC1260 has short-circuit, reverse polarity and over-heat
protection to ensure maximum safety.
LCD Display of Second Channel
LCD Display of First Channel
Control Button
Balance Socket
XT90 Battery Port
Anti-Dust Air Intake
Power Switch
PC Link
Data Link
AC Input 100V-240V
Cooling Fan
Version: 1.0
SK-100138
Handle
-1-
FEATURES
Support charging 2 packs of 12s LiPo batteries simultaneously
Support LiPo high voltage (LiHV) battery
Memorizing last charging current
Three working modes: fast charge, balance charge & storage
Mater-Slave mode available
Synchronize 2 or more chargers via data cable
Maximum safety: short circuit protection, reverse polarity protection
& over heat protection
SPECIFICATIONS
Input Voltage: 100-240V
Output Power: 1260W (630W*2)
Discharge Power: 100W (50W*2)
Charge Current: 1.0-12.0A*2
Balance Current: 1.5A
OPERATION PROCEDURE
1)
Power on: connect to the power source and turn on the power switch. A beep sound will be heard,
and the LCD screen will be displayed as below:
L i P o F A S T C H A R G E
Battery Type(LiPo/LiHV)
1 2 . 0 A
Charging Current (1.0-12.0A)
2)
Battery connection: Please connect your batteries to PC1260 charger as below:
Connect to the 12S battery balance board
(Note: Be aware that the Lithium battery to be charged should be 12 cells. Make sure the battery
balance lead and charging lead are connected correspondingly to the charger)
12S LiPo
Adjustable charge current (1.0-12.0A)
2x16 LCD screen
Battery internal resistance meter
Firmware upgrade via USB port
Battery Type: LiPo/LiHV
Battery Cell: 12S*2
Working Mode: Fast charge / Balance charge / Storage
Size: 272*202*118.6mm
Weight: 4.88kg
Working modes (fast charge,
balance charge & storage)
O F F - L I N E
Synchronous status
(Off-line, Master, Slave)
Connect to the battery
12S LiPo
-2-
