Installation - Siemens IE FC M12 Plug PRO 4x2 Compact Operating Instructions

Table 1-3 Order numbers
Order number
6GK1901-0DB30-6AA0
6GK1 901-0DB30-6AA8
Table 1-4 Suitable for the following cable types:
Order number
6XV1878-2A
6XV1878-2B
Table 1-5 Stripping tool
Order number
6GK1901-1GA00
2

Installation

Follow these steps to assemble the IE FC M12 Plug PRO 4x2:

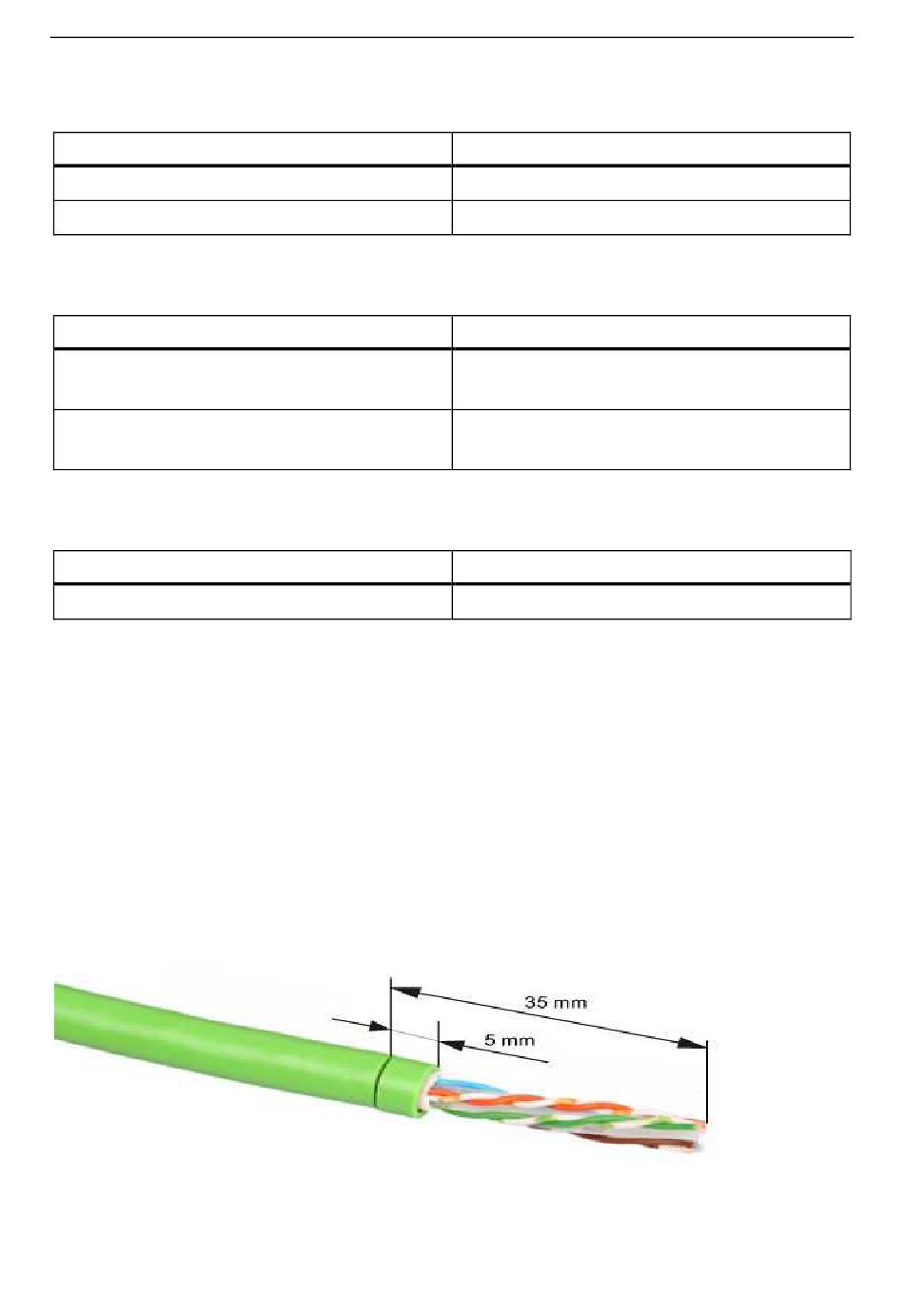

1. Strip the cable as shown in the illustration using the IE stripping tool (6GK1901-
1GA00; green knife cassette) or with a similar stripping tool with a suitable cutting
depth.
IE FC M12 Plug PRO 4x2
A5E03679115A-AC,05/2015
Number per pack
1
8
Cable type
IE FC TP standard cable GP 4x2 (24
AWG)
IE FC TP flexible cable GP 4x2 (24
AWG)
Name
Industrial Fast Ethernet Stripping Tool
Installation
13
