- Page 1 RS10 RS12 RS15 RS215 RS10M RS12M RS15M 2-way Loudspeaker Speaker Systems...
- Page 2 WARNING: To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture. To reduce the hazard of electrical shock, do not remove cover or back. No user serviceable parts inside. Please refer all servicing to qualified per- sonnel.The lightning flash with an arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...
-
Page 3: Table Of Contents
Powering the Resound Quick Set-Up Positioning the Resound Setting up your Resound Resound Wiring Guide Specifications Notes Copyright 2003, Samson Technologies Corp. Printed December, 2003 Samson Technologies Corp. 575 Underhill Blvd. P.O. Box 9031 Syosset, NY 11791-9031 Phone: 1-800-3-SAMSON (1-800-372-6766) Fax: 516-364-3888 www.samsontech.com... -
Page 4: Introduction
Congratulations on purchasing the Samson Resound Series loudspeaker system! The Resound speaker systems by Samson takes the concept of PA systems to a new level. Whether you are using the RS10, RS12, RS15 or RS215 front-firing PA speakers for main “front of house” PA, or the RS10M, RS12M or RS15M for wedge floor monitors, the Resound series will provide clear sound with a lot of output. -
Page 5: Resound Features
For deep bass response, the Resound series utilizes custom designed, heavy-duty, low-frequency drive units. The RS10 and RS10M feature a 10-inch woofer, while the RS12 and RS12M employ a 12-inch woofer, and 15- inch low frequency drivers are used in the RS15, RS215 and RS15M . -
Page 6: Resound Components
Resound Components Resound FRONT PANEL Wide Dispersion Horn – 1 inch throat, 60 x 90 degree wide dispersion horn pro- vides extensive coverage and linear, off axis response. Mylar Compression Driver – 1.75 inch (44mm), mylar diaphragm with 1 inch opening. -
Page 7: Controls And Functions
Connecting the Resound Speaker System Choosing the Correct cables The Resound series speakers connections are made via the rear panel 1/4-inch and/or Neutrik Speakon® con- nectors. Standard unshielded speaker wire, available at your local pro audio or music store, with either 1/4-inch phone or Speakon connectors and wire gauge of 12-14 is recommended. -
Page 8: Quick Set-Up
Quick Set-Up In the following pages of this manual you will find a detailed explanation of system set-ups, but if you just want to get started quickly, you can follow the diagram and steps below to set up a basic stereo PA system. -
Page 9: Positioning The Resound
25 DEGREES 30 DEGREES amplifier. In many instances when using the Resound as a monitor system, you may choose to use an external equalizer like the Samson S Curve 131 to increase the volume and reduce the chance of feedback. -
Page 10: Setting Up Your Resound
Setting Up Your Resound System... -
Page 11: Resound Wiring Guide
The Resound provides both Speakon and 1/4” phone connectors for easy interface with industry standard cables. You can use a variety of standard speaker cables that are available “off the shelf” at your local pro-audio or musical instrument retailer. Be sure that cables use standard, stranded speaker wire. A 12-14 gauge is recom- mended. -
Page 12: Specifications

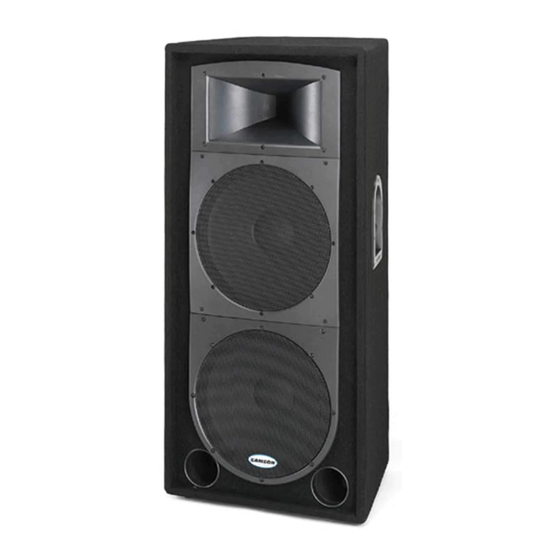

RESOUND Specifications RS215 Power Rating (@ 8Ω): 350 Watts RMS, 600 Watts Program Nominal Impedance: 4 Ohms Frequency Response: 35 Hz – 20 kHz ± 3 dB Sensitivity: 101 dB SPL @ 1W/1m MAX SPL: 128dB LF Driver: 2 x 15-inch heavy-duty driver HF Driver: 1-inch exit, 44mm Mylar diaphragm compression driver... - Page 13 RS10 Power Rating (@ 8Ω): 125 Watts RMS, 220 Watts Program Nominal Impedance: 8 Ohms Frequency Response: 60 Hz – 20 kHz ± 3 dB Sensitivity: 95 dB SPL @ 1W/1m MAX SPL: 115dB LF Driver: 10-inch heavy-duty driver HF Driver:...
-
Page 14: Notes
Notes... - Page 16 Samson Technologies Corp. 575 Underhill Blvd. P.O. Box 9031 Syosset, NY 11791-9031 Phone: 1-800-3-SAMSON (1-800-372-6766) Fax: 516-364-3888 www.samsontech.com...
