Sample Connections: Viessmann Semaphore Signals
1. Digital Operation of Viessmann Semaphore Signals with
one Drive Unit (e.g. 4400, 4401, 4405, 4500, 4501, 4505, 4900

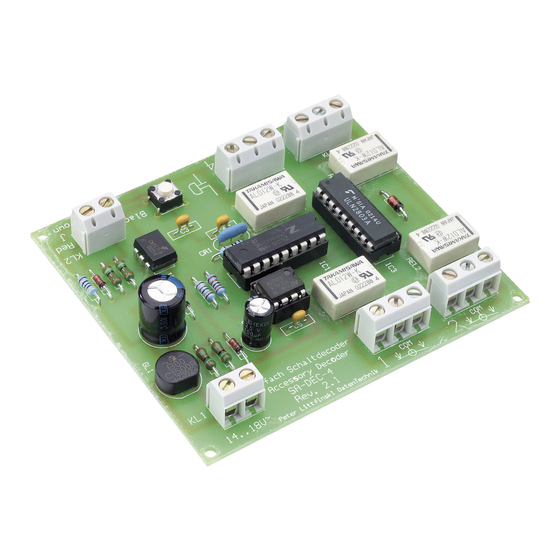

Viessmann Semaphore Signals with one drive unit can be operated either via the LDT-Turnout
Decoder S-DEC-4 or the Switch Decoder SA-DEC-4. One signal can be digital controlled by
each output. The following sample connections will show the function.

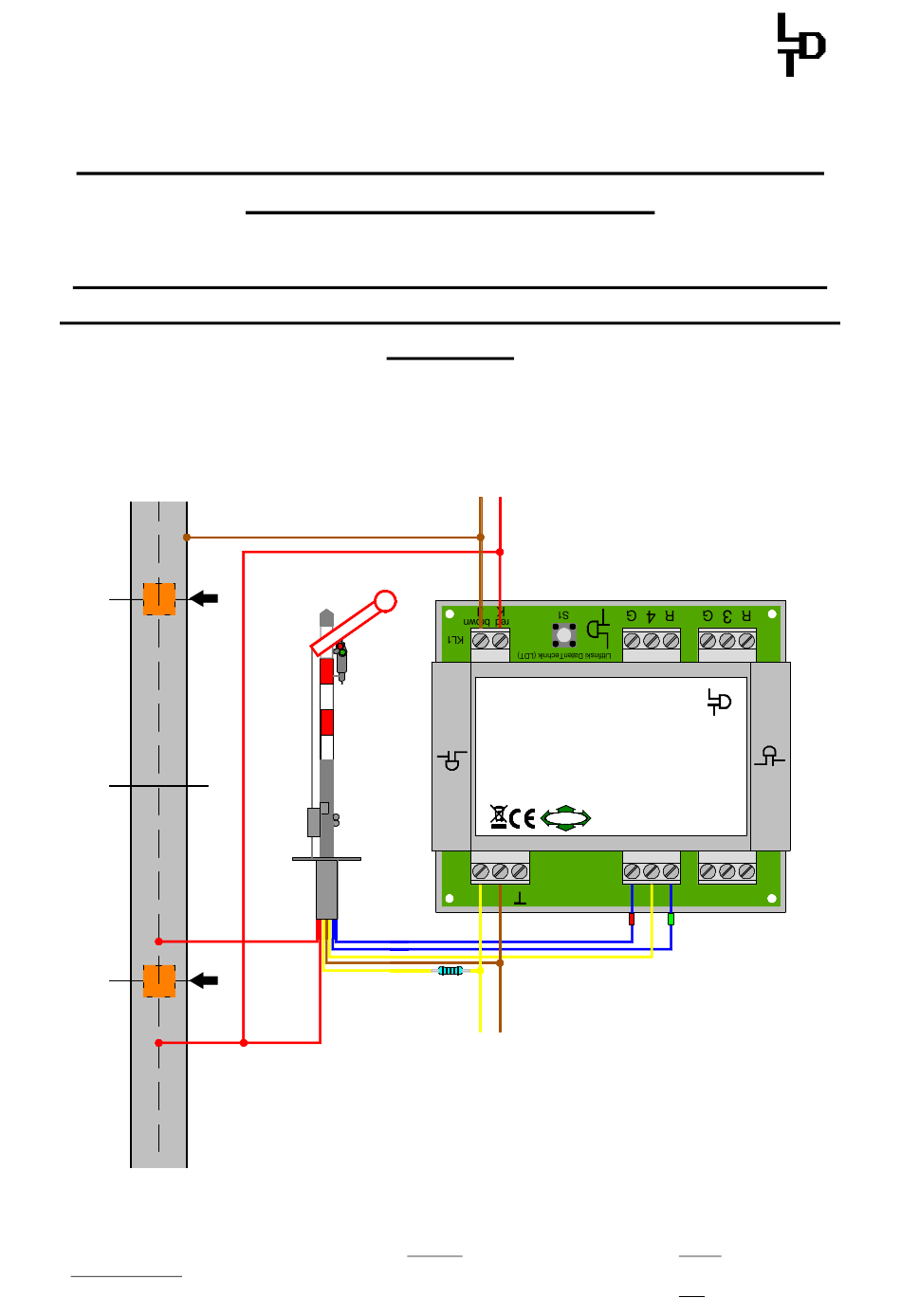

Semaphore Signal with one drive unit connected to the Turnout Decoder S-DEC-4-MM or S-DEC-4-DC
