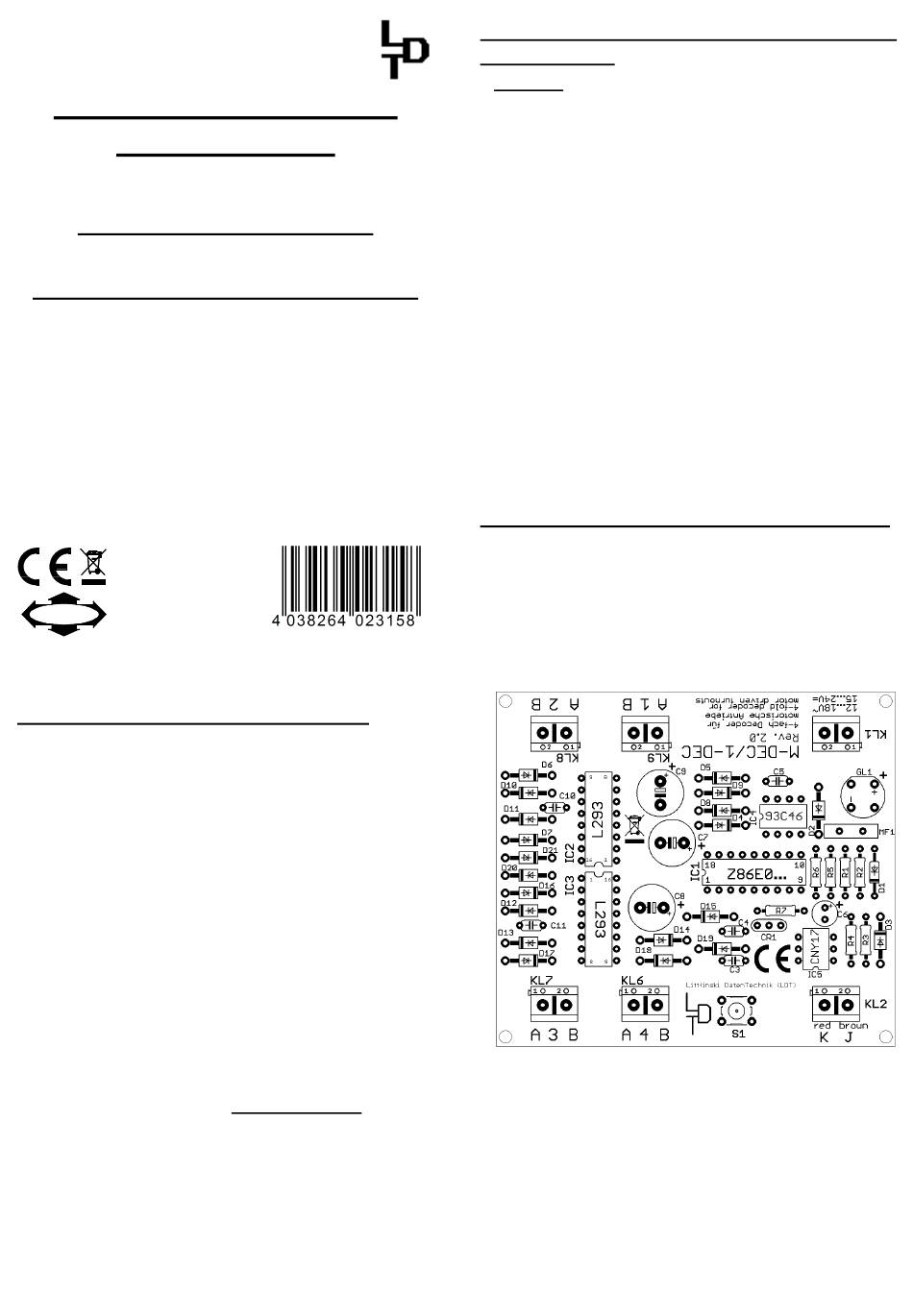

L
D
T
ittfinski
aten
echnik (
Operating Instruction
4-fold decoder for motor
driven turnouts
with external power supply possibility
from the Digital-Professional-Series !
M-DEC-MM-F
>> finished module <<
Suitable for the Märklin-Motorola-Format:
(e.g. Märklin-Digital∼ [ Control Unit, Central Station 1
and 2], Intellibox, EasyControl, ECoS, KeyCom-MM,
DiCoStation EDiTS, EDiTS pro and others)
For the digital control of :
⇒ Up to four turnout motor drives.
(e.g. drives from Fulgurex, Pilz or Hoffmann/Conrad)
Motor current per output up to 1A.
⇒
This product is not a toy! Not suitable for children under 14 years of age!
The kit contains small parts, which should be kept away from children under 3!
Improper use will imply danger of injuring due to sharp edges and tips! Please store
this instruction carefully.
CE Part-No.:
24 00 04
Multi-Digital
red point
Introduction/Safety instruction:

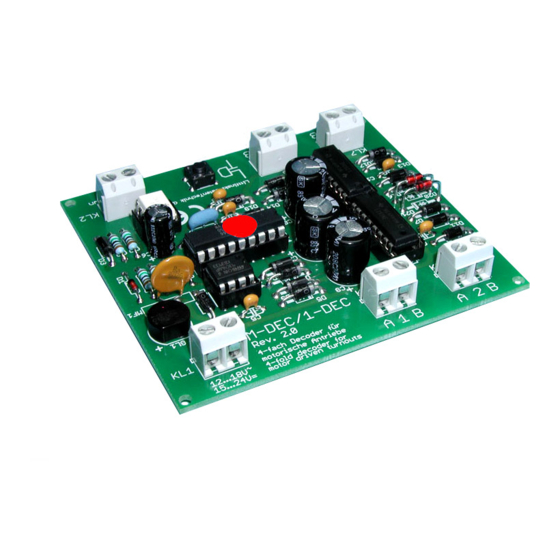

You have purchased the 4-fold decoder M-DEC-MM for motor
driven turnouts for your model railway as a kit or as finished
module. The M-DEC-MM is a high quality product that is supplied
Digital-Professional-Series
from the
(LDT).
We wish you having a good time using this product.
The decoder M-DEC of the
easily installed and used on your digital railway.
The colored dot on the receiver device indicates to which
digital system the decoder can be adapted.
In case the receiver device is marked blue the M-DEC will be
suitable for the DCC Data format, used for instance at the
systems of Arnold-Digital, Intellibox, Lenz-Digital Plus, Roco-
Digital, TWIN-CENTER, Digitrax, LGB-Digital, Zimo, Märklin-
Digital=, EasyControl, KeyCom-DC, ECoS and DiCoStation.
In case the receiver device is marked red the decoder is
suitable for Märklin-Digital~ respectively for Märklin-Motorola
layouts.
The finished module comes with 24 month warranty.
• Please read the following instructions carefully. Warranty will
expire due to damages caused by disregarding the operating
instructions. LDT will also be not liable for any consequential
damages caused by improper use or installation.
LDT
)
410512
Part-No.:
of Littfinski DatenTechnik
Digital-Professional-Series
Connecting the decoder to your digital model
railway layout:
• Attention: Before starting any installation work switch off
the supply voltage to the digital installation by disconnect
all transformer power plugs of the main supply.
The decoder receives the digital information via the clamp KL2.
Connect the clamp with a rail or even better connect the clamp
directly to the command station or to a booster assuring
supply of digital information free from any interference.
Pay attention to the mark at clamp KL2. The color markings
'Black/Schwarz' and 'Red/Rot' next to the clamp are used for
Arnold-Digital (old) and Märklin-Digital=.
Other systems uses the letters 'J' and 'K'.
If you use the decoder with Märklin Digital~ components or
with Intellibox you have to connect the digital wires to 'red/rot'
and 'brown/braun'.
The decoder receives the power supply via the two poles clamp
KL1. Voltage in the range of 12 to 18V~ is acceptable (alternate
current output of a model railway transformer) or 15...24 V=
(direct current from a switched mode power supply).
If you do not want to supply power to the decoder M-DEC from
an external transformer you can connect the clamp KL1 to
KL2 with two wires. In this case the decoder will get the power
supply complete from the digital system.
Programming the decoder address:
To program the decoder address a motor driven turnout has to
be connected to the output 1 (clamp KL9) of the decoder.
•
Switch on the power supply of your model railway.
•
Depress the programming key S1. Do not touch the
integrated circuits of the pc-board because any electrostatic
discharge can destroy the IC`s.
can be
•
The turnout drive connected to output 1 will now move a little
every 1.5 seconds. This indicates that the decoder is in the
programming mode.
•
Is the motor not moving it is possible that the motor drive
contains directional diodes. In this case switch off the power
supply and turn around the two connection wires on output 1.
After switching power on the turnout drive should move of a
1.5 second interval.
•
Depress now one key of the key group to be assigned to the
decoder. For programming the decoder address you can also
release a turnout switch signal via a personal computer.
