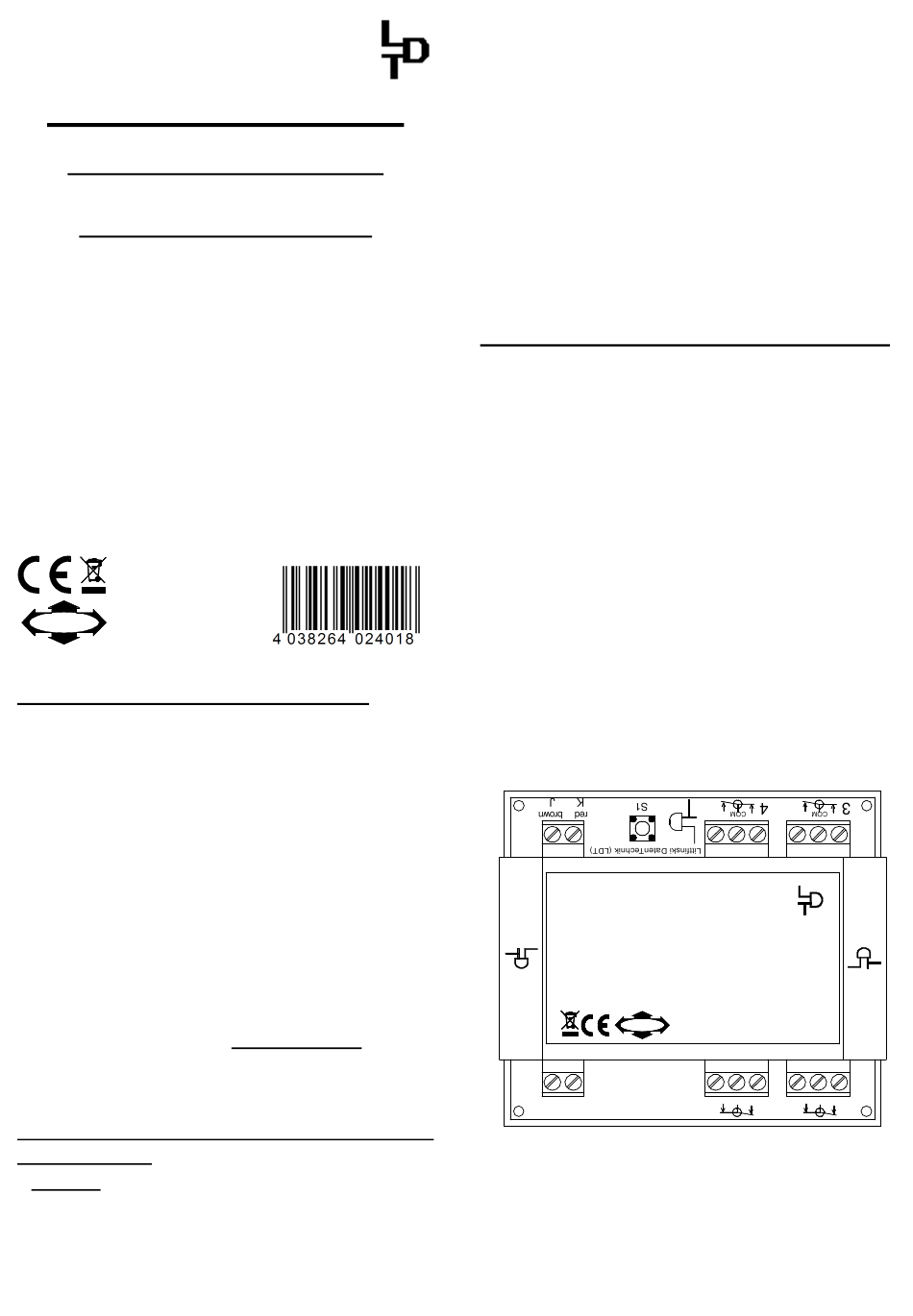

LDT SA-DEC-4-DC-G Operating Instruction

L D T
ittfinski aten echnik (
Operating Instruction
4-fold switch decoder
from the Digital-Professional-Series !
SA-DEC-4-DC-G
>> finished module in a case <<
Compatible to the DCC-Format:
(e.g. Lenz Digital Plus, Arnold-, Märklin-Digital=, Intellibox,
TWIN-CENTER, Roco-Digital, EasyControl, ECoS,
KeyCom-DC, Digitrax, DiCoStation, Zimo and others)
(switching via Lokmaus 2® and R3® is possible)
For digital control of:
⇒ consumers up to 4 Ampere on each output
(e.g. illumination, switching track sections voltage free).
⇒ jammed turnout- and signal drives
(drives with integrated end switch).
This product is not a toy! Not suitable for children under 14 years of age!
The kit contains small parts, which should be kept away from children under 3!
Improper use will imply danger of injuring due to sharp edges and tips! Please store
this instruction carefully.
Multi-Digital
Introduction/Safety instruction:
You have purchased the 4-fold switch decoder SA-DEC-4 for
your model railway supplied within the assortment of
Littfinski DatenTechnik (LDT).
We are wishing you having a good time using this product.
The SA-DEC-4-DC is suitable for the DCC Data format, used for
instance at the systems of Lenz-Digital Plus, Arnold-, Märklin-
Digital=, Intellibox,
EasyControl, ECoS, KeyCom-DC, Digitrax, DiCoStation and
Zimo.
The decoder SA-DEC-4-DC can not only switch turnouts via the
turnout addresses but also responds to loc-addresses.
Therefore is it possible to switch consumers with the keys F1 to
F4 of the Lokmaus 2® or 3®.
The decoder SA-DEC-4-DC is multi digital and can be installed
to the Intellibox and on the TWIN-CENTER without any
problems.
The finished module comes with 24 month warranty.
Please read the following instructions carefully. Warranty will
expire due to damages caused by disregarding the operating
instructions. LDT will also be not liable for any consequential.
Connecting the decoder to your digital model
railway layout:
• Attention: Before starting the installation switch off the
drive voltage by pushing the stop button or disconnect the
main supply.
The decoder receives the digital information via the clamp KL2.
Connect the clamp directly to the command station or to a
booster assuring supply of digital information free from any
interference.
LDT
)
210213
Part-No.:
TWIN-CENTER, Roco-Digital,
The DCC-Digital-Systems uses different color codes respectively
indications for the two digital cables. Those markings are
indicated next to the clamp KL2. These markings have not
necessarily to be maintained correct as the decoder converts the
signal automatically to be correct.
The decoder receives the power supply via clamp KL1. Voltage
in the range of 12 to 18V~ is acceptable (alternate current output
of a model railway transformer).
If you do not want to supply power to the decoder SA-DEC-4
separately from an external transformer you can connect the
clamp KL1 to KL2 with two wires. In this case the decoder will
get the power supply complete from the digital system.
Now connect the consumers (e.g. illumination, motors or turnout-
and signal coils with end-switch) to the outputs 1 to 4. The clamp
marked 'COM' is the common connection for the respective
switch-over contact.
Programming the decoder address:
For programming the decoder address you can connect a
consumer to the output 1. As it is possible to hear the switching
of the bistable relay the connection of a consumer is not
mandatory.
•
Switch on the power supply of your model rail way.
•
Adjust the speed of all connected speed controller to zero.
•
Press the programming key S1.
•
The relay connected to output 1 will now automatically switch-
over every 1.5 seconds. This indicates that the decoder is in
the programming mode.
•
Switch now one turnout of a group of four assigned to the
decoder via the keyboard of the control unit or via a remote
control unit. For programming the decoder address you can
also release a turnout switch signal via a PC-software.
Remarks: The decoder addresses for magnet accessories
are combined in groups of four. The address 1 to 4 build the
first group. The address 5 to 8 build the second group etc.
Each SA-DEC-4-DC decoder can be assigned to any of these
groups. Which of the 4 turnouts of a group will be activated
for the addressing does not matter.

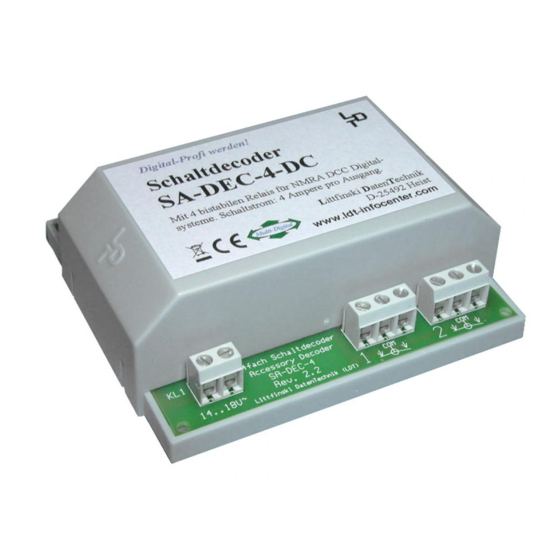

Digital-Profi werden!
Schaltdecoder
SA-DEC-4-DC
Mit 4 bistabilen Relais für DCC Digitalsysteme.
Schaltstrom: 4 Ampere pro Ausgang.
Multi-Digital
4-fach Schaltdecoder
KL1
4-fold Switch Decoder
SA-DEC-4
12 ...18V~
Rev. 2.4
15 ... 24V=
If the decoder has recognized the assignment correctly the
•
relay will move a little faster. Afterwards the movement slows
down to the initial 1.5 seconds interval again.
•
Leave the programming
programming key S1 again. The decoder address is now
permanently stored but can be changed at any time by
repeating the programming as described above.
Littfinski DatenTechnik (LDT)
www.ldt-infocenter.com
COM COM
1 2
mode by depressing the
