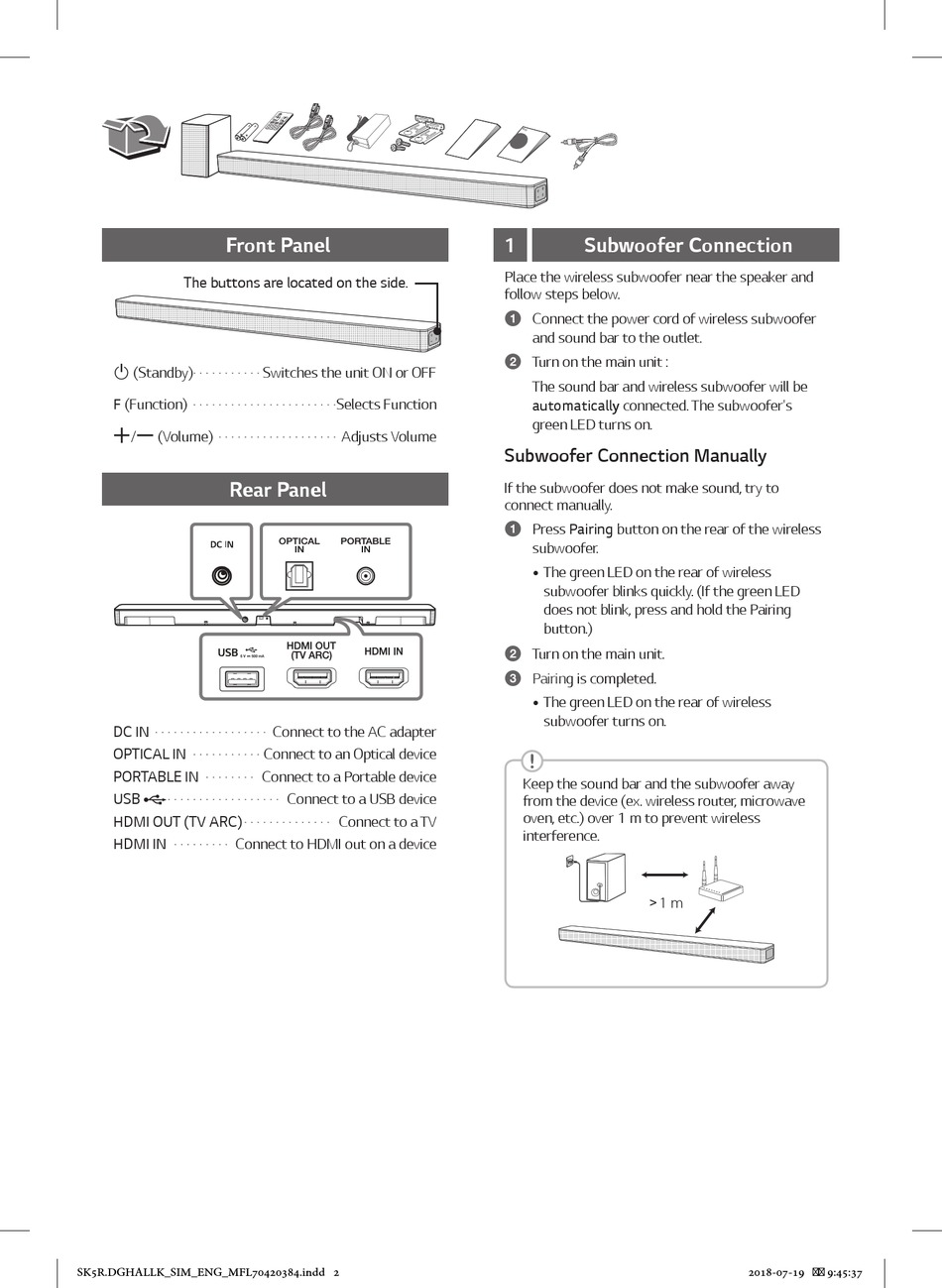

Front Panel

The buttons are located on the side.
1
(Standby) · · · · · · · · · · ·
F (Function)
· · · · · · · · · · · · · · · · · · · · · · ·
o/p (Volume)
· · · · · · · · · · · · · · · · · · ·

Rear Panel

DC IN
· · · · · · · · · · · · · · · · · ·
OPTICAL IN
· · · · · · · · · · ·
PORTABLE IN
· · · · · · · ·
USB
· · · · · · · · · · · · · · · · · ·
HDMI OUT (TV ARC)
· · · · · · · · · · · · · ·
HDMI IN
· · · · · · · · ·
Connect to HDMI out on a device
SK5R.DGHALLK_SIM_ENG_MFL70420384.indd 2
Switches the unit ON or OFF
S elects Function
Adjusts Volume
Connect to the AC adapter
Connect to an Optical device
Connect to a Portable device
Connect to a USB device
Connect to a TV
1

Subwoofer Connection

Place the wireless subwoofer near the speaker and
follow steps below.
a
Connect the power cord of wireless subwoofer
and sound bar to the outlet.
b
Turn on the main unit :
The sound bar and wireless subwoofer will be
automatically connected. The subwoofer's
green LED turns on.
Subwoofer Connection Manually
If the subwoofer does not make sound, try to
connect manually.
a
Press Pairing button on the rear of the wireless
subwoofer.
y The green LED on the rear of wireless
subwoofer blinks quickly. (If the green LED
does not blink, press and hold the Pairing
button.)
b
Turn on the main unit.
c
Pairing is completed.
y The green LED on the rear of wireless
subwoofer turns on.
Keep the sound bar and the subwoofer away
from the device (ex. wireless router, microwave
oven, etc.) over 1 m to prevent wireless
interference.
1 m
