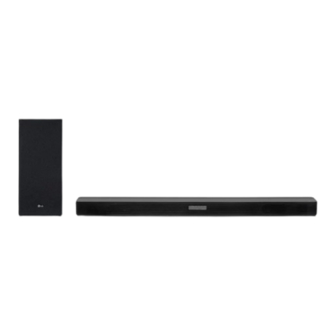

LG SKM5Y Owner's Manual

Wireless sound bar
Hide thumbs Also See for SKM5Y:
Table of Contents

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
Wireless
Sound Bar
Please read this manual carefully before operating
your set and retain it for future reference.
MODEL
SKM5Y (SKM5Y, SPK5B-W)
www.lg.com
Copyright © 2019 LG Electronics Inc. All Rights Reserved.
